Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2500
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100set/month
Delivery Time :
30 working days
Packaging Details :
Plastic Packaging
Condition :
New
Automatic grade :
Automatic
Warranty :
1 Year
Link paper speed :
250m/min
Working wide :
2500mm
Usage :
Making Corrugated Cardboard
Product name :
High-speed automatic splicers
Function :
to produce the corrugated paperboard
Color :
Customized Color
Description

Width 2500mm High-speed automatic splicers for Corrugated Cardboard Production Line

Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line

Structural feature

★The maximum diameter of the applicable paper:1500mm.

★With the automatic tension control of the original paper holder, the paper can be picked up at high speed and the success rate is high.

★No tail paper receiving, reducing paper consumption (only partially overlapping paper tape with a width of 40mm).

★When paper car take out, the automatic turn out, and the vacuum adsorption, easy paper loading, automatic tension control paper receiving zero turnovers.

★All PLC automatic control, accurate, less failure, easy maintenance.

★The first round of the buffer when you pull the paper, automatic alignment, easy to pull paper.

★Machine superiority cylinder control speed splicers paper receiving moment does not appear normal motor control of rubble, blistering.

★Paper receiving highest speed of 250 m / min.

Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line

Brand Name
YIKE GROUP
Voltage
220V
Dimension(L*W*H)
Lmx4.3*Wmx1.8*Hmx1.6
Product name

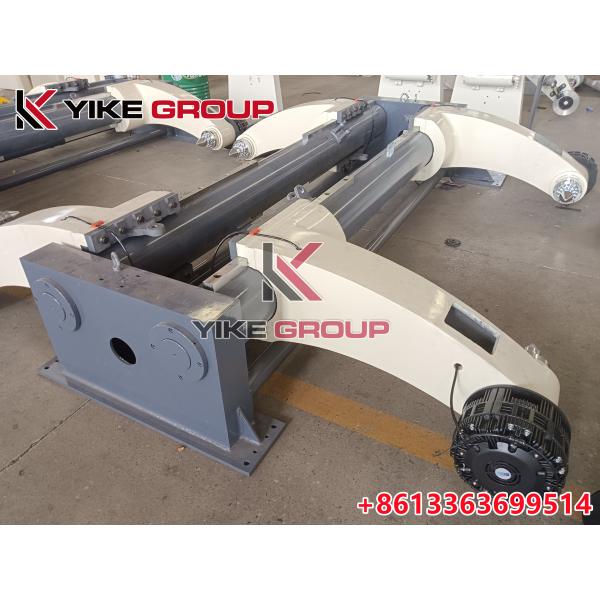

2500mm Hydraulic mill roll stand
the range of clamping paper
max 2500mm MIN800mm
clamping diameters
MAX1600mm MIN 350mm
Unilateral maximum load
the max.5000Kg
Paper holder spindle diameter
270mm
Working air pressure(Mpa)
0.4---0.8Mpa
working power
voltage 380V frequency 50Hz
Working pressure (Mpa)
16---18Mpa
Rated voltage and frequency
380V 50Hz
Hydraulic station motor power
4KW short (S2)working system

Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line

A,Mainly purchased parts, raw materials and origin:

Serial number Name of main parts Brands or place of origin Remarks
01 Breaker Schneider
02 Contactor Schneider
03 Relay Schneider
04 Left and right conversion solenoid valve Japan SMC
05 Precision pressure regulator Japan SMC
06 Electric proportional valve Japan SMC
07 Speed increase relay Japan SMC
08 Filter Japan SMC
09 Wire rope American Smurfs Aviation equipment
10 Sealing ring American Parker
11 Proximity switch Omron Japan
12 PLC Taiwan Delta
13 Geared motor Taiwan Takasaki
14 The electromagnetic valve TaiWan AirTAC
15 Cylinder STNC

Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line

Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line

Auto Corrugated Cardboard Production Line

Width 2500mm High-Speed Automatic Splicers For Corrugated Cardboard Production Line
