Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1200X2400mm
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD 15800/set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200set/month
Delivery Time :
30 working days
Packaging Details :
Plastic Packaging
Product name :
Automatic Folder Gluer Machine
Speed :
180m/min
Usage :
Making Carton
Condition :
New
Packaging type :
Cartons
Voltage :
220v/380v/440v
Automatic grade :
Automatic
Description

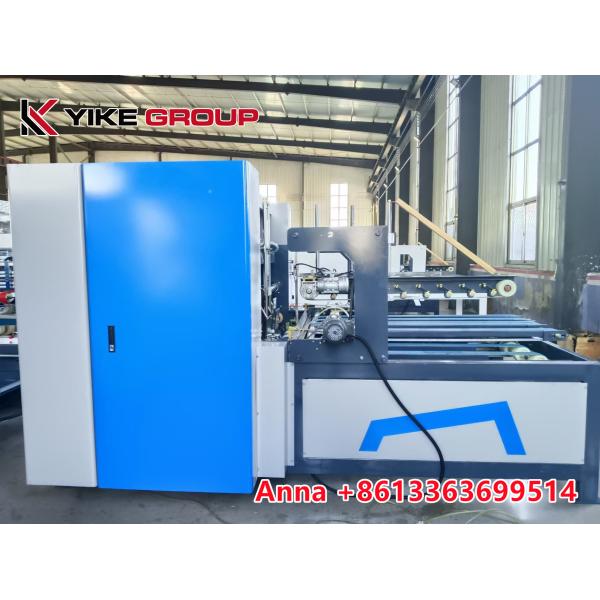

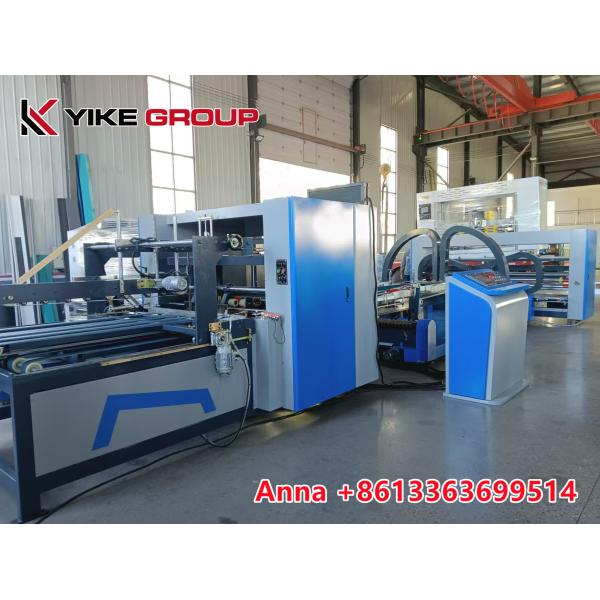

Automatic Corrugated Carton Box Folder Gluer Machine

High Speed Automatic Corrugated Carton Box Folder Gluer Machine


Feeding unit
1.The vacuum suction feeding system is good at adapting the curved paperboard
2.Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.
3.The paperboard width adjustment unit is made of high quality steel, so as to adjusting the machine width conveniently in order to adapt to the different size of carton box.


High Speed Automatic Corrugated Carton Box Folder Gluer Machine


※Folding and gluing unit

A. 1.The glue quantity is controlled by imported high quality and stability motor, which is low noise

B. 2.The gluing roll is made of stainless steel, which is easy for cleaning, the gluing is even and saves its volume.

C. 3.The transmission belt of folding unit is made of imported wear proof rubber belt, guarantee a long life time and makes the cardboard folding precisely

High Speed Automatic Corrugated Carton Box Folder Gluer Machine


※COUNTER AND Stacker unit

A. Correct part of the native characteristic, has a unique device, the most advanced coaxial is not synchronized, from each according to his ability, good rectifying. With double speed correction device, make the carton eliminate scissors mouth, good shape, size control.

B. Adopt PLC programmable controller and touch screen, digital controls. Response rapid, accurate and reliable, easy to operate.

C. Count and launch adopts pneumatic method, reliable, accurate and fast.
D. Pressing output using suspension conveying device, can accommodate more than 200 carton, the carton can be under pressure for a long time. It not only ensure the cartons sticky mouth bonding strength, and effectively improve the compressive degree of the carton, the carton appearance more beautiful.


High Speed Automatic Corrugated Carton Box Folder Gluer Machine

Specification:

ModelYK-1224
Max. Cardboard1200*2400mm
Mini. Cardboard170*500mm
Diemensions15500×3000×1600mm
Power required12 kw
Speed150-200 Pcs/min
Voltage220V/380V/415V

High Speed Automatic Corrugated Carton Box Folder Gluer Machine


High Speed Automatic Corrugated Carton Box Folder Gluer Machine
High Speed Automatic Corrugated Carton Box Folder Gluer Machine
High Speed Automatic Corrugated Carton Box Folder Gluer Machine
FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
