Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-KSD, YK-HSD
Certification :
ISO,CE
Place of Origin :
China
MOQ :
30 Meters for Production Line
Payment Terms :
L/C, T/T
Supply Ability :
5000 Meters per Month
Delivery Time :
20 Days After The Payment
Packaging Details :
Standard Packages
Name :
High Speed Corrugated Board Conveyor Belt
Size :
Customized
Used for :
Carton Production Line
Application :
Carton Box Corrugator Machine
Speed :
100-300m/min
Suitable for :
Top and Bottom Belt
Description

CHINA YIKE GROUP CO.,LTD

WEB: www.yikegroup.net

Email: info@yikegroup.net

WhatsApp: +86 17743859771


Corrugated Cardboard Production Line Corrugator Belt, High Speed Corrugated Board Conveyor Belt


Features


·5-layer woven fabric
·Composition of cotton, synthetic and IFDY
·High moisture absorption and release; Low noise and high speed
·Woven structure, anti-skidding


Type


Normal High speed corrugator belt & High speed corrugator belt with Kevlar edge

1) YK-KSD --- Reinforced Edges Kevlar armored on both edges
-----------------------------------------------------------
Width: 1400-3200mm
Speed: 100-300m/min
Kevlar edge: 100-200mm
Suitable for: Top and Bottom Belt
Change cardboards width frequently , or hotter plates.

2) YK-GSD --- High Speed Corrugator Belt
-----------------------------------------------------------
Fast absorb & release moisture, durable.
Universal application.


Specification

Corrugator Belt
Model YK-KSD YK-HSD
Material 100% PET SYNTHETICS
Speed 100-300m/min
Weight 7.6+0.2kg/m2
Thicknss 8-9mm
Width 1400-3200mm
Heat resistance 240℃(Kevlar 350℃) 240
Tension 65MPA
Air.permeability 2.0M3/M2MIN
Min.winding radius R70(mm)
Life 40-50 MILLION METER


Accessories

  • Roller Lacer, Fasteners and After sales service for Corrugator belts lacing
  • Roller Lacers Available in width: 12’’ (300mm) 24’’ (600mm) 36” (900mm)48” (1200mm) 60” (1500mm)

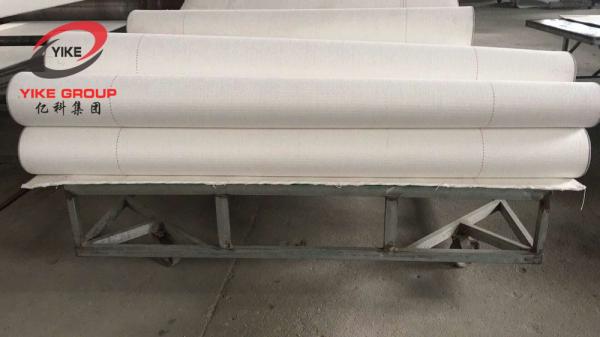

100% Real Photos
