Specification

ZJ-F Electric shaftless mill roll stand

• Structural features:

• Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

• each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.
• manual dics brake,add screw following
• electric elements centralized control the electric elements,expand chuck.

• Technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1600mm minimum:600mm

3,the diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

• Mainly purchased parts, raw materials and origin:

ZJ-V5B Hydraulic shaftless mill roll stand (Option)

• Structural feature:

• Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
• Brake adjustable adopts multipoint braking system.
• Every stand matched two sets paper car , and they can paper on the both sides at the same time.

• Technical parameters:

1,the range of clamping paper:MAX1600mm MIN1000mm 2,clamping diameters:MAX￠1500mm MIN￠350mm

3,main shaft diameter of paper holder:￠242mm 4,gas source work pressure(Mpa):0.4---0.8Mpa

5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6 6,single weight:MAX4000Kg

• Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa 2,lifting hydraulic cylinder:￠100×440mm

3,Clamping hydraulic cylinder:￠63×1300m 4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

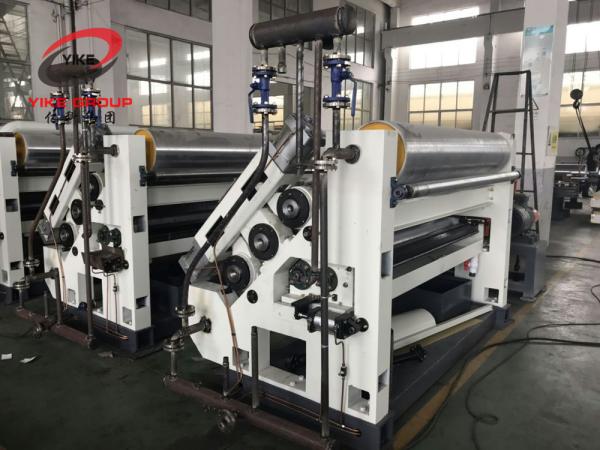

SF-280S Fingerless type single facer

• Regular technical parameters:

1,effective width:1800mm

2,operation direction:left or right(determined in accordance with customer plant)

3,design speed:100m/min working speed:40m/min

4,temperature range:200—260℃

5,corrugated flute:(UV type or UVV type)

• Roller diameters parameters:

1,diameter of corrugated roller: ￠280mm

2,diameter of pressure roller: ￠284mm

3,diameter of glue roller: ￠216mm

4,diameter of preheat roller: ￠320mm

• Powered motor parameters:

1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

NC Computer sheet cutter machine

• General technical parameters:
• Working width:1600mm
• Mechanical speed:60m/min
• Minimum cut length:300mm
• Maximum cutting length:9000mm
• Cutting accuracy: uniform speed ±1.5mm

Rotary paper receiving machine

• The machine receiving the highest speed 70m / min.
• The maximum length of the machine to receive paper 1600mm.
• The machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.
• The maximum stacking height of the local stacking unit is 100mm.
• The automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.
