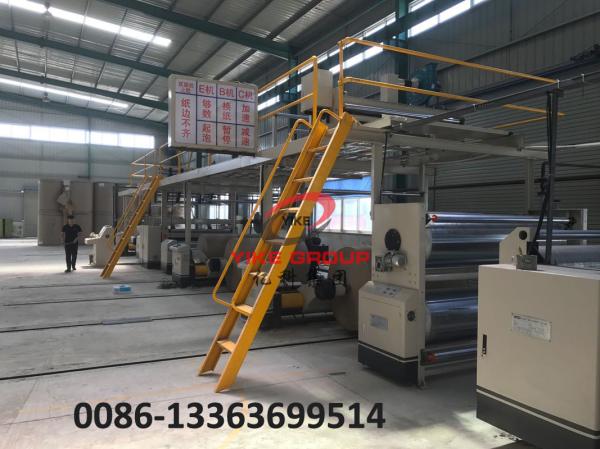

Single Faced Corrugated Carton Machine, Corrugated Cardboard Machine

1.Technological Parameters :

2.Mill roll stand Main Feature:

1. Symmetrical structure can be installed at the same time two bundle, fasten non-stop change paper assignments; The mechanical drive to complete base paper clamping, lift, loosen, mobile for translation around such action.

2. Single side carrying capability: 2000kg.

3. Each machine without shaft with stents to deliver the paper guide two, two sets of paper on car; Guide the number 14 channels and the guide posts on the paper, welding car 10 mm steel soldering.

4. Manual disc brakes, and limit the disk screw

5. Electric components centralized control, automatic abscesses type card head.

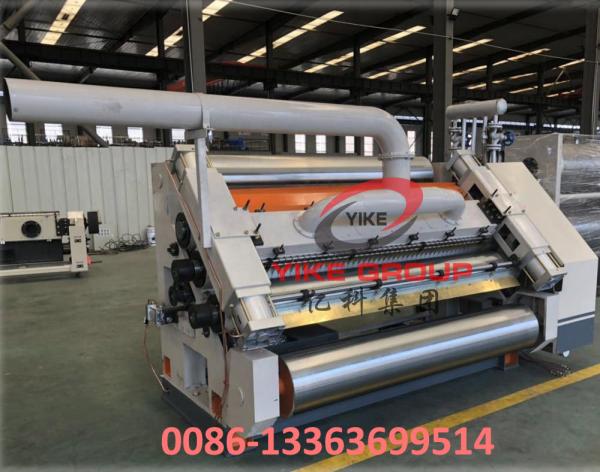

3.Single facer Main Feature:

1. The suction type structure, deserve to cover high pressure powerful fan. After the wind, the air source device with censored and electrical control on the same operation counters, the distance from the host machine will not less than 1.5 meters, operating side closed all the hood.

2. Base and wallboard cast iron structure, wallboard thick 200 mm. Independent transmission, universal joint transmission.

3. Corrugated roller adopt 52 CrMo alloy steel, the conditioning, laser quenching, surface polishing, corrugated roller diameter 320 mm Lord ¢, surface hardness HRC60 degrees. Key parts tile roller, pressure roller bearing used in wafangdian bearing resistance to high temperature.

4. Pressure roller ¢324 mm, surface grinding and chrome treatment; Cylinder control to move up and down, materials for 45, medium-carbon steel quenching and tempering treatment (with buffer device).

5. Glue wallboard board structure, pneumatic control back to glue, glue rubber roller surface 25 pits processing line network hard chromium plating processing, scraping the plastic roller surface is hard chromium plating processing grinding

6. Corrugated roller, pressure roller by the special steel, raw materials provide corrugated roller unilateral 0.15 mm high, pressure roller on unilateral 0.075 mm high. Add spacing device.

7. Pressure cylinder ¢160 mm in the cylinder.

8. Preheat roller day in steel seamless steel tube ¢325 mm, all with metal hose connection.

4.Cutter Main Feature:

1. Should the mechanical structure reasonable, strong rigidity, good stability, long service life.

2.Should all on the same side operation control, easy to operate, photoelectric counting.

3.Graduate from professional paper cutting the longitudinal cutting knife, the scope of four 400 mm to 2400 mm crosscut.

4.Graduate from professional paper cutting accuracy + 2.5 mm.

5.Our services:

1) All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance services and supply of parts and components at cost price.

2)The equipments will be delivered accompanied with detailed installation and operation manual and related information.
