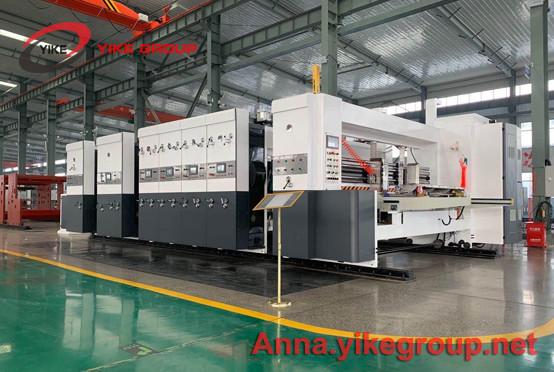

YKHD-1224 High defination fully automatic 6 Colors Flexo Printer Slotter Die Cutter Machine
YKHD-1224 High defination fully automatic 6 Colors Flexo Printer Slotter Die Cutter Machine
YKHD-1224 High defination fully automatic 6 Colors Flexo Printer Slotter Die Cutter Machine
YKHD-1224 High defination fully automatic 6 Colors Flexo Printer Slotter Die Cutter Machine
Specifications
Brand Name :
YIKE GROUP
Model Number :
YKHD-1224
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3Sets /per Month
Delivery Time :
3-4 months
Packaging Details :
PLASTIC FILM WRAP
name :
printer slotter machine
origin :
China
model :
YKHD-1224
brand :
YIKE GROUP
Description

Detailed Product Description

Type:: Box Printing Machine Plate Type:: Flexo Ink Printing
Automatic Grade:: Full-Atuomatic Function:: Printing Die Cutting Slotting
Usage:: Paper Forming Machine Box Type:: Cardboard Box

Automatic 5 Colors Flexo Printer Slotter Die Cutter High Definition For Carton Box

Product Parameter

HRB 1224 VACUUM TRANSFER HIGH DEFINITION PRINTING SLOTTING
DIE CUTTING WITH FOLDER GLUER LINE(5+1)
LEAD EDGE FEEDER 1
PRINTER/COATING (5+1) 5+1
DRY 3
SLOTTER 1
DIE CUTTER 1
GLUER LINE 1

Specification Table

Model 920 1224
Wall board thickness 60mm 60mm
Max Machine Speed(pcs/min) 300 300
Economic Working Speed(pcs/min) 250 250
Max. Feeding Size(m/m) 900 x 2000 1200x2400
Min. Feeding Size(mm) 350x600 400x650
Skip- feeding Size(mm) 1200x 2000 1400x 2400
Standard Plate Thickness(m/m) 3.9 3.9
Min. slotter distance POSITIVE 130X130X130X130 150X150X150X150
Min. slotter distance NEGATIVE 230X65X230X65 250X75X250X75
Max slotter depth(m/m) 300 300
Print precision(m/m) ±0.3 ±0.3
Slot precision(m/m) ±1.0 ±1.0
Die cut precision(m/m) ±1.0 ±1.0
Suitable Cardboard Thickness(m/m) 2-11 2-11

Product Description


1. Lead feeder with wheels feeding system, lead feeding can adjust cardboard length
according to cardboard specification.
2. Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;(made from guangdong province)
3. Frequency conversion adjustment vacuum negative pressure value, can adopt to
different cardboard specification and curved cardboard.
4. Feeding roll is made of two-layer rubber,inner layer is soft and outer
layer is hard,this makes inner layer more flexible and surface more
wear-resistant,and reduce the flute damage of the cardboard;
5. Dust remove system with brush and segmented vacuum sheets cleaner;Self-locked system adopts for adjusting feeding rolls gap,motorized and PLC control of feeder side guides;
6. Motorized backstop forward /backward and up/down position for easy and quick
adjustment;
7. Five rows brush to strengthen the force of negative pressure fan dust removal device, pipe concentrated dust collection.
1. Pneumatic clutch is adopted on the anilox roll to:Make the roll run at the same speed as the main motor when the unit is printing;Make the roll stop when the unit is not printing;Reduce the possibility of damage to the rubber roll and the anilox roll for inproper operation;Allow units which are not in use to be washed up while running.
2. Printing register is digitally controlled by motor and PLC
3. Transverse register is also digital controlled by motor and PLC ±10mm
