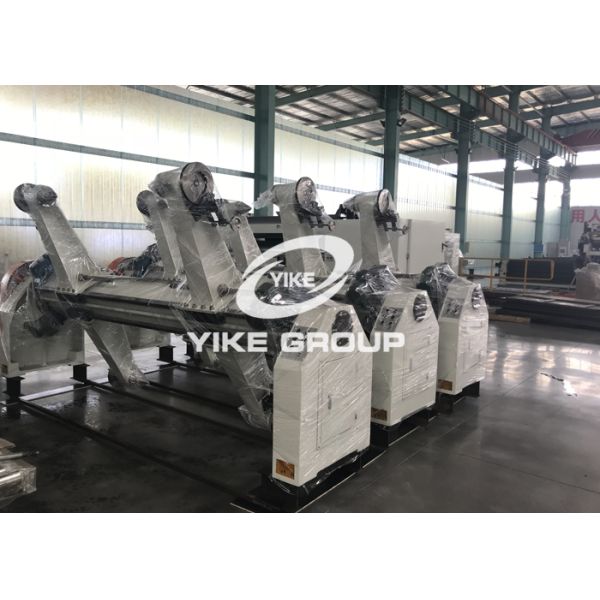

1. ZJ-V5B hydraulic shaftless mill roll stand

1. structural feature:
2. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
3. Brake adjustable adopts multipoint braking system.
4. Every stand matched two sets paper car , and they can paper on the both sides at the same time.

ZJ-F shaftless mill roll stand
1. Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2. Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.
3. Manual dics brake,add screw following
4. Electric elements centralized control the electric elements,expand chuck.

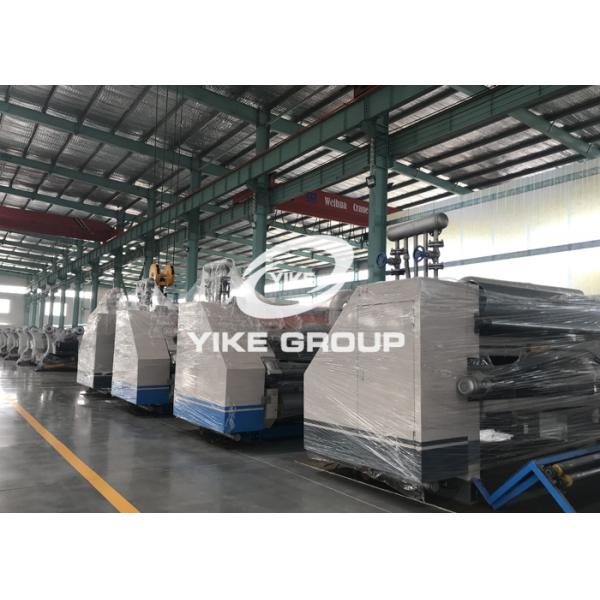

2. SF-280S fingerless type single facer
1. Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.
2. Electric heating model with 18 heating tube
3. Base and wallboard cast iron wall,Wallboard thickness130mm,universal Joints.
4. Corrugated roller material adopt 50CrMo Alloy steel
5. Pressure roller ¢ 284mm,surface grinding and chrome-plated;cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).
6. Pneumatic control glue to glue back, glue roller diameter ¢215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.
7. Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢160mm cylinder with compression cylinder.
8. Preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm, connecting with metal Hose.


3. NC-1800 computer sheet cutter machine
1. Can save 200 sets of orders, replace the cutting specifications quickly and accurately, non-stop for a single, and can achieve computer networking, easy production management.
2. Knife shaft drive gear with eccentric shaft installation, to achieve no backlash drive, high transmission accuracy.
3. Cross-cutting knife with inserts steel blade. Fixed blade blade flat structure, more stable, more suitable for cutting high weight and high toughness of cardboard, the shear force is small, long blade life.
4. Pull paper roller outsourcing non-slip material, more wear-resistant, accurate size.
5. Host base and wall panels with high-grade gray cast iron, high strength, strong anti-vibration.
6. Servo controller control motor drive, 5.7 inch color touch screen display, the project at a glance. cutting length: 300mm-9000mm, cutting accuracy: ± 1.5mm (steady speed).

4. Rotary paper receiving machine

l the machine receiving the highest speed 70m / min.

l the maximum length of the machine to receive paper 1350mm.

l the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.

l the maximum stacking height of the local stacking unit is 100mm.

l the automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.
