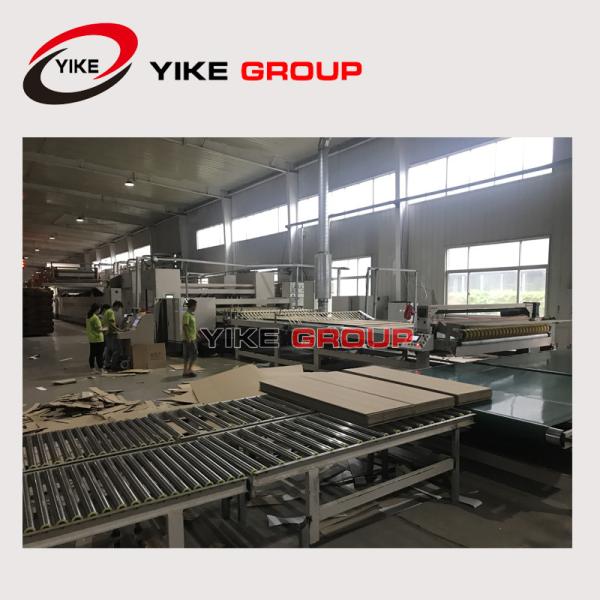

Auto 3 5 7 Ply CorrugatedCardboard Production Line With Automatic High Speed Corrugated Paper Splicer Machine
Auto 3 5 7 Ply CorrugatedCardboard Production Line With Automatic High Speed Corrugated Paper Splicer Machine
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2200
Certification :
ISO,CE
Place of Origin :
Hebei, China
MOQ :
1 Set CorrugatedCardboard Production Line
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Sets Per Month
Delivery Time :
6 Months After Deposit Of CorrugatedCardboard Production Line
Packaging Details :
Plastic Film,FCL
Driven Type :
Electric
Packaging Type :
Film, case
Automatic Grade :
Automatic CorrugatedCardboard Production Line
Voltage :
380V / 415V / 440 V / 480V
Dimension(L*W*H) :
customization
Description

Auto 3 5 7 Ply Corrugated Cardboard Production Line With Automatic High Speed Corrugated Paper Splicer Machine

main technical parameters and requirements in production line

1

Effective width

2200mm

2

Design produce speed

200m/min

3

Three layer work speed

150-180m/min

4

Five layer work speed

120-150m/min

5

Seven layer work speed

-------------------

6

The highest change single speed

100m/min

7

Longitudinal separation accuracy

±1mm

8

Cross-cutting precision

±1mm

note

Speed the above targets required to achieve:effective width2200mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.

Top paper index

100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%)

Core paper index

80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%)

In paper index

90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%)

9

Flute combination

10

Steam requirement

The maximum pressure 16kg/cm2

Common pressure10-12kg/cm2

use4000kg/Hr

11

Electricity demand

AC380V 50Hz 3PH

Total power≈300KW

Running Power≈250KW

12

Compressed air

The maximum pressure 9kg/cm2

Common pressure4-8kg/cm2

Use 1m³/min

13

space

≈Lmin91m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)

SF-360C1 fingerless type single facer

structural feature:

★Corrugated roller and pressure roller use high stability gasbag control system, also have air pressure control buffering function.

★Glue quantity control use electric adjust, glue isolation device electric, glue system can operate independently when main machine stop, to avoid glue use up.Glue tank is made of stainless steel.

★Movable type glue system, wash easily, maintenance and repair is more easy.

technical parameters:

1,effective width:2200mm 2,operate direction:left or right(Determined in accordance with the customer's facility)

3,design speed:200m/min 4,range of temperature:160—200℃

powered motor parameters:

1,main drive motor:30KW rated voltage:380V 50Hz continuous(S1)working system

2,suction motor:15KW rated voltage:380V 50Hz continuous(S1)working system

3,electric drive pusher:30W rated voltage:24V 50Hz short (S2)working system

4,adjust glue gap motor:200W*2 rated voltage:380V 50Hz short (S2)working system

5,glue pump motor: 2.2KW rated voltage:380V 50Hz continuous(S1)working system

6,frequency motor: 3.7KW rated voltage:380V 50Hz continuous(S1)working system

Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

Wallboard and base

Production by own

HT200

Main drive motor

Hebei hengshui

30KW frenquency motor

bearing

HRB,ZWZ,LYC or zhejiang direction

Bearing of corrugated roller and pressure roller adopt Timken production.

Seat belt bearing

Zhejiang wuhuan

High pressure fan

Shanghai yingfa

cylinder

Taiwan AirTac

Solenoid valve

Taiwan AirTac

traps

Beijing

Ball float type

contactor

schneider

Frenquency controller

Taiwan delta

PLC

Taiwan delta
