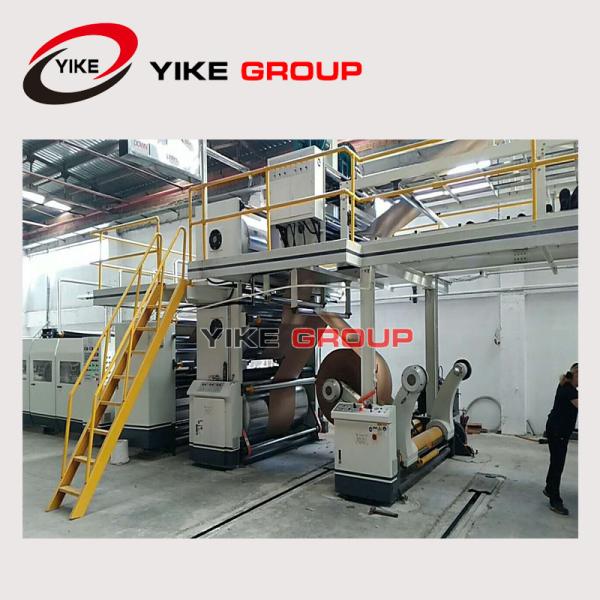

3&5&7 corrugated Cardboard Production Line Matching With 320F Single Facer
3&5&7 corrugated Cardboard Production Line Matching With 320F Single Facer
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1800
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set CorrugatedCardboard Production Line
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Sets Per Month
Delivery Time :
6 Months After Deposit Of CorrugatedCardboard Production Line
Packaging Details :
Plastic Film,FCL
Machinery Test Report :
Provided
Voltage :
380v50hz (customization)
Type :
Packaging Line
Automatic Grade :
Automatic CorrugatedCardboard Production Line
Driven Type :
Electric
Marketing Type :
New CorrugatedCardboard Production Line
Description

3&5&7 Corrugated Cardboard Production Line Matching With 320F Single Facer

main technical parameters and requirements in production line

1

Effective width

1800mm

2

Design produce speed

150m/min

3

Three layer work speed

100-140m/min

4

Five layer work speed

90-130m/min

5

Seven layer work speed

-------------------

6

The highest change single speed

100m/min

7

Longitudinal separation accuracy

±1mm

8

Cross-cutting precision

±1mm

note

Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.

Top paper index

100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%)

Core paper index

80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%)

In paper index

90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%)

9

Flute combination

10

Steam requirement

The maximum pressure 16kg/cm2

Common pressure10-12kg/cm2

use4000kg/Hr

11

Electricity demand

AC380V 50Hz 3PH

Total power≈220KW

Running Power≈150KW

12

Compressed air

The maximum pressure 9kg/cm2

Common pressure4-8kg/cm2

use1m3/min

13

space

≈Lmin70m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)

ZJ-V5B hydraulic shaftless mill roll stand

※structural feature:

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

※technical parameters:

1,the range of clamping paper:MAX1800mm MIN1000mm

2,clamping diameters:MAX￠1500mm MIN￠

350mm 3,main shaft diameter of paper holder:￠240mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

Main shaft

Day steel production

diameter242mm

Swing arm

Production by own

Resin sand gray ironHT200

wallboard

Jigang prduction

Q235AWelding parts

bearing

HRB,ZWZ,LYC

Toothed chuck

Zhejiang xusheng

3,4inch shared

Main electrical appliance

France Schneider

button

CHINT NP2series

Air switch

French Schneider

Pneumatic components

Zhejiang Sonor CSM

Hydraulic station

Shandong zaozhuang

Brake pump

zhejiang
