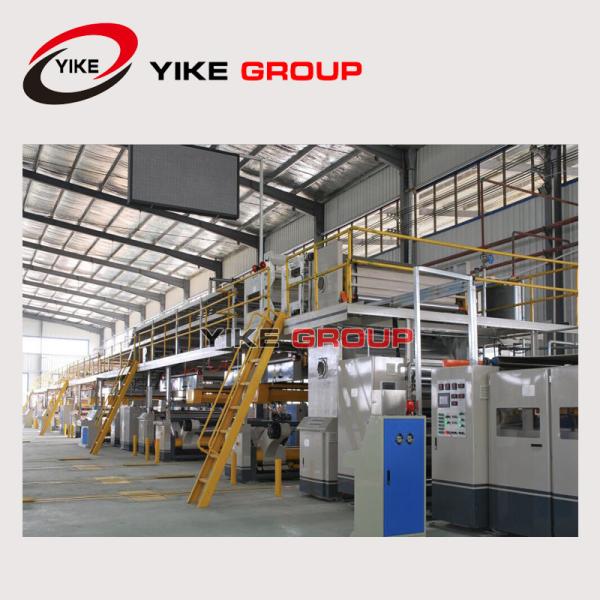

5 Ply Automatic Corrugated Cardboard Machinery Manufacturers Making Machine Production Line
5 Ply Automatic Corrugated Cardboard Machinery Manufacturers Making Machine Production Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2200
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Sets Per Month
Delivery Time :
6 Months After Deposit
Packaging Details :
Plastic Film,FCL
Width :
1600mm-2500mm
After-sales Service Provided :
Engineers Available To Service Machinery Overseas
Function :
Manking Corrugated Carboard
Speed :
100-200m/min
Condition :
New
Warranty :
1 Year
Description

5 Ply Automatic Corrugated Cardboard Machinery Manufacturers Making Machine Production Line

Main Technical Parameters And Requirements In Production Line

Type:YK-150-2200-Ⅱtype five layer corrugated paperboard production line:

Specification Equipment name UNIT QTY Remark
YV5B Hydraulic shaftless mill roll stand a 5 Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.Guide rail length 6000mm,use of plate welding.Rail length6000mm,trolley used 10mm plate welding.
Paper trolley a 10
RG-1-900 Top paper preheat cylinder a 2 roller ￠900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
RG-1-900 Core paper preheat cylinder a 2 roller ￠900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
SF-320C Fingerless type single facer a 2 Corrugated main roller ￠320mm,material with 48CrMo alloy steel,tungsten carbide dealing,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way.
RG-3-900 Triple preheater a 1 roller ￠900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
GM-20 Double glue machine a 1 Glue roller diameter 269mm.Each independent frequency motor drive, glue roller diameter 269mm.Each independent frequency motor drive,PLC adjust glue gap and HMI.
ZDF heavy type conveyor bridge set 1 200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction.
SM-F Double facer set 1 Rack 360 mm GB channel,Chrome hot plate 600 mm *16 pieces,The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor.
NCBD NCBD thin blade slitter scorer a 1 Tungsten alloy steel, five knives eight lines,zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.
NC-150 NC cutter helical knives a 1 Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
DM-XLM computer gantry automatic stacking machine a 1 Servo drive platform lifting, three section of frequency transport,automatic points stack discharge,Imported high-strength belt output, out paper side standard transport aircraft.
ZJZ Glue station system set 1 Customers -owned pipeline.Glue configuration is composed by carrier tank,main tank,storage tank,and send plastic pump,back plastic pump.
QU Gas source system a 1 Air source,pipeline is prepared by the customers.
ZQ Steam system set 1 Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.traps,pressure table and so on.Customer-owned boilers and pipes.
DQ Electrical control cabinet system set 1 Electronic control system::fingerless single facer,driving part,NC thin blade slitter scorer,double facer,glue machine all adopt frequency motor,delta frequency control system.operation interface easy and convenient,Speed display control cabinet with each unit speed display, the unit call, emergency stop function.The main relays Schneider brand.

YV5B HYDRAULIC MILL ROLL STAND

technical parameters:
1. the range of clamping paper:MAX2200mm MIN1000mm

2.clamping diameters:MAX¢1500mm MIN¢350mm
3.main shaft diameter of paper holder:¢240mm

4.gas source work pressure(Mpa):0.4---0.8Mpa
5.equipment size:Lmx4.3*Wmx1.8*Hmx1.6

6.single weight:MAX4000Kg
Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2.lifting hydraulic cylinder:¢100×440mm

3.Clamping hydraulic cylinder:¢63×1300m

4.hydraulic station motor power:3KW --380V -- 50Hz

5.solenoid valve voltage:220V 50 Hz


Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

Main shaft

Day steel production

diameter242mm

Swing arm

Production by own

Resin sand gray ironHT200

wallboard

Jigang prduction

Q235AWelding parts

bearing

HRB,ZWZ,LYC

expand chuck

Zhejiang xusheng

3,4inch shared

Main electrical appliance

France Schneider

button

CHINT NP2series

Air switch

French Schneider

Pneumatic components

Zhejiang Sonor CSM

Hydraulic station

Shandong zaozhuang

Brake pump

zhejiang
