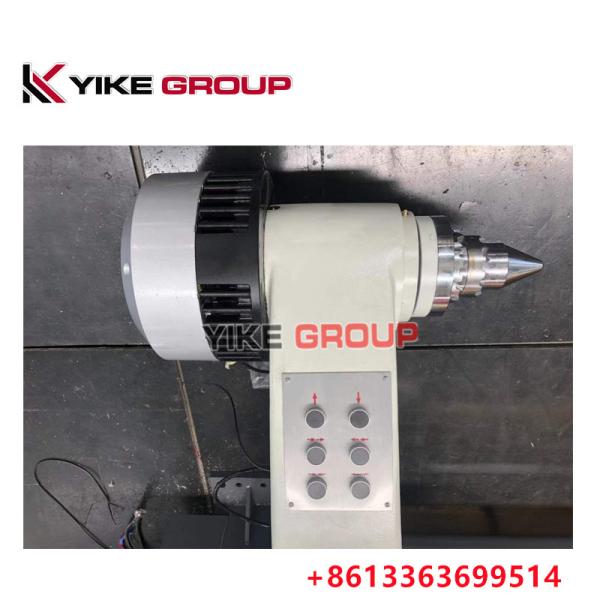

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1800
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 Set Mill Roll Stand
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Sets Per Month
Delivery Time :
30 Days After Deposit of Mill Roll Stand
Packaging Details :
Plastic Film,FCL
After-sales Service Provided :
Engineers Available To Service Machinery Overseas,Online Support
Automatic Grade :
Fully Automatic Hydraulic Mill Roll Stand
Usage :
3&5&7 Ply High Speed Corrugated Cardboard Production Line
Condition :
New Mill Roll Stand
Packaging Type :
Plastic Film
Weiht :
2.5T
Description

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of

Corrugated Paperboard Production Line

Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5.solenoid valve voltage:220V 50 Hz

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line

Name
Hydraulic Mill Roll Machine
Automatic Grade
Automatic
Key Machines
Hydraulic Shaftless Mill Roll Stand
Packaging Material
Plastic film
Condition
New
Brand Name
YIKE GROUP
Year
2024
Dimension(L*W*H)
Lmx4.3*Wmx1.8*Hmx1.6
Place of Origin
Hebei, China
Voltage
220v/380v/415v/440v
Product name
Hydraulic Shaftless Mill Roll Stand
Suitable for
Corrugated Cardboard Plant
Speed
100m/min
Machine type
Fully Automatic
Color
Customized Color
Type
Automaitc Packaging Line
Feature
Simple Operation
Keyword
Corrugated Cardboard
Advantage
Easy Operation High Efficiency
Warranty
1 YEAY

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line

Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

Main shaft

Day steel production

diameter242mm

Swing arm

Production by own

Resin sand gray ironHT200

wallboard

Jigang prduction

Q235AWelding parts

bearing

HRB,ZWZ,LYC

Toothed chuck

Zhejiang xusheng

3,4inch shared

Main electrical appliance

France Schneider

button

CHINT NP2series

Air switch

French Schneider

Pneumatic components

Zhejiang Sonor CSM

Hydraulic station

Shandong zaozhuang

Brake pump

zhejiang

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line

1800mm Hydraulic Mill Roll Stand Mill Roll For Support Roll Paper Of Corrugated Paperboard Production Line
