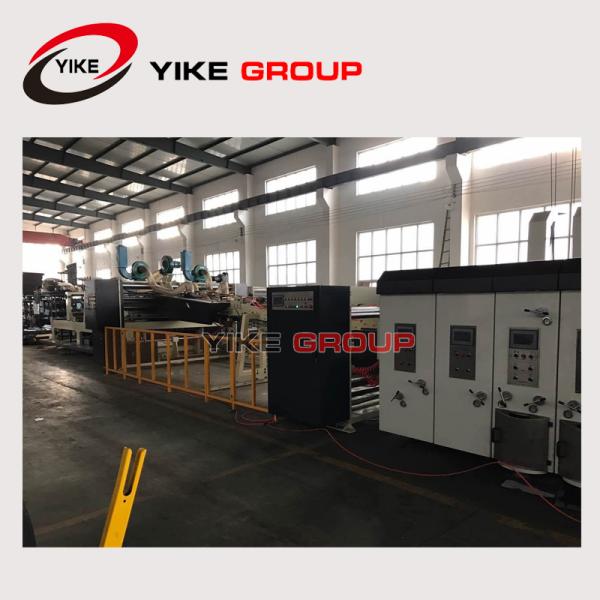

High Speed Flexo Printer Slotter with Fold Gluer Inline
High Speed Flexo Printer Slotter with Fold Gluer Inline
Specifications
Brand Name :
YIKE GROUP
Model Number :
YKL-1224
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3Sets /per Month
Delivery Time :
60 days
Packaging Details :
PLASTIC FILM WRAP
Type :
Automactic Carton Box Printing Machine
After-sales service provided :
Engineers available to service machinery overseas,Whole life,Avaliable,Online support
Automatic grade :
Automatic
Application :
Carton Box Making Machine
Name :
Flexo Ink Corrugated Carton Flexo Printing Machine,Flexo Printer Slotter Die-Cutter Stacker Carton Box Making Machine
Condition :
New
Driven type :
Electric
Description

High Speed Flexo Printer Slotter with Fold Gluer Inline

Lead-edge Feeding System

1. Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).

2. 7.5KW high pressure centrifugal fans, according to the cardboard

warping degree of frequency control pressure, to ensure warp

cardboard or thin cardboard high-speed accurate transmission.

3. Left and right side baffle position electrically adjustable,

screw-driven.and can remember by computer.

Printing Roller

1. With printing plate, outer diameter φ450mm

2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

YKL-1424 FFG/ Casemaker

Wall board thickness

50mm

Gear thickness

50mm

Max Machine Speed (pcs/min)

200

Max. Feeding Size (mm)

1400×2400

Max printing/working size (mm)

1400x2400

Min. Feeding Size (mm)

400x900

Skip-feeding Size (mm)

1600×2400

Standard Plate Thickness (mm)

 7.2mm

Suit corrugated thickness

2-11mm

Max slotter depth (mm)

 300

Print precision (mm)

 ±0.3

Slot precision (mm)

 ±1.0

Die cut precision (mm)

 ±1.0
High Speed Flexo Printer Slotter with Fold Gluer Inline

MODEL NUMBER

 YKL-1424
LEAD EDGE FEEDER

1 UNIT
FLEXO PRINTER

4 UNIT
COMPUTER SLOTTER

1 UNIT
ROTARY DIE CUTTER

1 UNIT
FOLDER GLUER IN LINE

1 UNIT
PP STRAPPER Option

1 UNIT

PAYMENT

 30% T/T IN ADVANCE, BALANCE PAID BEFORE SHIPMENT
DELIVERY TIME

WITHIN 90 DAYS AFTER GET 30% DEPOSIT

PRICE VALID

 30 DAYS

※Gluer line Unit

1. Maxmum speed: 200m/min
2. Mechanical work speed: 150m/min.
3. Vacuum transfer
4. Fully automatic adjustment
5. Control way: PLC program control.

Folding part:
6.The upper and down conveyor clamping the cardboard to move forward,the cardboard inlet interval, as well as upper and down conveyor interval all adjusted electrically.
7. Paper entering section adopts spring pressure wheel to load cardboard, limit device is equipped in the pressure wheel, and the interval between the wheel and down conveyor can be adjusted independently, make sure high paper feeding precision.

Gluing part

1.Gluing box was used elastic fixed, structure is simple and reliable, easy cleaning.

2.Gluing wheel was used stainless steel, make sure using long-term.

High Speed Flexo Printer Slotter with Fold Gluer Inline
