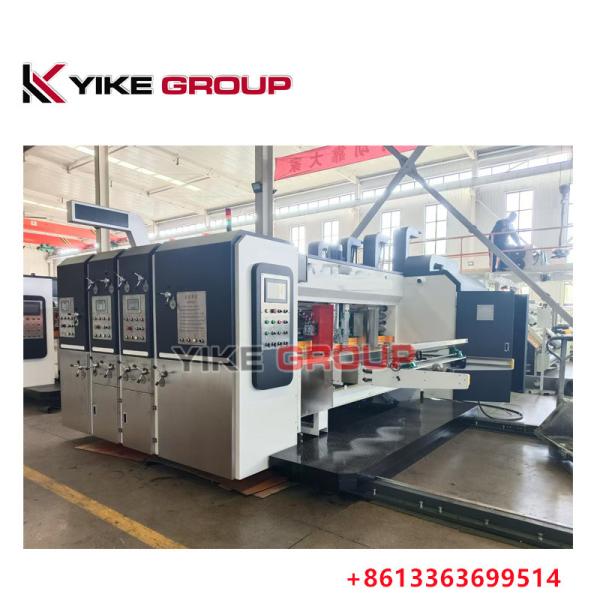

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1228
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3Sets /per Month
Delivery Time :
30 days
Packaging Details :
PLASTIC FILM WRAP
name :
printer slotter
origin :
China
model :
1228
min :
1 set
Type :
Automactic Carton Box Printing Machine,Carton Printer Slotter Die Cutter Machine
After-sales service provided :
Engineers available to service machinery overseas,Online support
Automatic grade :
Automatic
Application :
Commodity,Carton Box Making Machine,Machinery & Hardware,Chemical
Voltage :
380V/3Phaze /50Hz
Warranty :
1 Year
Description

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton

Detailed Product Description

Power(W): 50kw Condition: New
Voltage: 380v Dimension(L*W*H): Depends
Weight: Depends Production Capacity: 180pcs/min
Color: Customer's Request Design Speed: 180pcs/min
Keyword: Printer Slotter Die Cutter Working Speed: 250pcs/min
Max Paper Size: 1200*2800mm Min Paper Size: 350*600mm
Product Name: Lead Edge Feeder Flexo Printer Slotter Die Cutter Model: YK-1228
Type: Box Printer Machine

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton

YKH-1228 LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER MACHINE

Wall board thickness		 50mm

Max Machine Speed (pcs/min)		 180

Economic Working Speed (pcs/min)		 150

Max. Feeding Size (mm)		 1200×2800

Max. Printing Size (mm)		 1200×2800

Max. Slotting Size (mm)		 1200×2800

Min. Feeding Size (mm)		 350x650

Skip-feeding Size (mm)		 1400×2800

Standard Plate Thickness (mm)		 3.9

Min. slotter distance POSITIVE		 130X130X130X130

Min. slotter distance NEGATIVE		 230X65X230X65

Max slotter depth (mm)		 300

Print precision (mm)		 ±0.3

Slot precision (mm)		 ±1.0

Suitable Cardboard Thickness (mm)		 2 - 11

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton

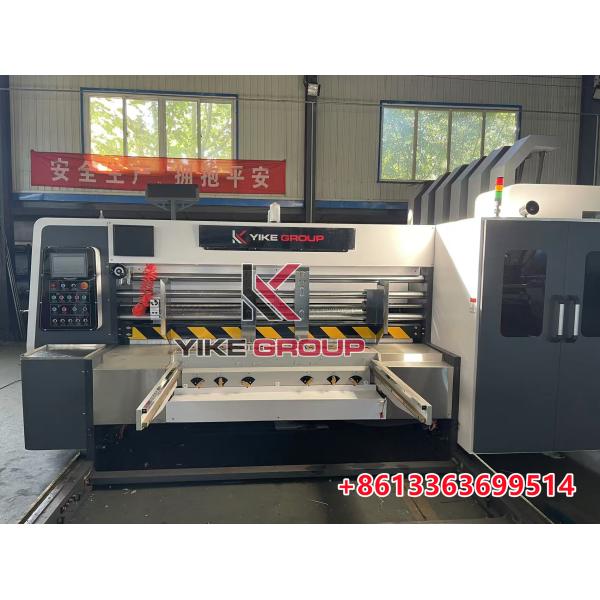

Feeder Unit:
1. Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).

2. Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.

3. Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

Printer Unit:


1. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

2. Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation

3. Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm

4. Printing phase adjustment of PLC computer display adjustment

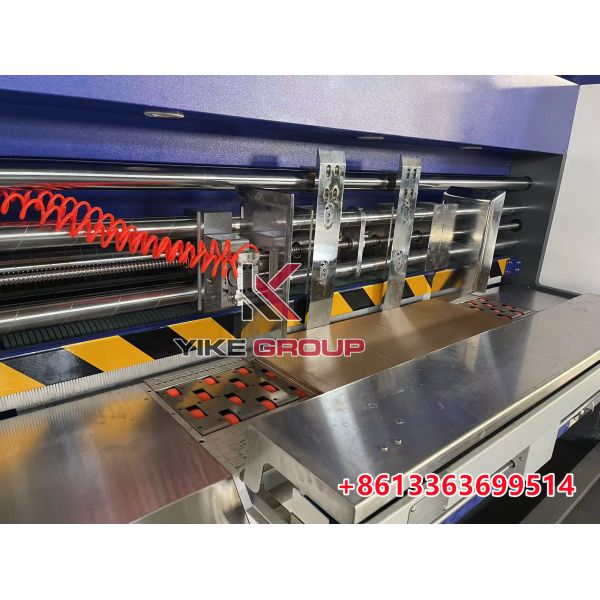

Slotting Unit:


1. The first pressure line round, after preloading cardboard not easily crush

2. The above press round Urethane appearance package, will not damage the cardboard

3. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise

Die cutting Unit:


1. Die-cutter phase, computer and electric digital control

2. Rubber roller and die roller gap use computer and electric digital control

3. The rubber roller compensated by motor-driven, control the speed of thr rubber roller, range ±3mm

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
