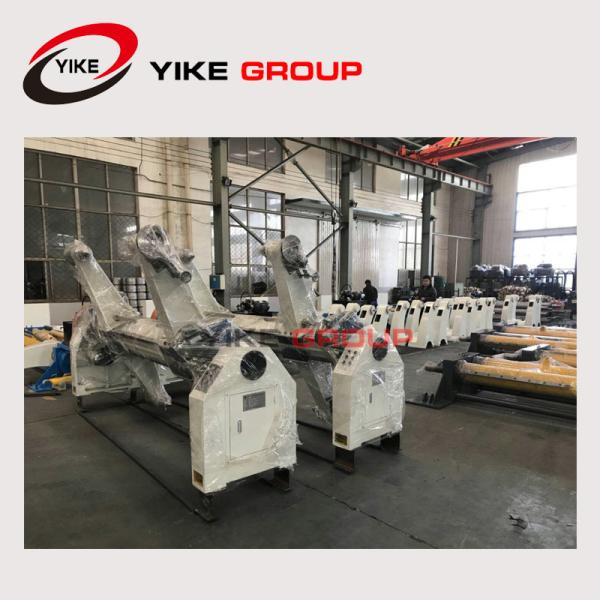

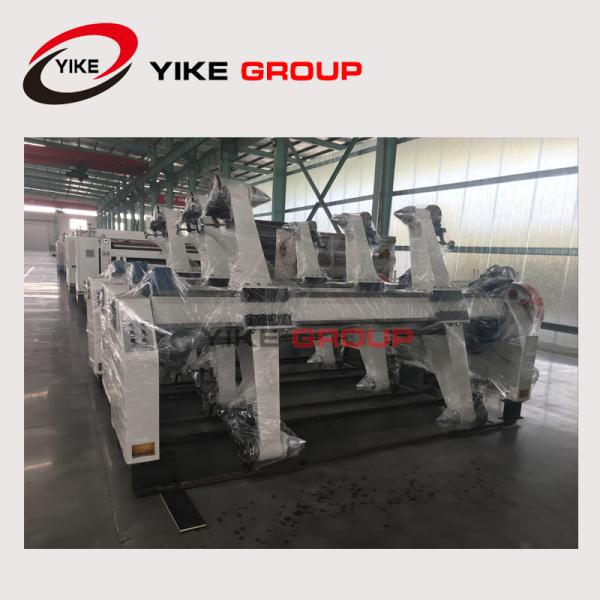

1800mm Electric Mill Roll Stand Used for Corrugation Line
1800mm Electric Mill Roll Stand Used for Corrugation Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1800
Certification :
CE
Place of Origin :
China
MOQ :
1set Electric Mill Roll Stand
Price :
Negotiation
Delivery Time :
30 days after deposit
Packaging Details :
Plastic film, FCL
Supply Ability :
50 Sets per Month
Voltage :
380V/50HZ, 220v/380v/440v
Condition :
New Machines
After-sales service provided :
Engineers available to service machinery overseas,Online support
Type :
Packaging Line,New type,corrugated paperboard production line
Automatic grade :
Automatic Electric Mill Roll Stand
Packaging type :
Plastic Film
Usage :
3&5Ply Corrugated Cardboard Production Line
Warranty :
1 Year
Description

1800mm Electric Mill Roll Stand Used In Corrugation Line

ZJ-F Electric Mill Roll Stand

※Structural features:

★The symmetrical structure can also install two bundles of paper at the same time, Paper can be used non-stop for a job. Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★Each shaftless mill roll stand is equipped with two pieces of paper guide, two sets of paper car, paper guide the use of channel 14 and the guide post-weld, paper car adopt 10mmwelded stell, the length of the track is 4500mm

★Manual disc brake, add screw following

★Electric elements centralized control the electric elements expand chuck

※Technical parameters:

1, Back stands action mode: mechanical electric operation

2, The range of paper jams:maximum:1800mm minimum:600mm

3, The diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4, Unilateral maximum load: maximum 2000Kg

5, Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

※Mainly purchased parts, raw materials, and origin:

Name of main parts Brands or place of origin Material
Motor Hebei Hengshui
Reducer Shandong Dezhou Jin bu huan
Contacts Chint or De li xi
Chuck Xusheng 3 inches, 4 inches shared
Wallboard Production own HT200

1800mm Electric Mill Roll Stand Used for Corrugation Line

CHINA YIKE GROUP CO LTD

Email: anna@yikegroup.net

web: www.yikegroup.net
