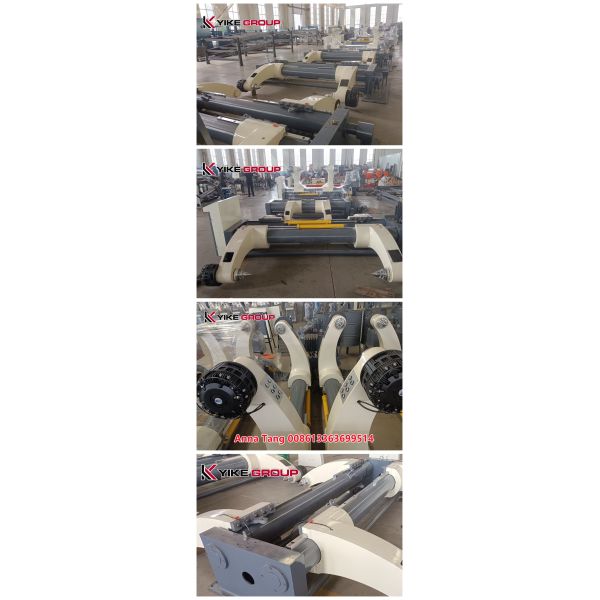

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2200
Certification :
CE
Place of Origin :
China
MOQ :
1set Hydraulic Mill Roll Stand
Price :
Negotiation
Delivery Time :
30days after deposit
Packaging Details :
Plastic film, FCL
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 Sets per Month
Voltage :
380V/50HZ, 220v/380v/440v
Condition :
New Machines
After-sales service provided :
Engineers available to service machinery overseas,Online support
Type :
Packaging Line,New type,corrugated paperboard production line
Automatic grade :
Fully Automatic Hydraulic Mill Roll Stand
Packaging type :
Plastic Film
Usage :
3&5&7 Ply High Speed Corrugated Cardboard Production Line
Warranty :
1 Year
Description




2200MM Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

ZJ-V5B hydraulic mill roll stand

※Technical parameters:

  • the range of clamping paper: MAX2200mm MIN1000mm
  • clamping diameters: MAX￠1500mm MIN￠350mm
  • main shaft diameter of paper holder:￠240mm
  • gas source work pressure(Mpa):0.4---0.8Mpa
  • equipment size: Lmx4.3*Wmx1.8*Hmx1.6 6,single weight: MAX4000Kg


2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

※Hydraulic system parameters:

  • Work pressure(Mpa):16---18Mpa
  • lifting hydraulic cylinder:￠100×440mm
  • Clamping hydraulic cylinder:￠63×1300m
  • hydraulic station motor power:3KW --380V -- 50Hz
  • solenoid valve voltage:220V 50 Hz

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

※Mainly purchased parts, raw materials, and origin

Name of main partsBrands or place of originmaterial
Main shaftDay steel productiondiameter242mm
Swing armProduction by ownResin sand gray ironHT200
wallboardJigang productionQ235AWelding parts
bearingHRB,ZWZ,LYC
expand chuckZhejiang xusheng3,4inch shared
Main electrical applianceFrance Schneider
buttonCHINT NP2series
Air switchFrench Schneider
Pneumatic componentsZhejiang Sonor CSM
Hydraulic stationShandong zaozhuang
Brake pumpzhejiang


※Paper trolley, track

※Structural feature
★the whole track buried,The main frame of the 14th Channel steel with ¢ 20mm cold drawn welded round,length of track 6000mm
★each paper holder matched two sets of paper trolleys and paper on both sides at the same time. pull the roller paper to the right place

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
※Mainly purchased parts, raw materials, and origin

Name of main partsBrands or place of originmaterial
track and paper carTanggang or jigangNO14channel steel,Q235A,steel strip
bearingHRB,ZWZ,LYC


2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line

2200mm Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
