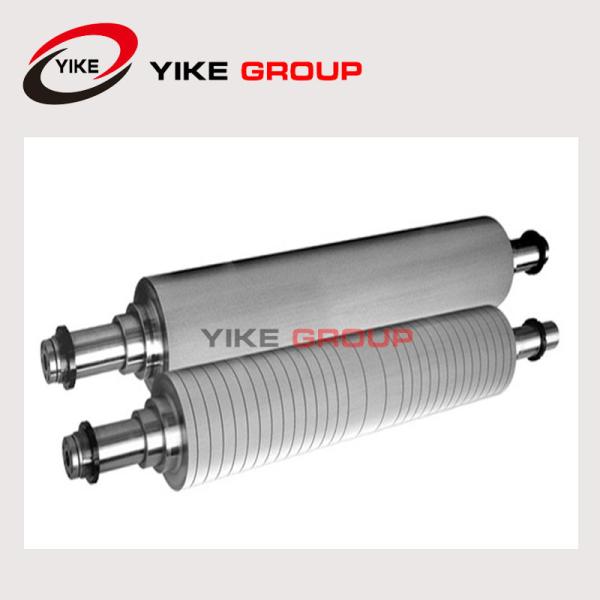

Single Facer Corrugated Roller 50crmo Hard Chrome Coating Alloy Steel
Single Facer Corrugated Roller 50crmo Hard Chrome Coating Alloy Steel
Single Facer Corrugated Roller 50crmo Hard Chrome Coating Alloy Steel
Single Facer Corrugated Roller 50crmo Hard Chrome Coating Alloy Steel
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-280,320,360
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1set Corrugated Metal Roller
Price :
$5,000.00 /set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300 sets per Month
Delivery Time :
80 days after deposit
Packaging Details :
Wooden Box
Condition :
50CrMo Hard Chrome Coating Alloy Steel Single Facer Corrugated Roller
Type :
Packaging Line Single Facer Machine, Corrugated paperboard production line
Usage :
Automatic Corrugated Single Facer Machine
Model :
280,320,360mm Corrugator Roller
Material :
50CrMo,Alloy steel
Hardness :
HRC50-68,HRC58o-60o.
Width :
1400-2500mm
Corrugated flute type :
A B C E F Flute Single Facer Corrugation Roller
Description

50CrMo Hard Chrome Coating Alloy Steel Single Facer Corrugated Roller

Corrugated Roller

Features:

● High precision hard chrome steel A C B E F G flute corrugated roller

● Type: Hard Chrome & Tungsten Carbide

● Used for carton box corrugator machine-Single Facer

Description

1. Hard Chrome Type Corrugated Roller

● The upper and lower corrugated( corrugating, flute) roller for single facer machine

● Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser, the hardness is above HRC58o-60o

● The surface is well treated by grind and plated chrome.

● Different types of flute according to user's request.

Characteristics
Flute A C BC B D E F G
Profile UV UV UV UV UV UV UV UV
Counts(300mm) 34±2 36±2 44±2 50±2 66±3 96±4 124±10 185±12
Height 4.6-4.9 3.6-3.9 3.0-3.4 2.6-2.9 1.9-2.1 1.1-1.8 0.7-0.8 0.5-0.65
Take Up Rate 1.51-1.59 1.44-1.51 1.42-1.49 1.36-1.42 1.40-1.41 1.29-1.39 1.22-1.26 1.20-1.25

Single Facer Corrugated Roller 50crmo Hard Chrome Coating Alloy Steel

Single Facer Corrugated Roller 50crmo Hard Chrome Coating Alloy Steel
