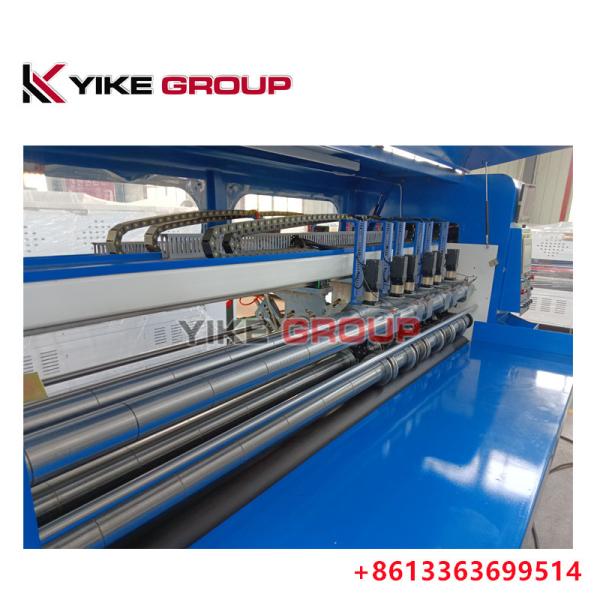

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-CNC-2500
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set for Thin Blade Slitter Scorer Machine
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Sets per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic Film, FCL
Voltage :
220V/380V,Customer's Demand
Packaging material :
Pe film or pack it according to customers special request .
Type :
Thin blade slitter scorer
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Overseas service center available
Warranty :
1 year and long life technical support
Name :
Thin Blade Slitter Scorer Machine
Function :
slitter the corrugated cardboards
Keywords :
Thin Blade Slitter Scorer Machine
Description

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

China YIKE Group thin blade slitter scorer machine with CNC Servo motor, and computer setting of slitter and scorer adjustment. The computer adjustment to change orders within 5-10 seconds.

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Model YK-CNC-2750 Thin Blade Slitter Scorer Machine YK-CNC-3100 Thin Blade Slitter Scorer Machine
No.s of slitting scoring

4/6 5/8 6/10
Max. production speed 180m/min 180m/min 180m/min 180m/min
Max. feeding width 2250mm The Max. slitting between the two blades:2250mm 2750mm The Max. slitting between the two blades:2750mm
Max.slitting width 2500mm 2900mm
Min.slitting width 200mm 200mm
Min. feeding length 400mm 400mm
Min. scoring distance 40*135mm 40*135mm
Gap adjustment Auto Auto
Main motor power 15kw 20kw
Dimensions L*W*H 1900*3450*1500mm 1900*3950*1500mm
Weigh 4780kg 4980kg
PRICE AND PAYMENT
FOB TIANJIN PRICE USD ONLY Thin Blade Slitter Scorer Machine
PAYMENT 30%TT,70%TT BEFORE SHIPPING
DELIVERY TIME 40-50DAYS AFTER PAYMENT
PRICE VALIDITY 30DAYS

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine


Human-machine interface —PLC control. The system for robot operating system is more humanized, simple in structure, easy to maintain.
1 . Manual/auto feeder is available for Thin Blade Slitter Scorer Machine
2 . Pre pressing roller, slitting blade, and scorer holder are auto-adjusted
3 . Grinding knife is auto/manual
4 . Cardboard thickness and press power are auto-adjusted
5 . Jog for fine-adjusted
6 . Auto counter
7 . Slitting and press line precision ±0.5mm
8 . Human-machine interface—PLC control, cutter paper-thin blade change order use stand-alone stepper motor control, auto change order speed 3-8S, error precision±0.5 mm.
9 . Operation humanized, no technical content, worker use operation use easy.
10 . Slitting part: Adopt high-quality tungsten steel thin blade, sharp and long work-life, slice tidier,non-pressing and non-burr.
11 . Pre pressing roller, slitting blade, and scorer holder are auto lifting
12 . This machine can memory 999 group orders, don’t need a stopped machine that can change order and manual change order.

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer MachineYike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine

Yike Group Cnc Servo Control Computer Thin Blade Slitter Scorer Machine
