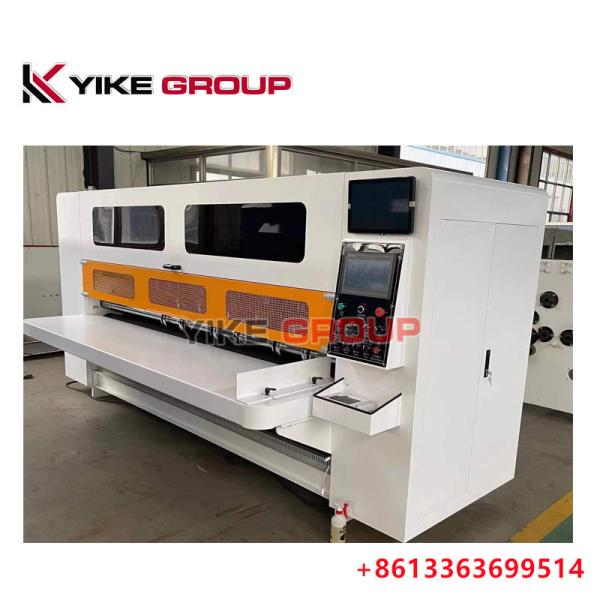

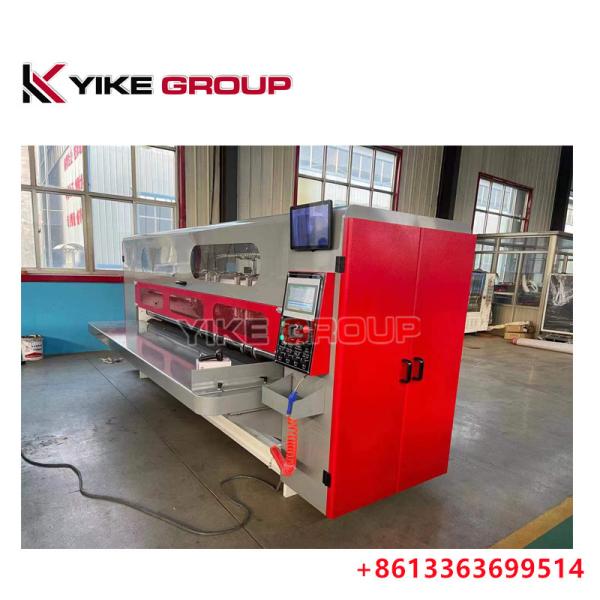

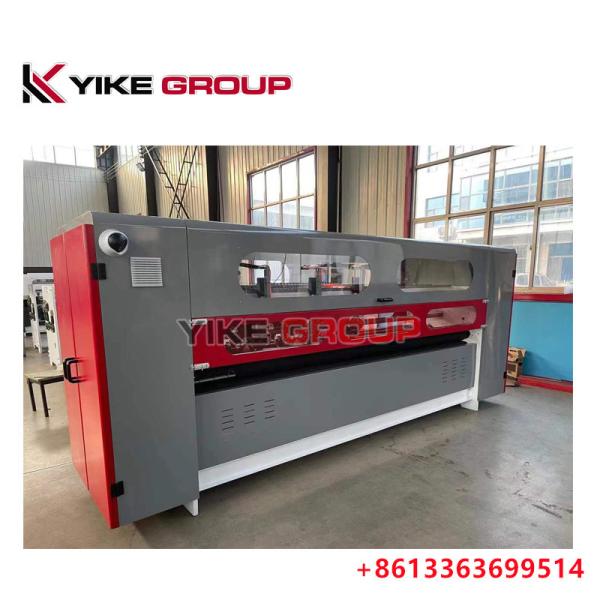

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-CNC-2900
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set for Thin Blade Slitter Scorer Machine
Price :
USD15,000-USD25,000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 Sets per Month
Delivery Time :
30 days after deposit
Packaging Details :
Plastic Film, FCL
Voltage :
220V/380V,Customer's Demand
Packaging material :
Pe film or pack it according to customers special request .
Type :
Thin blade slitter scorer
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Overseas service center available
Warranty :
1 year and long life technical support
Name :
Thin Blade Slitter Scorer Cutting Creasing Machine
Function :
slitter the corrugated cardboards
Keywords :
Thin Blade Slitter Scorer Machine
Condition :
New
Application :
Machinery & Hardware
Color :
Customer's Request,white gray and yellow
Machine type :
Thin blade slitter scorer machine
Description

Corrugated Cardboard Thin Blade Slitting Cutting Creasing Machine

Human-machine interface —PLC control. The system for robot operating system is more humanized, simple in structure, easy to maintain.

1. Manual/auto feeder is available

2. Pre pressing roller, slitting blade, and scorer holder are auto-adjusted

3. Grinding knife is auto/manual

4. Cardboard thickness and press power are auto-adjusted

5. Jog for fine-adjusted

6. Auto counter

7. Slitting and press line precision ±0.5mm

8. Human-machine interface—PLC control, cutter paper-thin blade change order use stand-alone stepper motor control, auto change order speed 3-8S, error precision±0.5 mm.

9. Operation humanized, no technical content, worker use operation use easy.

10. Slitting part: Adopt high-quality tungsten steel thin blade, sharp and long work-life, slice tidier,non-pressing and non-burr.

11. Pre pressing roller, slitting blade, and scorer holder are auto lifting

12. This machine can memory 999 group orders, don’t need a stopped machine that can change order and manual change order.

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Model YK-CNC-2750 YK-CNC-3100
No.s of slitting scoring

4/6 5/8 6/10
Max. production speed 180m/min 180m/min 180m/min 180m/min
Max. feeding width 2250mm The Max. slitting between the two blades:2250mm 2750mm The Max. slitting between the two blades:2750mm
Max.slitting width 2500mm 2900mm
Min.slitting width 200mm 200mm
Min. feeding length 400mm 400mm
Min. scoring distance 40*135mm 40*135mm
Gap adjustment Auto Auto
Main motor power 15kw 20kw
Dimensions L*W*H 1900*3450*1500mm 1900*3950*1500mm
Weigh 4780kg 4980kg

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine

Cardboard Thin Blade 2900mm Corrugated Slitter Cutting Creasing Machine
