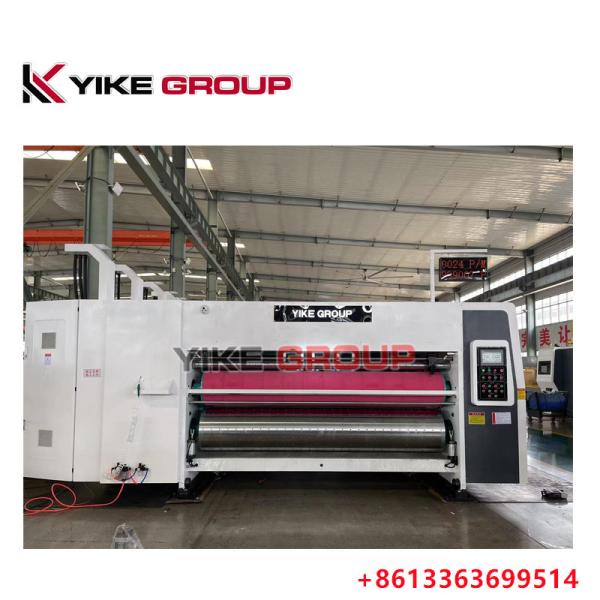

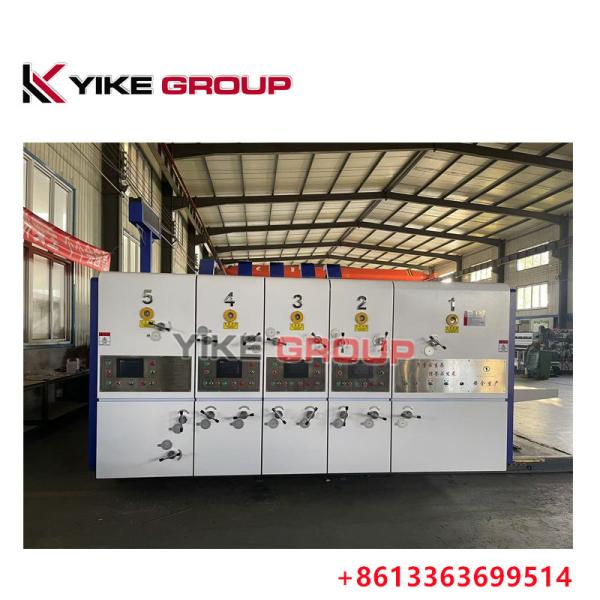

YIKE GROUP Lead Edge Feeder 1200X2400MM 4 Color Flexo Printing Slotting Die Cutting Machine

Main Technical Parameters

1. Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic

2. 7.5KW high-pressure centrifugal fans, according to the cardboard

warping degree of the frequency control pressure, to ensure warp

cardboard or thin cardboard high-speed accurate transmission.

3. Left and right side baffle position electrically adjustable,

screw-driven. and can remember by computer.

4.Front baffle adjust the position of the upper and lower intervals

synchronization by manual.

5. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

6. Install 7” touch screen, could automatically display the

production quantity, production speed, and set the production quantity and every operation.

Machine Separation & Combination

1 Button switches electrically control the separation and combination

of machine, with automatic alarm device, continuously alarm while moving, to ensure the safety of operators.

2. Air pressure interlocks, lock securely, conveniently, and accurately.

3.Machine clutch drive shaft is equipped with an overload protection device.

4.Active self-locking function: if the unit is not completely locking state,

the host cannot start, to ensure the safety of machine and operator;

while hosting normal working conditions, the unit clutch function is automatically locked, to avoid machine misuse and personal injury.

Feeding Roller: Feeding Roller

1.Upper feeding roll adopts outer diameter φ156mm rubber roller,

elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.

2. Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.

3. According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm

※Printer Unit

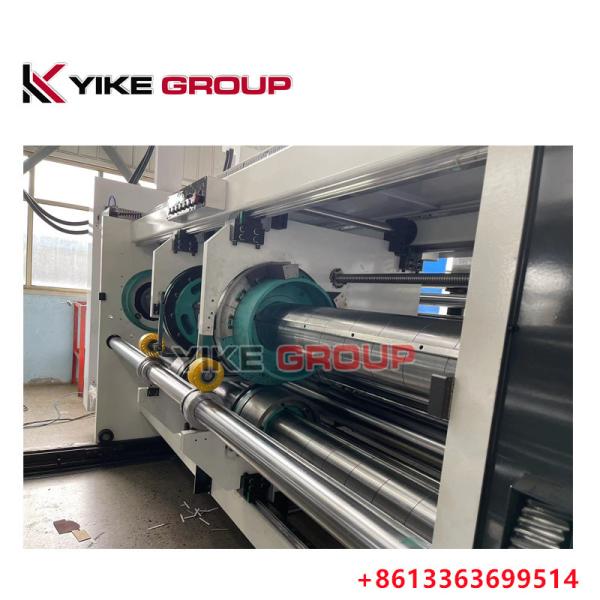

Printing Roller

1. With printing plate

2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate

4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

5. Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

※Slotting Unit

• Angle cutter made by ITALY model, cutting ring use Rubber materials
• Computer auto-control cardboard size by Linear guideway
• 6 shaft with rubber pre-creasing, creasing, slotter
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise

※Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
