Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-1800
Certification :
ISO,CE
Place of Origin :
Hebei, China
MOQ :
1 Set for Hydraulic Mill Roll Stand
Price :
USD16500
Payment Terms :
L/C, T/T, T/T, Western Union
Supply Ability :
Reel Stand Mill Roll Stand 50 Sets per Month
Delivery Time :
30days
Packaging Details :
Plastic Film
Product name :
Hydraulic Mill Roll Stand
Size Available :
1400-3200mm
Usage For :
Corrugated Paperboard Production Line
Application :
Carton Line
Voltage :
220v/380v/415v/440v
Color :
Customized Color
Suitable for :
Corrugated Cardboard Plant
Description

Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant

Hydraulic shaftless mill roll stand Use for corrugated cardboard production line From YIKE GROUP

Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant

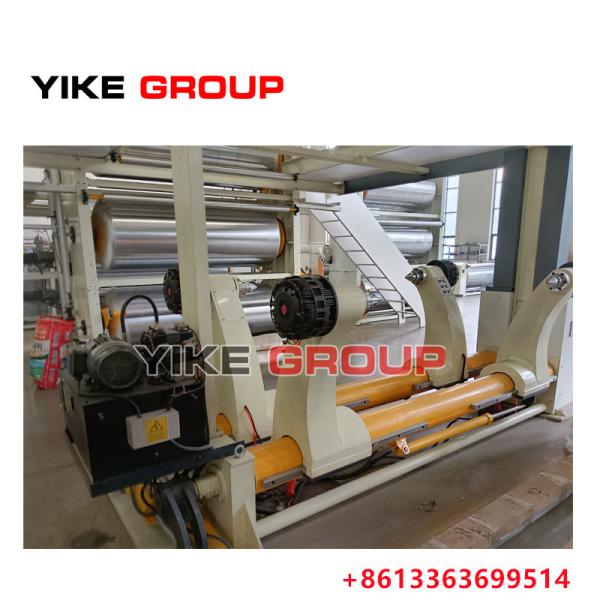

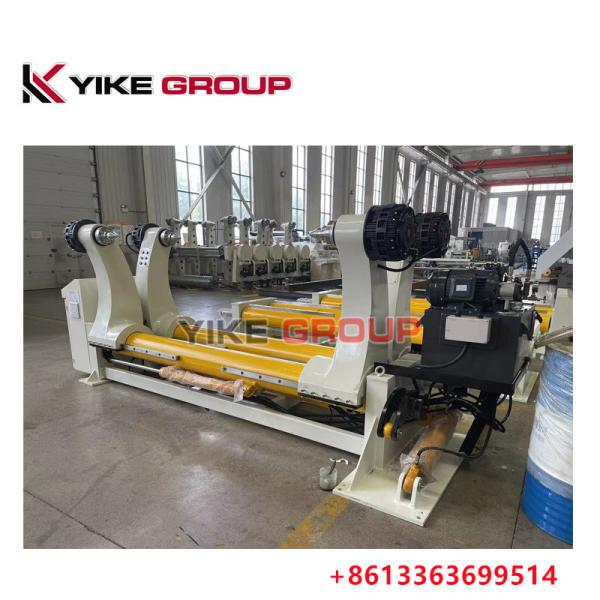

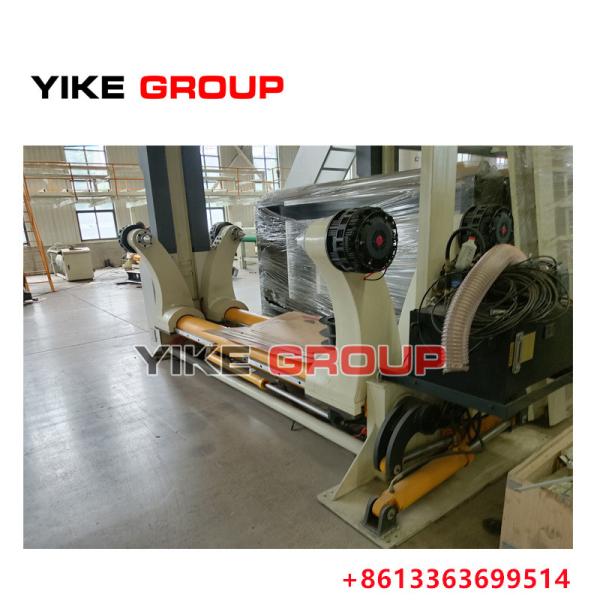

Hydraulic shaftless mill roll stand

※structural feature:

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right

and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant

Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2.lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4.hydraulic station motor power:3KW --380V -- 50Hz

5.solenoid valve voltage:220V 50 Hz

Hydraulic mill stand machineTechnical parameters:

  • The range of clamping paper:MAX2200mm MIN1000mm
  • clamping diameters:MAX￠1500mm MIN￠350mm
  • main shaft diameter of paper holder:￠240mm
  • gas source work pressure(Mpa):0.4---0.8Mpa
  • equipment size:Lmx4.3*Wmx1.8*Hmx1.6
  • single weight:MAX 4000Kg

Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant

Automatic Grade
Automatic
Key Machines
Hydraulic Mill Roll Stand
Packaging Material
Plastic film
Condition
New
Brand Name
YIKE GROUP
Year
2024
Place of Origin
Hebei, China
Voltage
220v/380v/415v/440v
Name
YIKE GROUP Unwind Stands For Paper Rolls Mill Roll Stand
Advantage
Easy Operation High Efficiency
Product name
Hydraulic Shaftless Paper Holder Mill Roll Stand
Packaging Type
Plastic Film in full container
Key Selling Points
Cost-effective mill roll stand
Application
Corrugated Single Facer Line
Keyword
Carton Making Machine Hydraulic Mill Roll Stand

Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant
