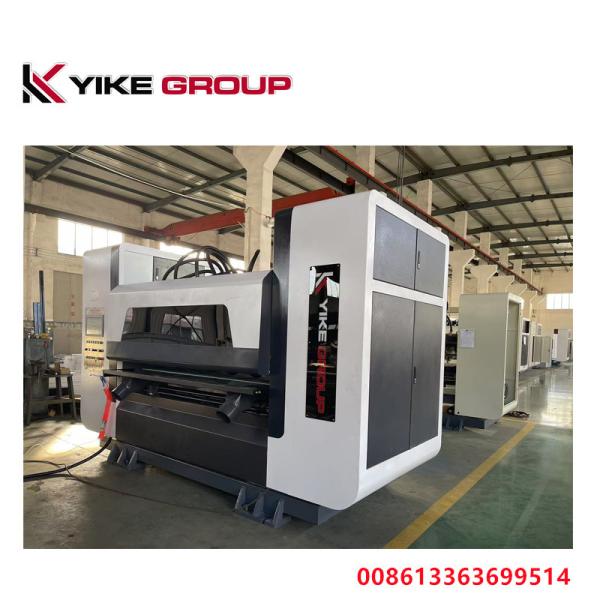

YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line
Specifications
Brand Name :
YIKE GROUP
Model Number :
YK-2200
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
USD70000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
60 days
Packaging Details :
Plastic Film
Type :
Automatic Thin Blade Slitter Scorer Machine
Function :
3/5/7 Ply Corrugated Cardboard Production Line
Key Selling Points :
Thin Blade Slitter Scorer Cutting Creasing Machine
Depth of creasing :
120mm
Keywords :
Thin Blade Slitter Scorer Machine
Condition :
New Slitter Machine
Application :
Machinery & Hardware
speed :
200m/min
Packaging type :
Corrugated Paperboard Making
Description

YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line

YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line

IMPORTANT FEATURES

1.The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers.

2.High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the slitting line.

3.It can store multiple orders, and can change orders automatically or manually without stopping.

4.Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility.

5.Change orders quickly, when two machines are used together, it can be realized to change orders without stopping.

6.With thin tungsten steel blade, the blade is sharp and has a service life of more than 8 million meters.

7.Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance.

8.Three types of wire pressing are selected: convex-to-concave (three-layer plate), convex-to-concave (five-layer plate), convex-to-flat, and three types of wire pressing electric conversion.

9.The front and back two rows of pressure wire wheel are arranged to realize zero scorer.

10.Line pressing depth has automatic control, good line shape, easy to shape.

12.The machine moves left and right for correct an error.

YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line

ADVANTAGE OF Automatic Thin Blade Slitter Scorer Machine

1.Synchronized adjustment of upper and lower pressure lines.

2.Three Voltage Line Electric Conversion.

3.Multi-screw design, economical and durable.

YIKE GROUP-BNC 6 Blade 10 Scorer 2200MM Automatic Thin Blade Slitter Scorer Machine For 3/5/7 Ply Corrugated Cardboard Production Line

TECHNICAL INDEX

Model 1800 2200 2500
Efficient width 1850mm 2250mm 2550
Min. slitting width 135mm
Min. creasing width 0mm
Blade model Φ260*158*1.3mm
Creasing roller model (up)φ238mm下(down)φ130mm

Changing order time

(servo type)

 1-4s
Correction range ±100mm
Precision ±0.5mm
QTY of blade/scorer 5/8 6/10 7/12
Power 16kw 20kw 21kw
Boundary dimension 3840*1720*2450mm 4240*1720*2450mm 4540*1720*2450mm
Depth of creasing 12mm
Design speed 200m/min
