High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Specifications
Brand Name :
LIHENG
Condition :
New
Warranty :
1 Year
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location :
Egypt, Canada, Turkey, Italy, France, Germany, Viet Nam, India, Thailand, Morocco, None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2023
Warranty of core components :
2 years
Core Components :
Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Type :
chain feeding
Key Selling Points :
Long Service Life
Weight (KG) :
15000 KG
Product name :
High Quality Semi-automatic Printer Rotary Die Cutting
Color :
User Defined
Driven Type :
Electricl
max.paper feeding size :
1400*2600
min.papaer feeding size :
300*300
feeding method :
chain wheel feeding
max.slotting depth :
350
Certification :
CE Certificate
Packaging Details :
Plastic /wooden box
Port :
Tianjin port
Supply Ability :
20 Set/Sets per Month
MOQ :
1pc
Price :
$12,000.00/sets >=2 sets
Description
Product Description
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
1.Whole machine electric parts was choice the domestic famous brand, good and steady quality .
2.Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digital controlled grinder.
3.All the transmission axles and rollers are made by high quality steel, and processed through tempering and dynamic balance; plated with rigid chrome and grinded surface.
4.All the transmission gears was used the 48# alloy steel, which is grinded after heat treatment, and it was made by rubbing. It still maintains the high topping precision.
5.Pneumatic combined control the whole machine. It has the function of counting, alarming, and operating at the back of the machine.
6.Planetary gear structure. All gears are after fine grinding.
7.Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Feeding unit：
Feeding cardboard：Use 12A high Precision chain feeding paper type, double side position, feeding table front and rear can adjust, 5mm working table plate.
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Printing roller：
1. it is Φ400mm including the plate.
2. Surface of roller is grinded and hard chrome-plated.
3. Treated with balance correction, runs steady and smoothly.
4. Engraves the reference line, Convenience hang plate.
5. In the operation process of edition roll 360°phase electric adjustment, The number automatically adjusts the amount displayed.

Printing pressure roller：
1. Outer diameter: Φ156mm.
2. Surface of roller is grinded and hard chrome-plated.
3. Treated with balance regulating, runs steady and smoothly.
4. Printing pressure roller clearance dial is adjusted manually. Adjusting range: 0-10mm.

Paperboard feeding upper and lower roller：
1.Upper roller: outer diameter: Φ111mm, thickness steel pipe, attached with 4 feeding rings.
2.Lower roller: outer diameter: Φ156mm, thickness steel pipe, the surface is grinded and hard chrome plated. 3.Paperboard feeding roller clearance dial is adjusted manually. Adjusting range: 0-10mm.

Steel anilox roller：
Outer diameter: Φ216mm.
Surface of roller is grinded, embossed and hard chrome-plated.
Treated with balance correction, runs steady and smoothly.
Mesh number: 200, 220, 250, and 280 for your choice.

Rubber roller：
Outer diameter: Φ180mm.
Surface of the steel pipe is covered with wear-resistant rubber and it is after balance correction.
Rubber in the special high-grinding, the transmission ink effect.

Phase adjust system：
Planet gears structure.
Printing phrase is adjusted computer phase meter control electrically in 360° . (It can be adjusted running or stopping.)
sideways location is adjusted manually. Adjusting distances 10mm。
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box

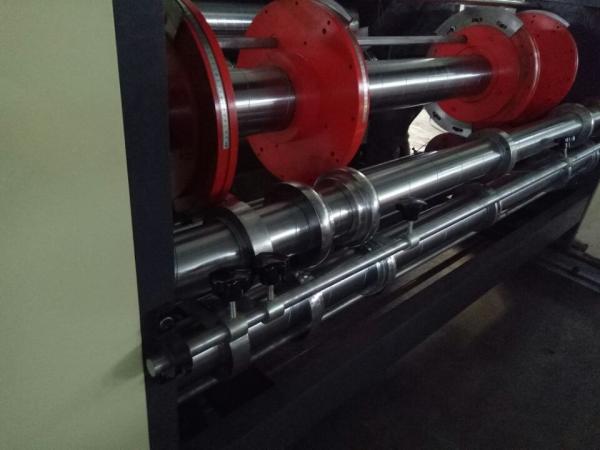

Crease press deviceThe sheet cardboard gap use manual adjust, and gap trimming self locking device.
Have emergency stop device is installed to ensure the safety.
Slotting phrase adjusting system/Box height adjusting system Slotting phrase is adjusted electrically in 360°, Time is fast, high precision.
The phase zero device to ensure the consistency of the slotted position.
The box height adjustment adopts the manual gear structure adjustment, avoids the gear oil pollution board.
Pre-press wheel Upper and lower roller diameter: Φ111mm,, attached with 4 pre-press rings.
Can effectively prevent the phenomenon of broken cardboard.Wire
wheel high pressure shaft, shaft diameter 111mm, hard chrome plated surface.
Using a new type of wire pressing wheels.
Slitting/slotting knife holder Slotting knife thickness 7mm, High quality alloy steel heat treatment tooth shaped slotting knife.
The diameter of the shaft is 176mm, Surface of roller is grinded and hard chrome-plated, moving smooth.
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box

1.The phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
2.The die cutting roller is made of the high quality steel with the treatment of chrome plated and balance adjustment.
3.Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly.
4.The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
5.Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord.
6.Imported polyurethane rubber is easy and convenient to install and has a long lifetime, able to die cutting for 12 million times.
7.The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.
Product packaging
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Recommend Products
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Company Profile
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Our Advantages
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Certifications
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
Exhibition
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
High Definition Flexo Printing Slotting Rotary Die Cutting Machine For Corrugated Carton Box
1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
