380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition :
New
Automatic Grade :
Automatic
Usage :
Paper Forming Machine
Place of Origin :
Hebei, China
Brand Name :
liheng
Voltage :
380
Dimension(L*W*H) :
12000*2000*1800mm
Weight :
180000 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Product name :
Corrugated Paper Production Line
Function :
Cardboard Box Making
Keywords :
Corrugated Box Cutting Machine
Speed :
400m/min
Finished Products :
Paperboard Box
Port :
Tianjin port
Supply Ability :
1 Set/Sets per Month
Price :
$8,000.00/sets >=1 sets
MOQ :
1pc
Description
Product Description
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
Details Images
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line

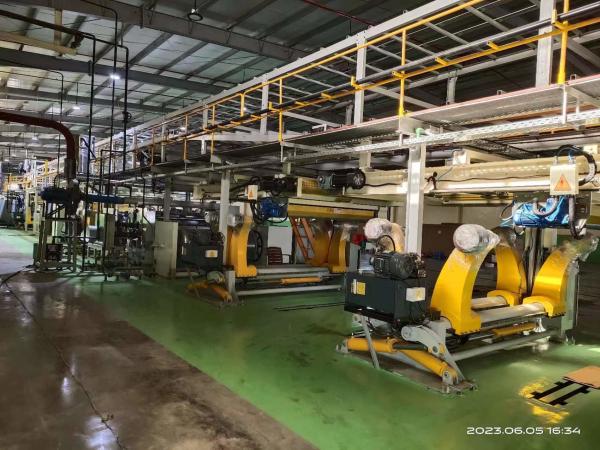

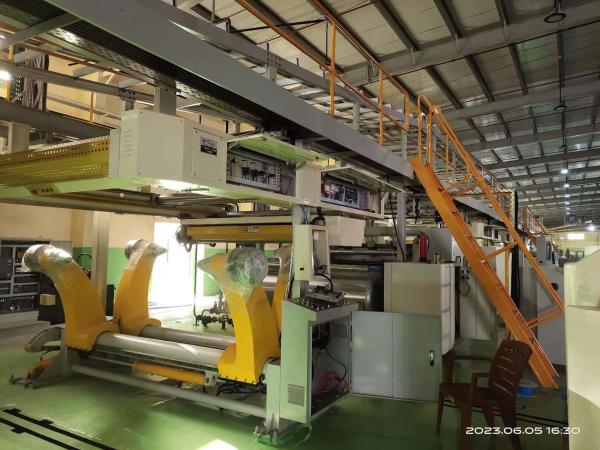

Hydraulic Mill Roll Stand
Pneumatic brake and spring clutch Hydraulic station
Machine Introduction: *Swing type. *Max. paper roll Dia: 1500mm length: 900-1800mm *Clamping paper roll, moving right-left, arms up-down and paper roll rotation is hydraulic operated. *Support two paper rollers in the meantime, one is working, and another is for spare part. * Adopts “Spring clutch”. * Paper tension controlled by pneumatically operated disc brake, setting the tension easily.
Pre-heater
Machine Introduction:
* Accurate grinding and chromed the surface of heating roller and wrap roller, smooth and shining.
*Heating roller adopts professional manufacturer product, passed the nation pressure vessel text.
*Heating roller and wrap roller adopts plating treatment.
*Motorized wrap angle can be suit for different speed.,Exact preheating result can be adjusted, preheating area adjusted by electrical moto
*Wrap roller: 2sets, one fix roller, and other one floating roller.
*Adopts butterfly seal structure on two sides, save the steam and improve heating efficiency.
*Adopts special sealing method, follow firstly grade sealing method in China, passed the China sealing text, with certificate.
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
Single Facer
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing. * Frequency conversion motor as main drive ,independent gear box connect with three gimbal axis , inverter to make stepless speed regulation for save power and keep one communication connector for production management . *Press roller: Dia.364mm. with drum. * Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance. *Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
Over bridge
Machine Function: *Main frame made by channel steel, and angle steel With protecting handrail and safety pedal on both sides, the operation side is installed with safety ladder, to make sure the safety and convenience of the worker. *Vacuum suction tension control,5 inch suction pipe with adjusting valve,draw fan power can be adjusted freely. *Electric correcting,and correcting plate is by double guide posts,driving by screw , fast and accuracy to position, steady to move. *Take up device two sets, installed on each single facer. *Independent frequency motor lifting device, PVC conveyor belt transmission, corrugated paperboard forward wave and smoothly.
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
380V Fully Automatic Corrugated Box Cutting Machine for 3 5 7 Ply Production Line
NC cut off
Machine Function:
*Machine configuration: helical cutting knife，5 Group of φ200 circular slitting blade *Storing 200 sets of orders, man-machine interface, the screen displays information，reviewing,modifying,adding and canceling orders at any time.
*Germany KEB servo system control the motor driving,and high-performance synchronous servo motor *The cutting machine adopts the
inlaid steel helical knife structure, and the hard-toothed grinding gear realizes no backlash transmission, with high precision
and long service life *The machine base and wallboard adopt gray cast iron, with high strength and strong vibration resistance.

Total Length
40-70m
Total Power
100-200Kw
Product Type
Frame with shaft、 Frame without shaft
Corrugated paperboard marching
Diameter of corrugated rouer: 280-406mm, electrv adjust speed moterused.
Double cylinder gum mountingmarchine
On the adoption, inside two layers draw the gun, dascend to carry thepaper lead the paper roller.
Oven
Total length 7.8m, combined with 9-18 heating flocks
Setting Part
Total length 3.8-5 m, combined weith some pairs of symmetrical shafts
Horizontal,Lengthuays slicing marchine
Common knife or superthin knife selected based on customer's demand
