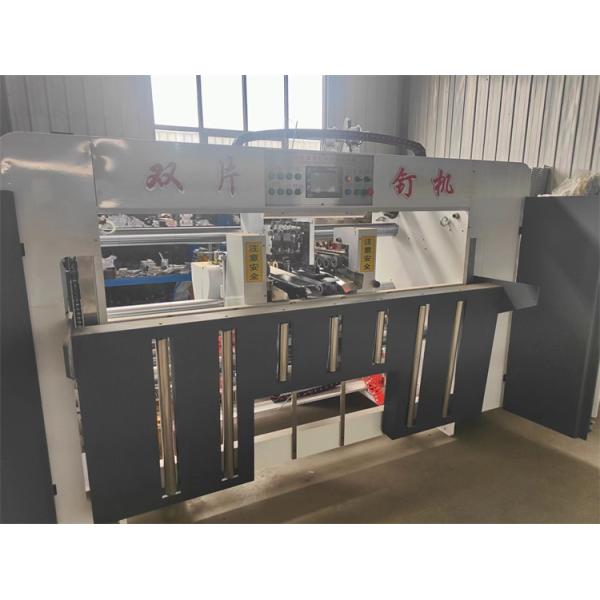

Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Specifications
Warranty :
2 years, 2 years
Type :
Other
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location :
Egypt, Italy, Brazil, India, Thailand, Morocco, Romania, Bangladesh
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
2 years
Core Components :
PLC, Motor
Condition :
New
Application :
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type :
Cartons, Film
Packaging Material :
Plastic, Paper
Automatic Grade :
Semi-automatic
Driven Type :
Other
Voltage :
380V/50HZ
Power :
6kw
Place of Origin :
Hebei, China, Hebei China
Brand Name :
LIHENG
Weight :
3200 KG
Dimension(L*W*H) :
other
Key Selling Points :
Easy to Operate
Nail number :
2-99
Minimum paper height :
400mm
Minimum flap size :
80(Standard) 20(Optional)
Minimum height :
200mm
Maximum paper height :
2900mm
Maximum flap size :
450(Standard) 600(Optional)
Nail distance :
30-150mm
Maximum height :
2000mm
Packaging Details :
Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake.
Port :
Tianjin port
Supply Ability :
50 Set/Sets per Month
Price :
$3,500.00 - $4,500.00/sets
MOQ :
1pc
Description
Product Description
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
★The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.

★ It only takes one minute to change the carton size and adjust the nail distance of the carton, which greatly saves time and is easy to operate.

★There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and binding.

★ The front paper feeding section automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.

★ Paper feeding height: 900mm.

★ Mechanical speed: 600 nails/min.

★ One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.

★ Reinforced nails, single nails, double rows of nails can be nailed, all at once.

★ The paper feeding department automatically counts, and the finished product is sent out for binding.

★ Suitable for small and medium-sized cartons, fast and labor saving.

★ Adjust the nail distance, use the computer to set the nail distance automatically, and the nail distance can be adjusted at will from 30-150mm;

★ Automatic wire feeding system, 20KG large flat wire, saving time.

★ Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer controlled, fast and accurate.

★ This machine adopts four servo motors (namely two head motors and two feeding motors).

★ Isolation and voltage-stabilizing transformer protection device of the whole electrical appliance can better protect the service life of the whole computer electrical appliances.

★ The latest machine adopts a full computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, fast and accurate, and can store 1,000 orders.

★ Binding method: double oblique nail or single oblique nail/reinforced nail.
Specification
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Model and parameters
SDJ-1600D
SDJ-2000
SDJ-2500

Maximum paper size (A+B) * 2 (mm)
3200
4000
5000

Minimum paper size (A+B) * 2 (mm)
980
980
980
Maximum carton length A mm
1480
1880
2380

Minimum carton length A mm
370
370
370

Maximum carton width B mm
800
1000
1250

Minimum carton width B mm
120
120
120

Maximum paper height (C+D+C) (mm)
2900
2900
2900

Minimum paper height (C+D+C) (mm)
400
400
400

Maximum flap size C (mm)
450(Standard）
600（Optional）
450(Standard）
600（Optional）
450(Standard）
600（Optional）

Minimum flap size C (mm)
80(Standard）
20（Optional）
80(Standard）
20（Optional）
80(Standard）
20（Optional）

Maximum height D (mm)
2000
2000
2000

Minimum height D (mm)
200
200
200

Max tongue width (mm)
40
40
40

Nail distance mm
30-150
30-150
30-150

Nail number
2-99
2-99
2-99

Nail speed (times/mim)
600
600
600
Machine weight (T)
3.0
3.2
3.5
Recommend Products
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Packing & Delivery
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Exhibition
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
Certifications
Double piece corrugated cardboard carton box stitching Machine with Maximum height 2000mm
FAQ
1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
