4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer
4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer
4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer
4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer
Specifications
Brand Name :
KS
Model Number :
1800mm
Certification :
CE,ISO
Place of Origin :
Hebei province , China
MOQ :
One set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30sets/Month
Delivery Time :
5-8 working days
Packaging Details :
Machine corvered with plastic sheet , packed in wooden case
Machine name :
4 Bar Rotary Slitter Creaser Machine
Feeding paper size :
1800 2000 2200 2500
Machine in stock or not :
In stock
Machine colour :
Customzied
Machine function :
slitter and creaser
bar number :
4 or 6
Price :
Negotiable
Description

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer

1. Rotay cutting creasing machine introduction

Simultaneously Cutting and Creasing of the corrugated sheet is done over this machine. Two pairs of shafts have creasing and cutting heads mounted on them which are adjustable.

The sheets are piled on the feed table and fed through the machine by hand.Two side gauges are provided for correct feeding of sheet.The speed is 300' per minute and minimum distance between two dies is 3".

The best machine for slitting & scoring of corrugated sheets.The four pairs are used for slitting & four pairs are used for scoring.The set of four pairs for slitting can be removed easily similarly the set of four pairs of scoring can be removed easily.Hence the machine can also be used either for slitting only or for scoring only.

2.Rotay cutting creasing machine technical parameters

Paper feeding size Paper thickness Speed Machine size Machine weight Motor power
1750mm 10 180 2200×700×1050 1100 1.1
1950mm 10 180 2400×700×1050 1300 1.1
2150mm 10 180 2600×700×1050 1500 1.5
2450mm 10 180 2900×700×1050 1800 1.5

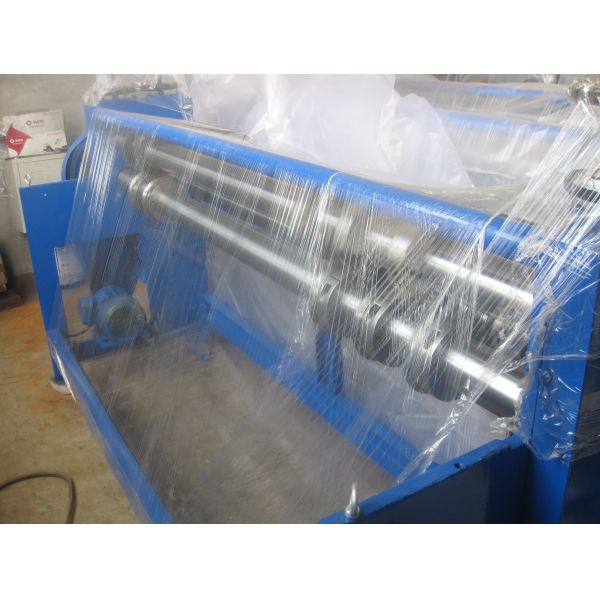

3.Rotary cutting and creasing machine pictures

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer

4 Bar Rotary Slitter Creaser Machine / Thin Blade Slitter Scorer
