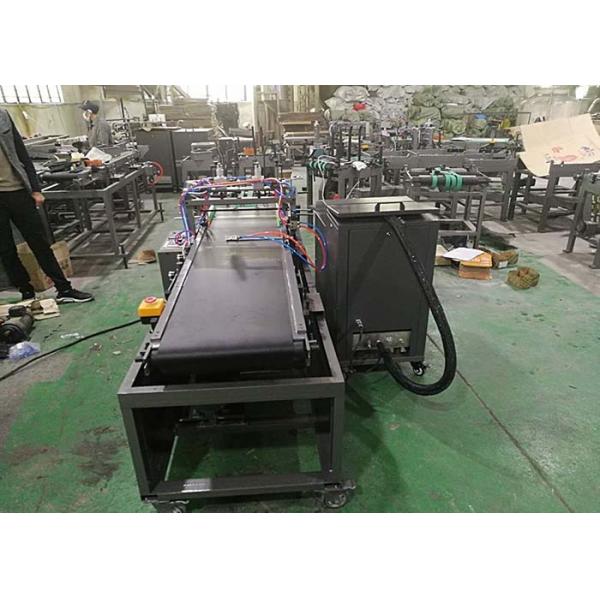

Black Color Mouse Pad Coating Glue Machine HG828 Automatic Control
Black Color Mouse Pad Coating Glue Machine HG828 Automatic Control
Black Color Mouse Pad Coating Glue Machine HG828 Automatic Control
Black Color Mouse Pad Coating Glue Machine HG828 Automatic Control
Specifications
Brand Name :
KSPACK
Model Number :
HG828+40KG
Certification :
ISO ,CE
Place of Origin :
cangzhou
MOQ :
1set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30sets per month
Delivery Time :
30-50days after getting deposit
Packaging Details :
wooden case
Price :
Negotiable
machine function :
mouse pad coating glue machinery
speed :
3000-6000pcs/h
glue tank :
40kg
glue type :
hot melt glue
control system :
automatic control
machine name :
HG828 black color mouse pad coating glue machinery
final goods :
every model glue trap boards
warranty time :
1year
Description

HG828 black color mouse pad coating glue machinery

machine working process:

automatic feeder trap board material-------automatic coat glue on board-------stack final traps by manual

machine spare parts with machine:

A.. HG-820 Model coating machine 1 set

1.PT100 temperature meter :1 pc 2.40A solid seat relay :2pcs

3.fuse seat :3 pcs 4. Plug : 1 pair

5.PT100 Temperature control : 2pcs 6.return valve :1 pc

7 filter core : 1 pair 8. Hose elbow connect : some

9. seal ring , PTFE pad :some 10. Gear shaft and gear: one pair

11.seal gum : 1 bottle ( after wash the gear pump , coating the gum to link part of gear pump with tank bottom , prevent link part to leak the glue ; after the coating it ,must seal the glue use the bottle cap .otherwise that will waste )

12.filter : 1pc 12:PTFE tube : 1 meter

14. copper plate (different thickness) :each 1 pc 15.different size screw: some

16glue gun body :one pc

17 .air connector : some 18: air tube :5meter

19.air compressor meter :1pc 10: 1.8meter hose tube :1pc

B..HG-40KG production line 1 set

1.chain : 1 pc(connector some) 2.cylinder (TN￠32×10):1pc

3. intermediate relay 1pc

4.sensor :2 pcs (one is yellow well to fell the black color ,that need match two pcs reflector plate use together )

5.timer : 1pc 6. Solenid Valve :2pcs

7. tools : ONE SET 8.every kind of connector : some

9:every kind of switch : some

machine dimension

hg-828G production:2530×770×1310mm；

hg-820glue machine:820×460×570mm
wooden case size of machine 2800×1300×1100mm
specification power :3800v/50hz hg-818b productoin line power :1.8kw；hg-820 glue machine:6.7kw machine weight: 650kg
