Seim Auto 2 Ply Corrugated Board Production Line 1600mm B Group

1,Corrugated Board Production Line Description:

The single facer machine is one of the important equipments in the warp-and-weft cardboard production line, and the quality of the warp-and-weft cardboard formed is closely related to the correct use and maintenance of the single-sider.

The mechanical equipment that produces warp-and-weft core paper (the special term for the wavy shaped paper in the cardboard panel) is an artificial machine in the warp-and-weft packaging industry, which is known as the heart of the warp-and-weft cardboard production line.

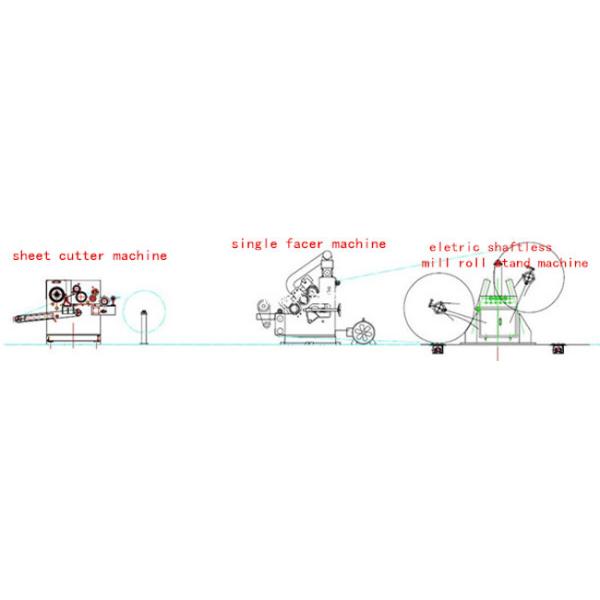

2,Corrugated Board Production Line Component:

ZJ-F Electric Shaftless Mill Roll Stand Machine

Structural features:

Symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper

Electric o clamping, release, moving on the left and right

Brake adjustment using disc plate system.

With two-stage automatic expansion of the paper clip, clamp head size 3 inch.

Technical date:

Paper stand active model: Mechnical electrical

Clamp paper scape : Max 1600mm

Clamp diameter : Max ￠1200mm

Single side max load weight : 1200kgs

Power : 380 volt ,50hz

Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4 set

Manual brake model ( option pneumatic brake model )

Electricla brand : Delixi chit

Machine weight : 2.3t

SF-280 Vacuum Single Facer Machine

Characteristics:

• Adopt the cover style adsorb structure ,match with high pressure winder , winder match with quiter ,air and electrical control centrated in the operation work table, distance with main machine1.5 m .main machine operation side all have the cover.
• Machine seat with wallboard all case iron , the thickness of wall board 130mm ,adopt the alone gearbox ,and gimbal transmission
• Corrugated roller adopt 48 crmo ,alloy steel ,after laser hardening
• Surface grinding , corugated roller diameter 280mm ,surface hardness HRC60 ,main part bear of the corrugated roller ,and pressure roller with stand high temperature
• Pressure roller diameter324mm ,surfacer grinding and chormeplated ,cylinder control move up and down ,material medium carbon steel 45#,hardening and tempering (with cushioning device)
• Pneumatic control supply or reback the glue ,coating glue roller diameter 215mm ,surface after grinding ,carved 25 line steel pit anilox , then chorme plated , even glue roller after grinding then chorm plated .
• Corrugated roller ,pressure roller material suppled by zhongyuan tegang, corrugated roller single side have 0.15mm middle height, pressure roller single side 0.075mm middle height. Add the limit device,
• Press clycinder use diameter 160mm
• Preheater diameter 320mm ,use the steamless steel ,connect by steel soft tube

Techinical parameter

• work width:1600mm
• operate direction :left or right ( according the cletns workshop design)
• design speed :80m/min
• temperature scale:160—200℃
• air compressor:0.4—0.9Mpa
• stear pressure:0.8—1.3Mpa
• corruated style (Uvstye or UVVstyle):

Roller diameter parameter:

• corruated roller diameter : ￠280mm
• pressure roller diameter: ￠324mm
• glue coating roller diameter: ￠215mm
• preheater diamter: ￠320mm
• motor power parameter:
• main drive power :7.5KW rated voltage:380V 50Hz contious(S1)work style
• winder power:7.5KW rated voltage:380V 50Hz contious(S1)work style

Heavy Model Sheet Cutter Machine

Function characteristics :

It is used for cutting the cylinder paper or single paper board to quadrangle of needing .

• Max cut width :1600mm
• Cut length range :400-2400mm
• Cut paper times :0-70/min
• Steppless derailleur :P3
• Confect electric machine :4.0mm
• Work speed :0-70m/min
