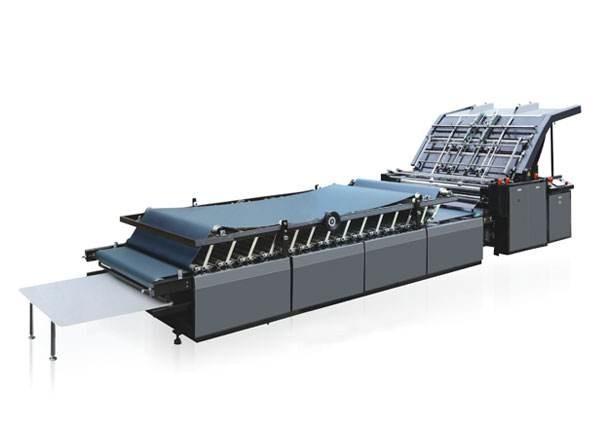

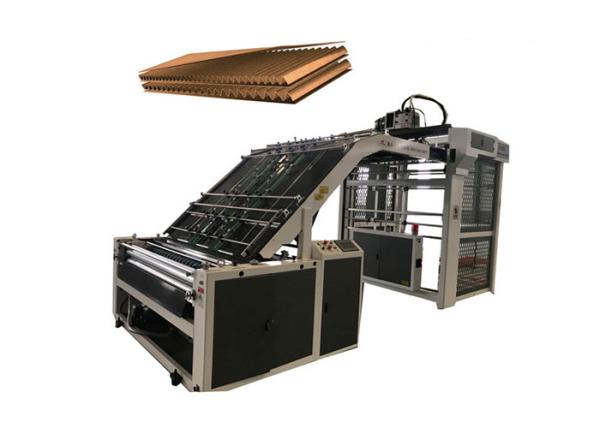

Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
Specifications
Brand Name :
Kingsun
Model Number :
KSJ
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1 set per 30 days
Delivery Time :
5-8 work days
Automatic grade :
Automatic,Semi-Automatic
Driven type :
Electric
After-sales service provided :
Engineers available to service machinery video living
Type :
Laminating Machine,high speed semi-automatic flute laminating machine,laminating machine and flip flop machine
Voltage :
380V/220V
Condition :
New
Packaging type :
Cartons
Product name :
semi automatic flute laminating machine,Flute Corruagated Cardboard Laminating Machine,Cold Laminator
Warranty :
1 Year
Color :
Customer's Request,Picture color can also make according to your requirement
Name :
Flute Laminator Machine
Function :
high accuracy laminating machine
Description

Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt

Flute Laminator Machine Introduction:

Multifunctional laminating machine, can produce 5/4/3 (2+2+1=5 /4+1=5/2+2=4/2+1=3) layers corrugated cardboard.

KS-F series fully automatic multi-layer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper position section, cyclic gluing section,pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated cardboard or cardboard which is thicker than 350 gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

Flute Laminator Machine Specification

Model KS-1300F KS-1450F KS-1600F
Max paper size 1300x1200mm 1450x1200mm 1600x1200mm
Min paper size 600x600mm 600x600mm 600x600mm
Face paper thickness 150-600gsm 150-600gsm 150-600gsm
Bottom paper A/B/C/E/F/G 2ply flute A/B/C/E/F/G 2ply flute A/B/C/E/F/G 2ply flute
Precision 1.5 mm 1.5 mm 1.5 mm
Max Speed 6000pcs/h 6000pcs/h 6000pcs/h
Height of face paper pile 1600mm 1600mm 1600mm
Face paper table capacity 1500kg 1500kg 1500kg
Height of bottom 2ply pile 400mm 400mm 400mm
Total power 20kw 20kw 20kw
Dimension 15x2.2x2.6m 15x2.4x2.6m 15x2.5x2.6m
Machine weight 5000kg 5500kg

6000kg

Flute Laminator Machine Machine structure:

1. Face paper conveying section adopts advanced four sucking and four delivering feeder, with the help of high pressure vacuum pump it can feed the face paper 180-600gsm efficiently. Position displaying hand wheel on the face paper pile loading section makes the loading action more accurate and more convenient for the bottom paper loading at the same time. Limited switch fixed on face paper loading section makes the moving up action more accurate.
2. Conveying belt, pressing roller and automatic chasing lay all do help to the face paper delivery. Pressing roller adopts the specialized roller which is used on print machine, it can delivery both thick and thin paper effectively. Anti-curl structure helps to delivery face paper at the same time.
3. Both bottom paper feeding section adopt vacuum sucking belt with high strength and high friction allowing the non-stop feeding. Rotating paper supporter equipped on this section makes it possible to feed the long sheet.
4. Knurled roller on the bottom feeding part makes sure the stable running when the machine in a high speed.
5. Chasinglay and high-speed axial flow fan differential positioning system is applied on the bottom paper feeding part.
You can adjust the front and back position without stopping the machine. Synchronous slot design can control the bottom paper feeding in a minimum range; Chasing lay can make sure a good bottom sheet feeding when the machine is running at a high speed.

Corrugated Cardboard 5 Ply Flute Laminator Machine 20kw 220Volt
