3 5 7 Layer semi auto Corrugated Board Production Line Equipment
3 5 7 Layer semi auto Corrugated Board Production Line Equipment
3 5 7 Layer semi auto Corrugated Board Production Line Equipment
3 5 7 Layer semi auto Corrugated Board Production Line Equipment
3 5 7 Layer semi auto Corrugated Board Production Line Equipment
3 5 7 Layer semi auto Corrugated Board Production Line Equipment
Specifications
Brand Name :
KSPACK
Model Number :
KSJG
Certification :
CE,ISO9001,ISO,BV
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1 set per 30 days
Delivery Time :
5-8 work days
Condition :
New
After-sales service provided :
Video technical support
Voltage :
380v/220v/440v
Warranty :
1 Year
Product type :
carton box making machine
Name :
Corrugated Board Production Line
Description

3 5 7 Layer Semi Auto Corrugated Board Production Line Equipment

This corrugated paperboard production line is composed of shaftless mill roll stand , fingerless type single facer(vacuum suction type),preheater , double bridge, gluer machine ,double facer machine ,cut off machine , slitter corner machine , stracker and glue making syetem . It is our company new production which adsorb technology advanced from other countries , properly our users and on the base of our experience over 30 years . The feature of our machine : high automatization , easy operation and maintenance , high effciency , good quality of paperboard , compact structure and nice appearance .

What this machine used for ?

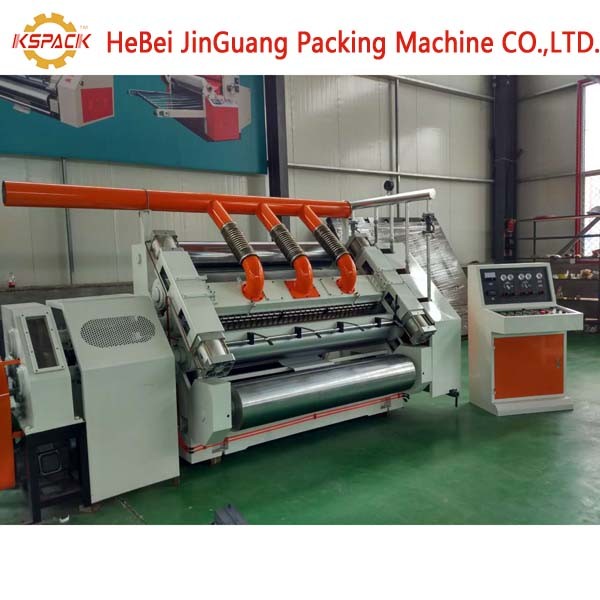

Single Facer is the main machine for producing the corrugated paperboard , make monolayer corrugated board from flat craft paper

Function and characteristics:


1.this machine was vacuum adsorption ,improve corrugated board quality ,avoid appear low or high corrugating ,producing operae conveniecne
2.the corrugating roller adopt 48crmo alloy steel ,diameter 280, treated by frequency quencher,charcoal treatment
3 the flute style UV
4.flute profie : according to the clents need A C B E
5. electrica heating ,oil heating or steam heating style
6. glue adjust by electrical

1. Design Speed: 80m/min
2. Effective width: 1400mm-2200mm
3.Corrugated roller:φ280mm
4. Drive reducer box with oil immersed type lubricating to reduce noise keep running stable. adopt gimbal transmission. separate power.
5.Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
6. Cardboard transmit adopt vacuum suction method, with wind control system. keep flute profiles stable of the lower-roller in the condition of running up.
7. Bearing of corrugated and pressure roller adopt high temperature lubricate grease.
8. Glue parts auto supply glue circularly.
9. The upper-lower corrugating roller are made of 52CrMo high quality alloy steel, after heat-treatment. The hardness
HRC58o-60o,the surface be grinded.
10. The glue part surface are treated by special mesh snicked and chromeplated.
11. Motorized or manual glue width dividing to match the paper width.
12.Glue part can be running independently or non-independently while stopped. Adopt main motor frequency conversion control.

Specification

Working Width

1200mm

1400mm

1600mm

1800mm

2000mm

Heating method

Oil heating / Steam heating/Electrical heating

Design speed

80m/min

Economical speed

45-60 m/min

Compress-air pressure

0.4-0.9MPa

Flute type

Standard flute:UVE Flute Standard spec.A,B,C,E,F

Corrugated roll diameter (mm)

280

Wall Thickness (mm)

130

Type

Vacuum Absorb

Roller material

48CrMo alloy, Heat treated

Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
