automatic silicon paper laminator rat mouse fly insect cockroach glue traps board making equipment

Specification:

1. Single-row machine: producing top quality mouse glue traps on or about 1500 pieces each hour .

Producing standard Mouse glue traps, fly glue traps,

Cockroach glue houses on or about 3000 pieces each hour;

2.Single-row or double-row machine all can be compatible with big /small mouse glue traps,

top quality mouse glue traps , plastic or other wooden concave type Mouse glue traps,

fly glue traps, Cockroach glue houses , no matter thick or thin ,big or small

3.Single row and double row ,all can option install auto feeder - auto sprinkle fish bait ,,auto fold ,auto counter function ,except package ,each line only need 1 person

4.Each line of Double producttion line can be alone , can products different model same time ,

double line can same time work ,or alone one line work ,work speed also can be differernt .

5.Single row and double row work speed control by Adjustable speed motor control ,

Photoelectric switch control system and

automatic follow system control simultaneously to track precisely and cut of glue

6.Special cylinder takes glue gun up ,after gelatinizing each paper ,

glue gun be taken up automatically to even gluing ,no trail

7.Electrical parts of this equipment such as cylinder ,adjusting speed electric motor,

speed regulator , solenoid valve etc. components all be imported from taiwan or

other countries to ensure the quality

configuration:

Single-row standard configuration: production line for export only of single-row machine of Mouse glue traps, fly glue traps, Cockroach glue houses of model no HG-818B + 20 kilograms-capacity hot melt glue machine of model no HG-820;

Double- row standard configuration: lengthen production line for export only of Mouse glue traps, fly glue traps, Cockroach glue houses of model no HG-818B ×2 sets + 80 kilograms-capacity double-melting tank glue machine of model no HG-880 .

Alternative configuration :Can elects 20 kilograms,30 kilograms,80 kilograms or 150 kilograms-capacity single or double-melting tank glue machine base on different price .

Remark :

1 pest control equipment the stardard machine size glue coating width 210mm: max passing paper 230mm

2 HG-818B single production line :2530×770×1310mm;HG-820 hot melting machine:820×460×507mm capacity :20kg if u think the capictiy is small

u can choose differetn capicty 30kg or80kg according the different price

3 HG-818B double production line :4530x770x1310mmx2;HG-820 hot melting machine:980×560×940mm capacity 80kg

4 about the question ur ask the paper board thickness : above 0.1mm

Customer visit factory:

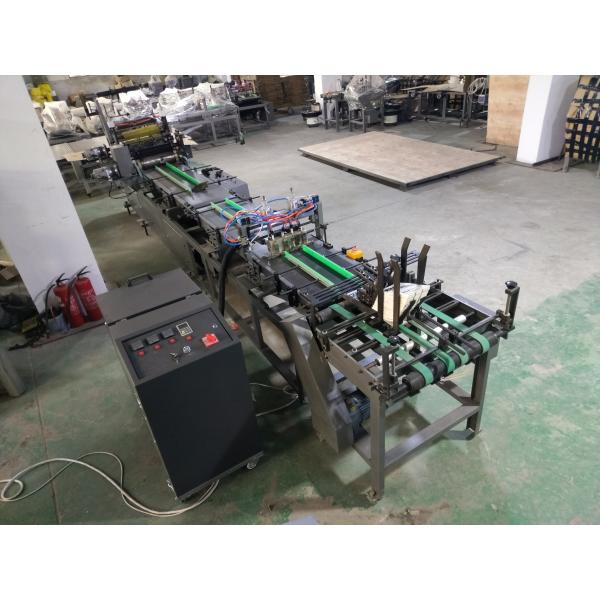

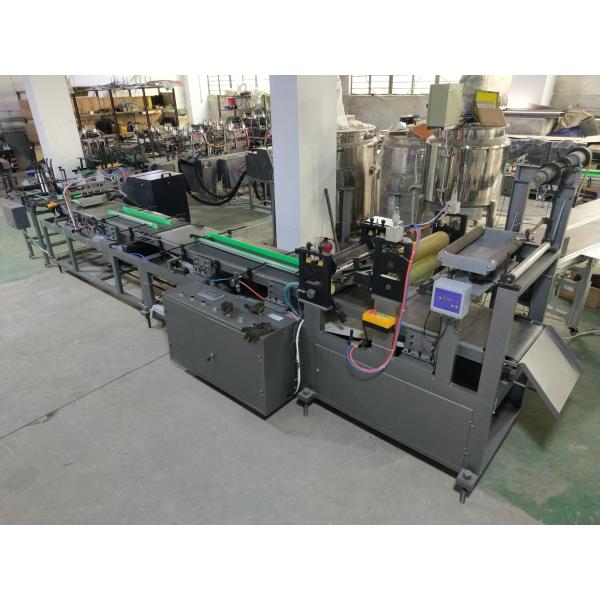

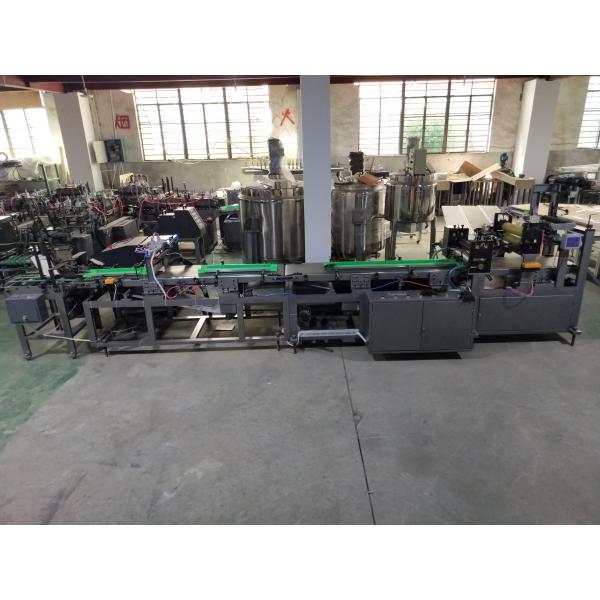

Machine photo:
