3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine
Specifications
Brand Name :
HAOGE
Model Number :
HG818+40kg
Certification :
ISO ,CE
Place of Origin :
Quanzhou
MOQ :
1set
Price :
usd 14000-40000 set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
10sets per month
Delivery Time :
30-50days after getting deposit
Packaging Details :
wooden box
machine name :
Rat glue trap board making machine
machine function :
Mouse Rat Fly Mosquito glue trap making
Material :
PP Rat Glue Trap,board plastic case
speed :
3000pcs/h
Voltage :
380V/50HZ 3phase
glue tank :
40kg
glue type :
hot melt glue
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field maintenance and repair service,Field installation
warranty time :
1year
Description

Automatic Mouse Glue Trap Making Machine with auto feeder auto edge folder auto put button auto final folder

The fourth gerneration of the (hard board ) book model automatic alone six side fold machine ,can work will old model single or double row machine , can match auto feeder part , button device put machine , let the mouse trap board machine,total automatic ,

machine detail parameter

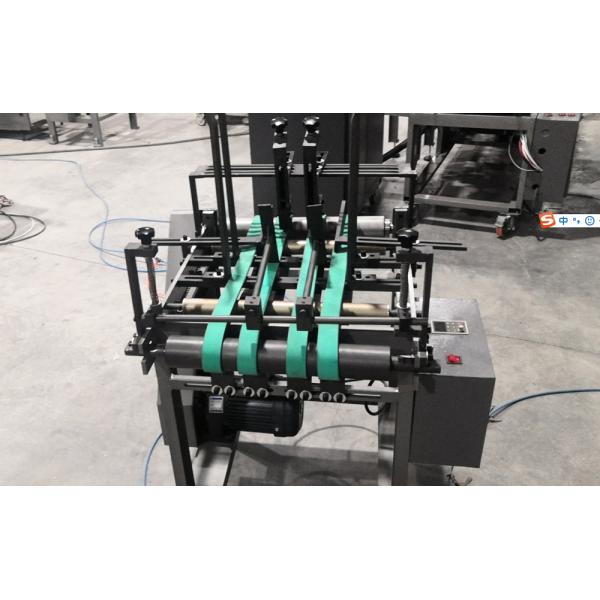

1. Automatic feeding

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

2. Automatic six side fold machine

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

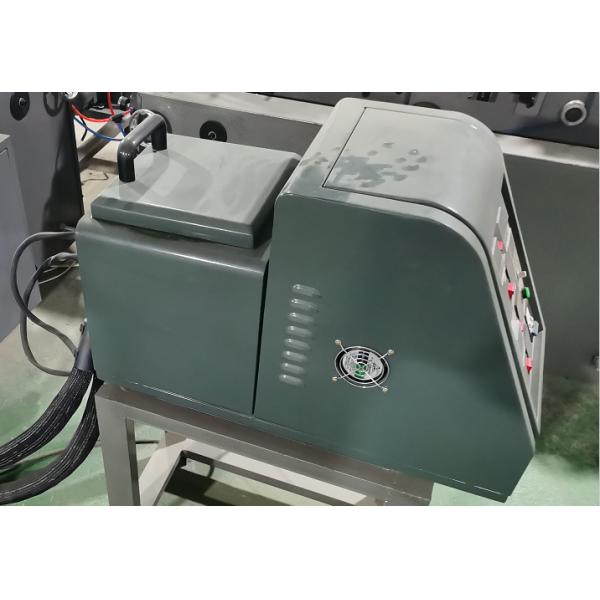

3.5kg hot melt tank ,for fold the side of board

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

4.four glue hose with glue gun

5. Speed can match with single or double row production line 60pcs /min.Single-row machine: producing top quality mouse glue traps on or about 1500 pieces each hour . Producing standard Mouse glue traps, fly glue traps, Cockroach glue houses on or about 3000 pieces each hour;

6.glue coating size 210mm or 310mm( if have special requirment we can according requirement to make

7.Glue coat production line ( coat the strip board ,or wave model )

8. Button device ( option )

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

9. Folder part ( option )

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

10 glue tank stanard 20kg , 40kg ,80kgs 150kgs (choose one of them )

11. Machine put drawing and size

Feeding part ---- folder part --- folder part ------glue coat part

The spare parts

Item Name Unit Qty
1 PT100 temperature control meter pcs 2
2 Solid state relay(40A) pcs 4
3 Fuse and its seat set 3
4 Aviation plug(big,small) pair 1 for each
5 PT100 temperature sensing head pcs 3-4
6 Return valve pcs 1
7 Filter core(big,small) pcs 1 for each
8 Hose connector 45 pcs 4
9 Sealing ring, gasket (including gear pump oil seal) several
10 Flat sealant bottle 1
11 Filter pcs 1
12 Polytetrahydrogen tube meter 1
13 Copper sheet pcs 1
14 Various types of screws pcs several
15 Glue gun body: (with thimble 4) pcs 1
16 Gas joint pcs several
17 air tube meter 10
18 Barometer (single , double ) pcs 1 for each
19 Plastic hose 1.8meters pcs 1
20 Various switches pcs several
21 Intermediate relay(24V) pcs more than 4
22 Various heating tubes pcs 2-3
23 Chain (several joints ) pcs 1
24 Photoelectric: ( silver , yellow) pcs 2 for each
25 Intermediate relay(220V) pcs more than 3
26 Solenoid valve pcs 3
27 Host belt pcs 1
28 Hexagon wrench set 1
29 Training Video CD pcs 2
30 Hole punch tool pcs 1
31 Reinforcement of gun seat and rubber tank filter set 1 for each
32 Various springs pcs several
33 Inverter panel pcs 1
34 Square cylinder pcs 2
35 Half-moon shape bearing pcs 1
Auto feeder part
1 Feeder belt pcs 4
2 Speed adjust meter pcs 1
3 paper press wheel pcs 4
Auto folder part for 6 edge
1 Paper fold temperature sensing head pcs 2
2 Papr fold aluminum sheets (big , small) pcs 1 for each
3 Paper fold cylinder pcs 1
Auto button placement part
1 Button placement cylinder pcs 2
2 Button placement speed adjust meter pcs 1
3 Button placement panel bearing pcs several

The final product

3P Automatic Mouse 3000pcs Rat Glue Trap Making Machine The paperboard plastic book rats traps making machine

The machine videos :

https://youtu.be/nZGDZgxLGZI

https://youtu.be/jr9PP1yiwdQ

https://youtu.be/fAgWLXe8b_E

https://youtu.be/Xzq6hPbT6Bk
