210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
Specifications
Brand Name :
KSPACK
Model Number :
HG858+40kg
Certification :
ISO ,CE
Place of Origin :
cangzhou
MOQ :
1set
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30sets per month
Delivery Time :
30-50days after getting deposit
Packaging Details :
wooden case
machine function :
Mouse,Cockroach Trap Paper Board Making Machine
speed :
3000-6000pcs/h
glue tank :
20-80kg
control system :
automatic control
machine name :
210mm 410mm 510mm coat hot melt glue width rat glue trap making machine
final goods :
every model glue trap boards
keyword :
Plastic Mouse Glue Trap Machine
feeding :
automatic feed
Description

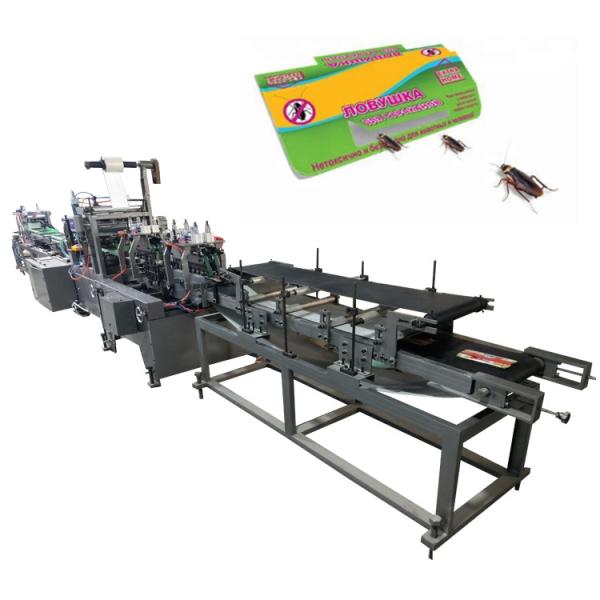

210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H

1)The working principle

The sheet is sent out by a single piece of paper feeder , through coating glue gun coating ,After the automatic cooling forward,Arrive at the sticker release paper wheel.When the bonding part detects the cardboard, the release paper pressing wheel presses out the release paper of the required length, the cutter wheel cuts off the release paper, and at the same time, the release paper and the cardboard are covered. The finished product is delivered through the conveyor belt.

2)The main technical parameters

1. Equipment dimensions: 5500*770*1800mm

2. The total power of the equipment (including glue gun part: 16KW

3. The maximum unwinding diameter of the release paper: Φ700 mm is recommended to be between Φ400 mm and Φ500 mm.

4. Release paper core diameter: Φ76mm

5. The effective maximum coating width: 230 mm (super wide products need to be scheduled)

6. Coating uniformity: ± 3%

7. Glue weight range: 20~500 g/m2

8. Release paper fitting length: less than 400 mm or less than 600 mm

9. Production speed: 0~ 80 sheets / min

10. Air pressure source: 6~8 kgf/cm²

11.Equipment power : AC 380V

MACHINE DIMENSION

HG-858B PRODUCTION:5900×800×1400MM；

HG-40GLUE MACHINE:950×550×570MM
WOODEN CASE SIZE OF MACHINE 3310*1450*1750MM 2200*1850*1400MM 2460*2000*1300MM
MACHINE WEIGHT 3TON
MAX COAT GLUE WIDTH 210MM

210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H210mm Mouse Cockroach Rat Glue Trap Making Machine 6000pcs/H
