Full Automatic Corrugated Cardboard Paper Flute Laminator Machine
Full Automatic Corrugated Cardboard Paper Flute Laminator Machine
Full Automatic Corrugated Cardboard Paper Flute Laminator Machine
Full Automatic Corrugated Cardboard Paper Flute Laminator Machine
Specifications
Brand Name :
KSPACK
Model Number :
JGF-a3
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negociable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 Set / Month
Delivery Time :
30 work days
Packaging Details :
plastic flim
Product Name :
Laminator
Type :
Automatic type
Glue use :
Special glue
Thickness :
10 mm
Model :
1300 1450 1650
Paper require :
Yes
Container :
one 40 feet container
Layer number :
3 layer or 5 layer
Usage :
Package industry
Raw material type :
Coil type
Description

Full Automatic Carton Box Flute 3 Layer 5 Layer Laminator For Corrugated Cardboard Paper

1.The function of lamator

(1) The machine adopts frequency conversion to regulate speed. PLC centralized control, module conversion, operation control standard

(2) After balancing treatment and testing, the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper, effectively improving the operating accuracy and speed of the machine

(3) The laminator machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported

(4) The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm)

2. The technical parameter of laminator

Specification JGF-a1300 JGF-a1450 JGF-a1600

Maximum Cladding Size

1400*1300mm

1400*1450mm

1400*1650mm

Minimum Cladding Size

400mm*400mm

400mm*400mm

400mm*400mm

Face Paper Require

150 g / ㎡-450 g / ㎡

200 g / ㎡-450 g / ㎡

200 g / ㎡-450 g / ㎡

Button Paper Require

minimum basis weight of 300 g / ㎡- 800 g / ㎡

minimum basis weight of 300 g / ㎡- 800 g / ㎡

minimum basis weight of 300 g / ㎡- 800 g / ㎡
Motor 15 KW 15 KW 15 KW
Weight 4 ton 4.5 ton 4.8 ton

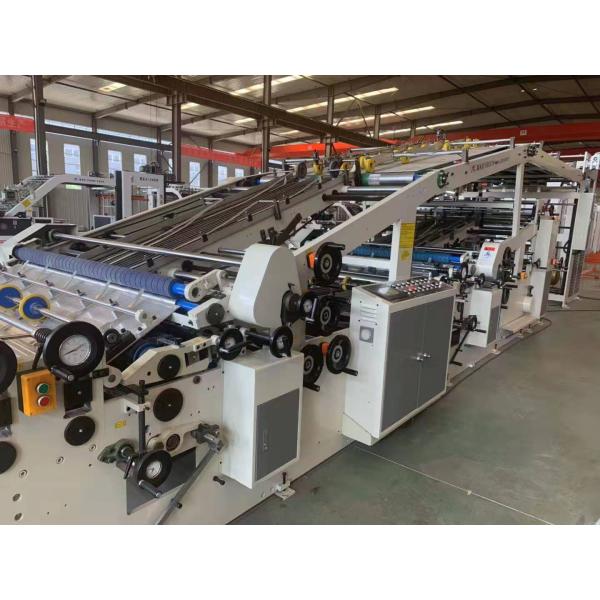

4.The photo of laminator

Full Automatic Corrugated Cardboard Paper Flute Laminator Machine
