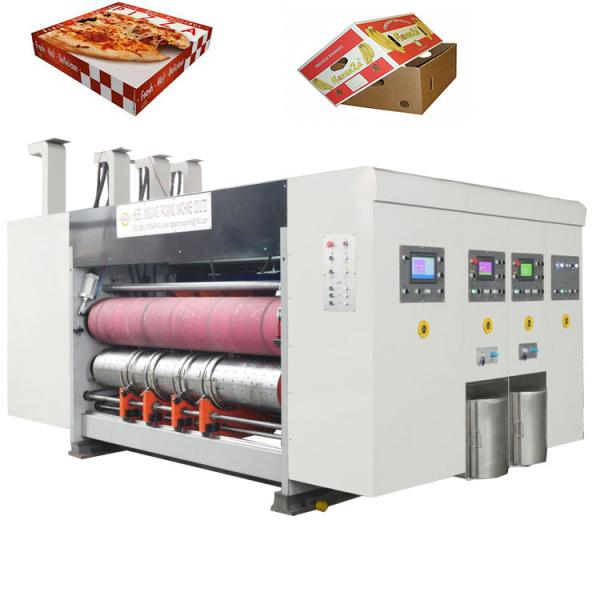

Flexo 1-6colors Corrugated Box Printing Machine Automatic high speed pizza shipping box making machine

The main technical parameters:

Feeder unit:

1. Machine clutch

【1】 electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.

【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine.

【3】 pneumatic interlock device.

【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running)

Printing unit :

1. printing roll (plate roll)

【1】high-quality steel surface grinding, axial reference scale, hard chrome plating.

【2】to do the balance correction, smooth operation, to adapt to high-speed operation.

【3】 ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.

【4】 full version of hanging slot, for 10 mm hanging version of the article.

【5】 loading and unloading printing plate, foot switch electric control is reversing.

【6】 printing roller axial manual traverse, the maximum movement of 10mm.

2 .phase adjustment mechanism

【1】planetary gear structure.

【2】printing phase using computered plc control impurt the digital .(Run, stop can be adjusted), manually adjust the horizontal position, adjust the distance of 10 mm.

Slotting Department:

【1】single shaft sructure

【2】Slotter phase adjustable by computer control 360 degree adjust ( run stop can be adjusted ) ,machine can stock order , manual adjust horizontal 20mm

【3】The knives and crease wheel same time movement electrical control ( input the box size ,automatic adjust)

【4】Slot knives 7mm use ally steel material after heattreatment ,grinding , teeth model knvies ,

【5】Can make the holes attachment ( optional )

Die-cutting Department:

This is the die-cutting

This is the die-cutting (attachment slotting),the die-cutting without the slot knvies is ok

Tool roll (lower roll)

【1】 cast iron surface grinding, hard chrome plating, balance correction, increase operational stability.

【2】die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.

【3】Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer paperboard)

Pad roller (upper roll)

【1】 quick change type pad, wear resistance, long life.

【2】 cast iron surface grinding, hard chrome plated.

【3】 balance correction, increase operational stability.

【4】pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device. (Adjustable swimming speed)

Machine videos :

https://youtu.be/hzM7tS0gzdA
