Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine
Specifications
Brand Name :
KSPACK
Model Number :
SF-280/320
Certification :
CE
Place of Origin :
Cangzhou
MOQ :
1set
Price :
14000-20000USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
10sets per month
Delivery Time :
35-45days
Packaging Details :
plastic ,Iron frame，wooden box
Product name :
corrugated paper machine ,2ply cardboard corrugated machine
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Field maintenance and repair service,Video technical support
Warranty :
1 year
Color :
White and orange
Heating model :
Steam,Oil,Elwctric Heating
Working Speed :
60-80m per minute
Voltage :
Any 3 phase voltage
Delivery time :
35-45days
The width can choose :
1000,1200,1400,1600,1800,2000,2200,2500mm
Delivery port :
Tianjin port
Description

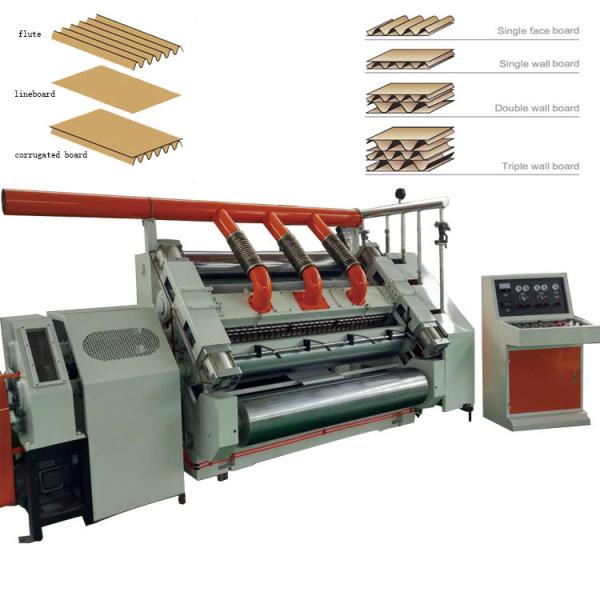

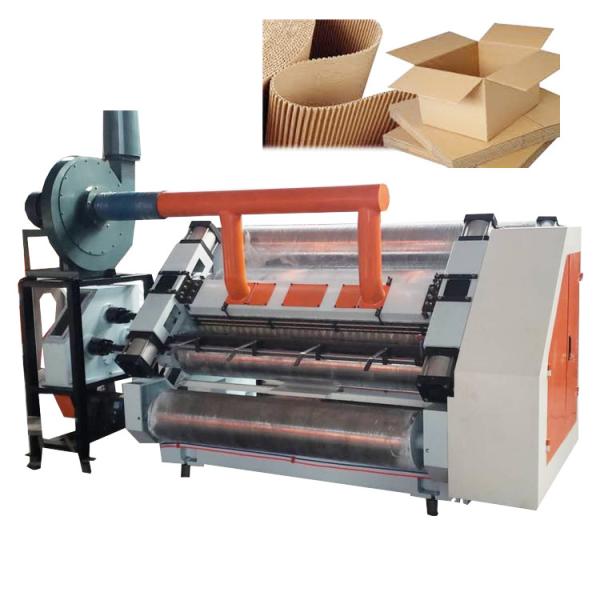

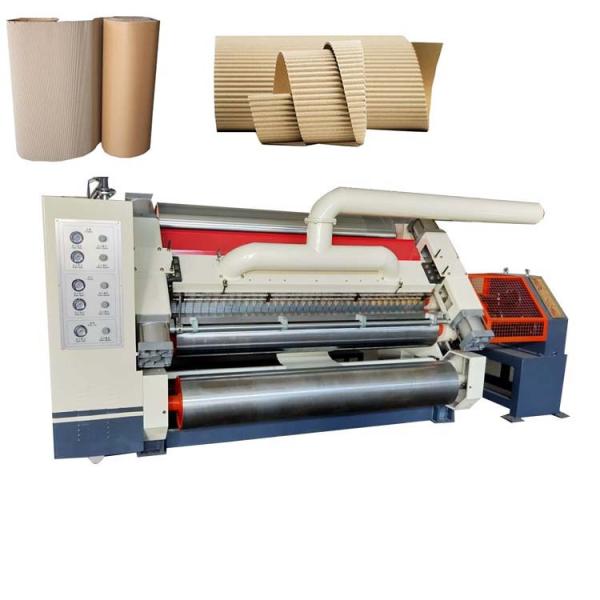

Semi auto fingerless vacuum absorb corrugated single facer 2 ply corrugated cardboard prodution line

1)Introduction

Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.

2)Characteristics

1. Cover vacuum suction.

2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.

3. No gear transmission.

4. Glue roll is lifted and lowered pneumatically.

5. Independent glue clean device and electric glue-separate board to control the width of glue.

6. Manually regulate or electrically regulate the display device.

7. Lubricated by high temperature lubricate grease.

8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.

9. Pressure roll is medium- frequency quenched and chrome-plated.

10. Width 1400mm

11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.

12. Universal joint type : 360 degree rotate , more stable .

Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine

13. Adjust glue by electrical , not manual .

Semi Auto Fingerless Vacuum Absorb 2 Ply Single Facer Corrugated Machine

Technological Parameters:

Working Width 1200mm 1400mm 1600mm 1800mm 2000mm
Heating method Oil heating / Steam heating/electrical heating
Design speed 80m/min
Economical speed 45-60 m/min
Compress-air pressure 0.4-0.9MPa

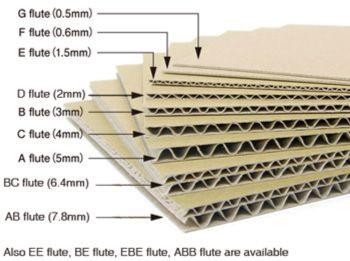

Flute type Standard flute UVE Flute
Standard spec. A,B,C,E,F
For other type and model, we can produce as customer’s requirement.
Corrugated roll diameter (mm) 280
Wall Thickness (mm) 130
Type Vacuum Absorb
Roller material 48CrMo alloy, Heat treated
Machine Size (mm) 3050*1300*1700 3300*1300*1700 3550*1300*1700 3800*1300*1700 4050*1300*1700
