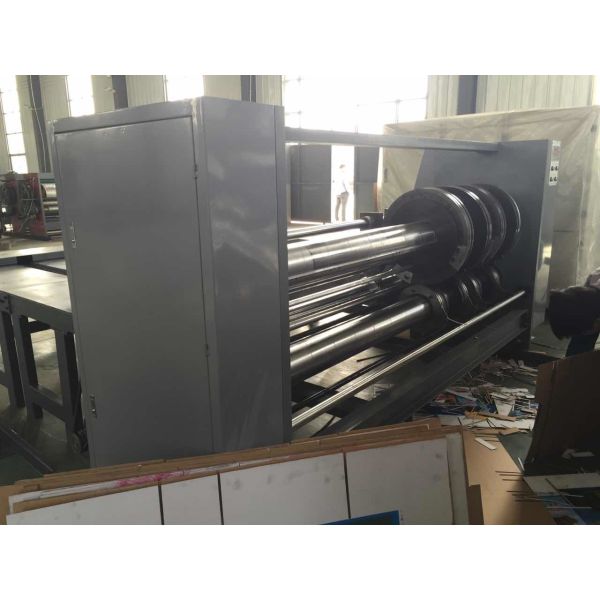

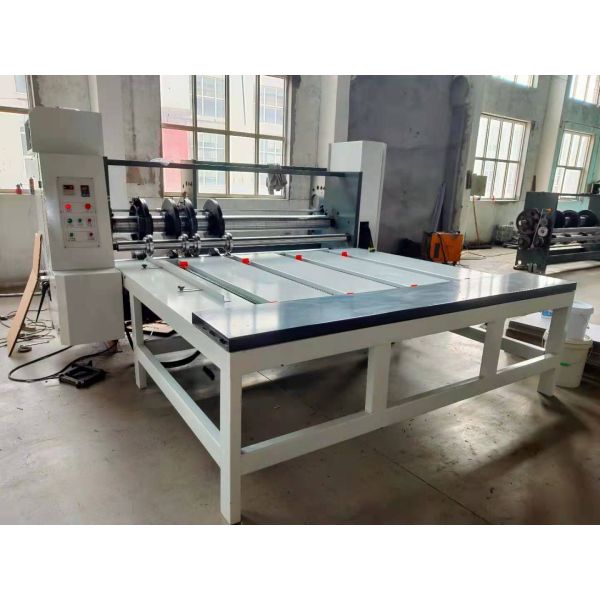

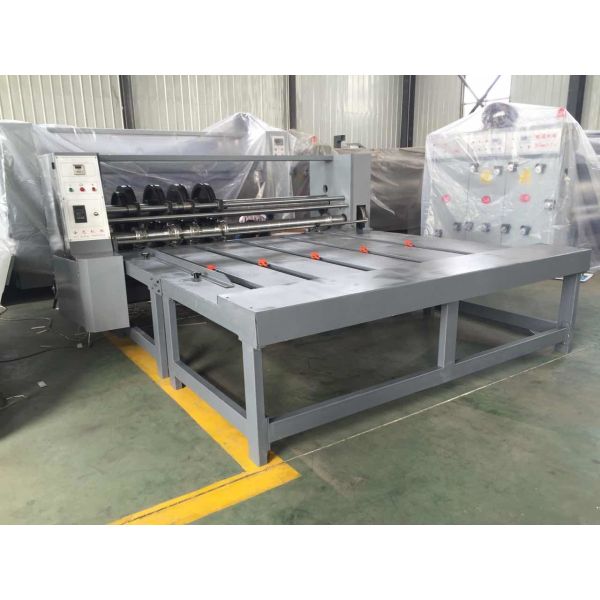

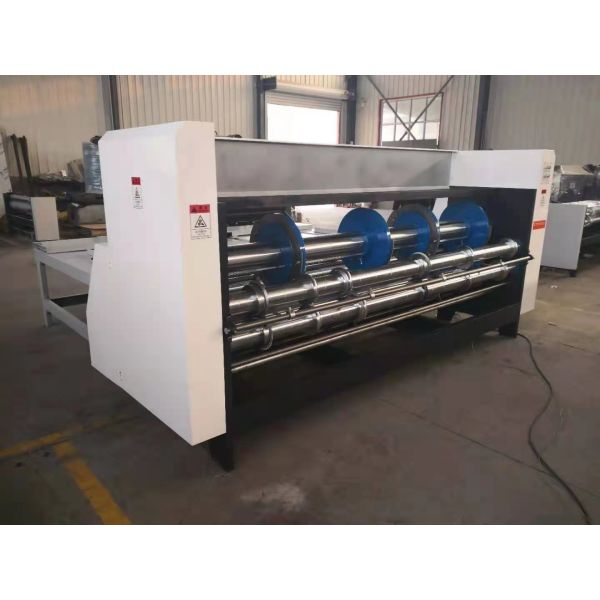

Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Specifications
Brand Name :
KSPACK
Model Number :
KYB
Certification :
CE
Place of Origin :
Cangzhou
MOQ :
1set
Price :
usd 5000-15000 set
Payment Terms :
T/T, L/C
Supply Ability :
10sets per month
Delivery Time :
35-45days
Packaging Details :
plastic ,Iron frame，wooden box
Key word :
Chain feeder slotting machine
Usage :
Corrugated cardboard slotting corrugated carton box making
Features :
Easy operate low cost small location
size :
length: 900/1200/1450/1600/1800mm width: 1800/2000/2200/2400/2600/2800/3000mm
Colors :
Many colors can choose
Voltage :
Any 3 phase voltage
Delivery time :
35-45days
Delivery port :
Tianjin port
Language :
Chinese/English/Spanish/Russian/French
Description

Semi auto chain feeder Synchronous adjustment corrugated carton box rotary slotting machine

Machine characteristics
This series of FYQ-B corrugated board slotter machine , is comprehensive production equipment which integrate several process such as cutting corner,crease line and slicing the side .option the handle make

the machine characteristic:

1.feeding single paperboard by hand ,general flexual paperboard is applicable too.

2. phase mutually:

3. Slicing the Corner, opens the slot knife can 360. positive turn and reverse turn,circularly adjusted ,with manual handle,convenient to adjust ,reliable to lock and open slot precisely ,the adjusting function designed compactly durable and long using life.

4. phase electricity :
Open slot knife 360. positive and reverse turn ,adopt motor micro-adjusting equipment ,convenient to operate, accurate adjusted size ,lock reliable and slotting accuracy.

5. Slot knives with crease movement together , convenient adjust the machine .save the machine adjust time

6. Machine roller all chrome plated after grinding , increase the roller hardness and use life .

Size Passing paper size The min size Depth of slot Speed pcs/min Thickness of pass board Feeding way
FYQ-1800 900X1800mm 200*600mm 225mm 0-60 2-11mm Chain
FYQ-2000 900X2000mm 200*600mm 225mm 0-60 2-11mm Chain
FYQ-1800 1270×1800mm 320*800mm 317mm 0-50 2-11mm Chain
FYQ-2000 1270×2000mm 320*800mm 317mm 0-50 2-11mm Chain
FYQ-2200 1470×2200mm 340*800mm 367mm 0-45 2-11mm Chain
FYQ-2500 1470×2500mm 340*800mm 367mm 0-45 2-11mm Chain
FYQ-2800 1600×2800mm 360*800mm 400mm 0-40 2-11mm Chain
Chain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi AutoChain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi AutoChain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi AutoChain Feeder Synchronous Adjustment Corrugated Slotter Machine Semi Auto
Machine video :https://youtu.be/ChzXjzImwdg
