1000MM Automatic 3/5/7 Ply Corrugated Paperboard Production Line
1000MM Automatic 3/5/7 Ply Corrugated Paperboard Production Line
Specifications
Brand Name :
kspack
Model Number :
KGM
Certification :
ISO,CE
Place of Origin :
cangzhou
MOQ :
1set
Price :
4000-520000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30sets/month
Delivery Time :
50-120days
Packaging Details :
container
size :
1000-2500mm
speed :
30-250m/min
how many layers :
3/5/7ply
flute type :
A-F flutes
paper material :
kraft paper
heating :
oil electric steam heating
steam heating :
boiler
single facer type :
280 380,,,,
glue :
corn glue
Description

automatic 3/5/7ply corrugated paperboard production line

Spec Equipment name Unit Qty 备注
ZJ-V5B Hydraulic shaftless mill roll stand Set 3

Main shaft ￠242mm, hyperbolic heavy-duty rocker arm, tooth-type paper clamping head, multi-point brake, hydraulic drive lift, left-right translation, centering.

The length of the guide rail is 6000mm, and the middle plate is welded.
Paper trolley set 6
R09B Top paper preheat cylinder Set 1 Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
R09B Core paper prehear cylinder Set 1 Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
SF-320C Fingerless type single facer Set 1 The corrugated main roller is ￠320mm, and the material is 48CrMo alloy steel. Tungsten carbide treatment, tile roller module type hoisting in groups. Airbag ballast structure, HRB main bearing, PLC automatic control glue, man-machine interface touch screen, automatic shutdown and pressure relief when paper is broken, steam heating mode.
RG-2-900 Double preheater Set 1 Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
GM-20 glue machine set 1 The diameter of the glue roller is 268mm. Each layer is driven by an independent frequency conversion motor, and PLC adjusts the glue gap and man-machine interface.
ZDF Conveyor bridge set 1 The main beam is 200mm channel steel, and the independent frequency conversion motor drives the paper pulling and conveying, and the suction tensioning. Electric deviation correction.
SM-F Double facer set 1 Frame 360 mm national standard channel steel, hot plate 595 mm *14 pieces, intensive roller design structure. Pneumatic lifting, temperature display, side door, frequency conversion motor.
NCBD Lifting thin knife slitting and creasing machine set 1 Tungsten alloy blade, five-knife eight-wire type, electric knife adjustment, electric wire adjustment. Electric traverse.
NC-150

Computer spiral knife

Crosscutting machine

 set 1 Full AC servo control, energy storage brake, spiral knife structure, oil-immersed gear drive, 10.4 inch touch screen display.
DM-XLM Three-section right angle stacker set 1 Three-stage frequency conversion conveying, automatic counting and stacking discharge, imported high-strength belt output, and standard conveyor rack on the paper side.
ZJZ Glue station system set 1 The pipeline customer shall prepare by himself. The glue making device is composed of a carrier tank, a main tank, a storage tank, a glue feeding pump, and a glue returning pump.
QU Air source system set 1 The customer's own gas source.
ZQ Steam system set 1 Including steam components such as pipeline valves, traps, and meters in the equipment, the customer shall prepare the heat source and pipeline.

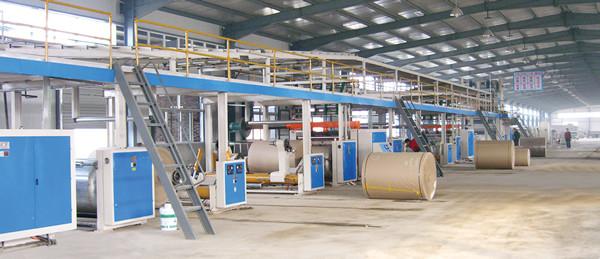

1000MM Automatic 3/5/7 Ply Corrugated Paperboard Production Line
