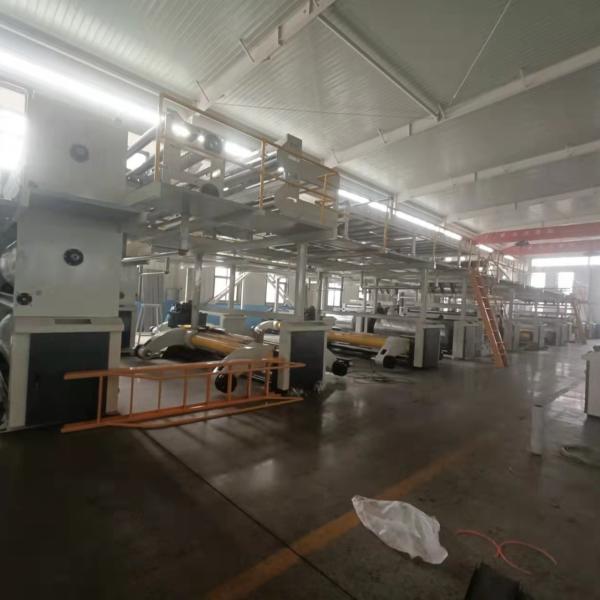

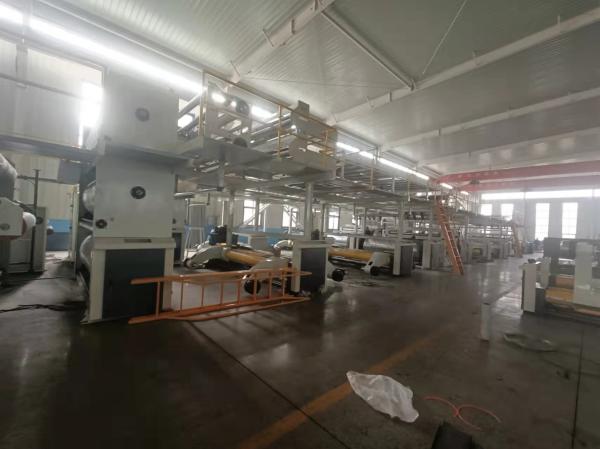

3/5/7 Layers Corrugated board Production Line 1200-2800mm Width
3/5/7 Layers Corrugated board Production Line 1200-2800mm Width
3/5/7 Layers Corrugated board Production Line 1200-2800mm Width
3/5/7 Layers Corrugated board Production Line 1200-2800mm Width
Specifications
Brand Name :
KSPACK
Certification :
CE,ISO9001
Place of Origin :
Cangzhou hebei
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1 SET per month
Delivery Time :
50-150days
Packaging Details :
Plastic
Model Number :
WJ150-2500-5
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Field installation,Field maintenance and repair service
Voltage :
three phrase,380v/220v/440v
Warranty :
1 Year
Product type :
3/5/7-layer corrugated board producing machine
Name :
Corrugated carton production line
Color :
Optional
Description

3/5/7 Layers Corrugated board Production Line


Specification:

Model Name Unit QTY Remark
ZJ-V6

Hydraulic
shaftless
mill roll stand

 set 5 Main shaft ￠270mm, hyperbolic heavy-duty rocker arm, tooth-type paper clamping head, ventilated disc type multi-point brake, hydraulic drive lift, left and right translation, centered.
DXC Paper trolley set 10 The ground rail trolley has a double rail length of 9000mm and is welded by a middle plate.
RG-900 Top paper preheat cylinder set 2 Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
RG-900 Core paper preheat cylinder set 2 Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
SF-320C Fingerless type single facer set 2 The main corrugated roller is ￠320mm, the material is made of 48CrMo alloy steel, the tile roller is modularly hoisted in groups, and is pressurized by maintenance-free airbags, PLC automatic glue control, man-machine interface touch screen display, automatic shutdown and pressure relief when the paper breaks. Steam heating method.
RG-900

Triple

preheater

 set 1 Roller ￠900mm, including pressure vessel certificate. Electric adjustment of wrap angle. The wrapping angle can adjust the heated area of the paper within 360°.
GM-20

Double layers

Glue machine

 set 1 The diameter of the glue roller is 268mm. Each layer is driven by an independent frequency conversion motor, and PLC adjusts the glue gap and man-machine interface.
TQ Heavy conveying bridge set 1 The main beam is 200mm channel steel, and the independent frequency conversion motor drives the paper pulling and conveying, and the suction type tensioning. Electric deviation correction.
SM Double facer set 1 Frame 360 mm national standard channel steel, chrome-plated hot plate 595 mm *16 pieces, intensive roller design structure. Pneumatic lifting, upper and lower belt automatic correction, temperature display, side door, frequency conversion motor.
NCBD NC Thin knife slitting set 1 Tungsten alloy blade, five-knife eight-wire type, zero-crimping type. The full servo computer automatically arranges the knives, and the width of the suction opening is automatically adjusted.
NC NC cutter helical knives set 1 Full AC synchronous servo control, energy storage brake, spiral knife structure, helical gear transmission, lubricating oil pressure protection, 10.4-inch touch screen display.
DM-DLM Big gantry stacking machine set 1 Servo-driven platform lifting, three-stage frequency conversion conveying, imported high-strength belt output.
ZJZ Glue station system set

1

 The pipeline customer shall prepare it by himself. The glue making device is composed of a carrier tank, a main tank, a storage tank, a glue feeding pump, and a glue returning pump.
QU Air source system set 1 The customer prepares its own gas source.
ZQ Steam system set 1 Including steam components such as pipeline valves, traps, meters, etc. in the equipment, and customers provide their own heat sources and pipelines.


Model:WJ150-2500-5 layers corrugated board production line:

1 Effective width 2500mm 2 Design produce speed 120m/min
3 Three layer work speed 100-130m/min 4 Five layer work speed 100-120m/min
5 The highest change single speed -----------------
6 Longitudinal separation accuracy ±1mm 7 Cross-cutting precision ±1mm

Remark

 Speed the above targets required to achieve:effective width2500mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.
Glossy paper index 100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%)
Core paper index 80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
In paper index 90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%)
9 Flute combination
10 Steam requirment

The maximum pressure

16kg/cm2

Common

pressure10-12kg/cm2

 use4000kg/Hr
11 Electricity demand AC380V 50Hz 3PH Installed capacity≈220KW Prime Power≈150KW
12 Compressed air The maximum pressure 9kg/cm2 Common pressure4-8kg/cm2

use1m3/min
13 Space ≈Lmin91m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)
