CNC Automatic Parallel Paper Tube Forming Machine Core Paper Tube Making Winding Machine
CNC Automatic Parallel Paper Tube Forming Machine Core Paper Tube Making Winding Machine
CNC Automatic Parallel Paper Tube Forming Machine Core Paper Tube Making Winding Machine
CNC Automatic Parallel Paper Tube Forming Machine Core Paper Tube Making Winding Machine
Specifications
Brand Name :
KS
Model Number :
KS-350
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 set each month
Delivery Time :
20 working days
Packaging Details :
machine corvered with plastic sheet , packed in wooden case box
Type :
CNC type , computer control
Product name :
Paper tube making machine
Gluing method :
Double side gluing
Output Paper :
paper core , paper tube
Power Consumption :
5.5kw
Thickness Of Tube :
2-15（mm）
Operator :
1-2 persons
Paper Layer :
3-25layer
Machine Function :
tube making machine
Description

CNC Automatic Parallel Paper Tube Forming Machine Core Paper Tube Making Winding Machine

1.Main characters for Automatic Spiral Paper Core and Tube Production Line with Online cutter Spiral Paper Tube Making Machine

Automatic stop function; 3. Automatic transmission and automatic reply when cutting; 4, computer PLC control, with remote control
port; 5, multi-point operation panel or digital remote control function, operation is very convenient; 6, round knife active
cutting, more stable incision, more stable performance; 7, more than 80 function Settings, arbitrary setting machine operation; 8,
stainless steel rubber basin, polypress rubber knife, high carbon steel rubber knife. Durable; 9. Automatic gluing.
2.Important spec for Automatic Spiral Paper Core and Tube Production Line with Online cutter Spiral Paper Tube Making Machine
1.Core thickness :3-20mm
2.Min cutting core length :38cm , 30cm also ok but speed will be very slow
3. Core diameter :38-155mm
4.Mould length :2.5 meters
5.Printing machine : Single color , can printing on top layer , also can printing in inner layer
6.Glue unit: Stainless steel automatic circulation double-sided gluing
7.Cutting blade :Single blade
8.Distance between paper tube and cutting unit :1.6 meter
9.Paper Layer :3-32 ply 10.Speed :76 core ID with 15mm thickness can guarantee 15 meters per min 11.Bearing :All use SKF or SKT 12.Wifi remote control

3.Brief introduction for Automatic Spiral Paper Core and Tube Production Line with Online cutter Spiral Paper Tube Making Machine

Paper tube machine is a machine for producing paper tubes. The paper tubes produced are used in various industries, such as chemical fiber industry tubes, film industry tubes, printing industry tubes, paper industry tubes, leather industry tubes, food packaging tubes, construction industry tubes, exhibition industry tubes, etc.

4.Spec of Paper core making machine picture

Paper layer 3-20layer
Inner diameter of tube 3-20mm
Speed 76 core ID with 15mm thickness can guarantee 15 meters per min
Number of operators 1-3 persons
Intermediate relay/contactor Schneider/Omron/chint
Button Siemens
Bearing Siemens
Switch Siemens
Voltage 380V/220V
Machine cutting length 300-15 meters

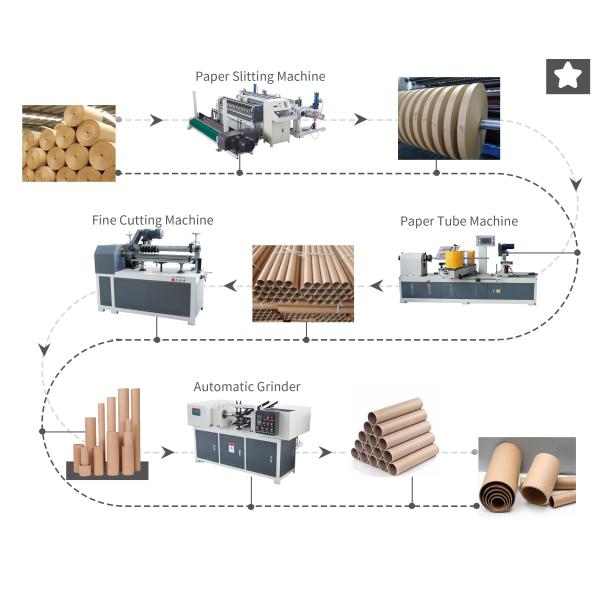

5.Paper core making machine picture

CNC Automatic Parallel Paper Tube Forming Machine Core Paper Tube Making Winding Machine
