Pneumatic Motor Auto Stacking Machine , Flexo Printing Slotting Machine
Pneumatic Motor Auto Stacking Machine , Flexo Printing Slotting Machine
Pneumatic Motor Auto Stacking Machine , Flexo Printing Slotting Machine
Pneumatic Motor Auto Stacking Machine , Flexo Printing Slotting Machine
Specifications
Brand Name :
JCS
Model Number :
JCS-S2200
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets/Month
Delivery Time :
15 Days
Packaging Details :
Wrapped With Film
Type :
Packaging Line
Driven Type :
Electric
Color :
Optional
Condition :
New
Voltage :
220V/380V/440V
Function :
Collect Corrugated Paper
Description

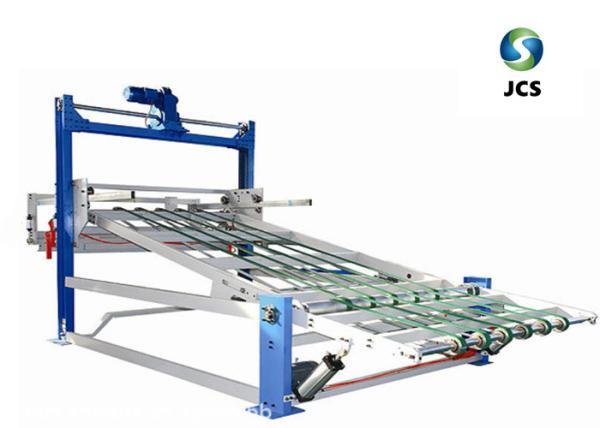

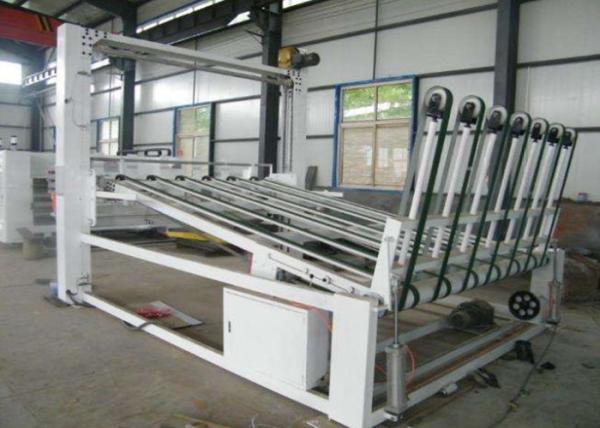

Automatic Corrugated Paper Stacking Machine In Flexo Printing Slotting Machine

Specification

1. Paper- receiving arm

1) Can be operated by hand or automatically.
2) Paper- receiving arm revolves the belt. The belt tension can be set independently without limit by the belt length.

2. The rising and descending of the machine tool platform

1) Driven by the powerful chain.
2) The height of piling is 1600mm.
3) The motor of the rising and descending of the machine tool platform equipped with the brake function , so the machine tool platform can keep the fixed position to prevent falling down.
4) Assemble with heavy iron device to make the rising and descending of the machine tool platform in control to ensure the safty of the operators.
5) The surface corrugated belt can prevent the sliding of the paperboard.

3. Paper- receiving plate

1) Pneumatic motor paper -receiving plate. The paper receiving tray will automatically extend and receive the paperboard while the paperboards are piled to the preset height.
2) The back blocking plank is adjusted by hand.

Data

Application Machinery & Hardware
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/380V
Power: 2.2KW
Weight: 1500KG
Dimension(L*W*H): Depends
stack height: 1600mm
max paperboardlength: 2600mm
max paperboard width: 1450mm
min paperboard width: 300mm
motor power: 3kw
Packing speed: 30-160pcs/min
