Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
Specifications
Brand Name :
JCS
Model Number :
JCS-S1800
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Sets/Month
Delivery Time :
15 Days
Packaging Details :
Wrapped With Film
Type :
Packaging Line
Driven Type :
Electric
Color :
Optional
Condition :
New
Voltage :
220V/380V/440V
Function :
Collect Corrugated Paper
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Description

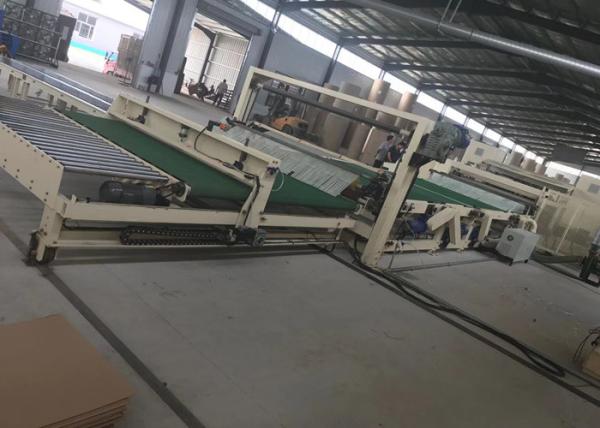

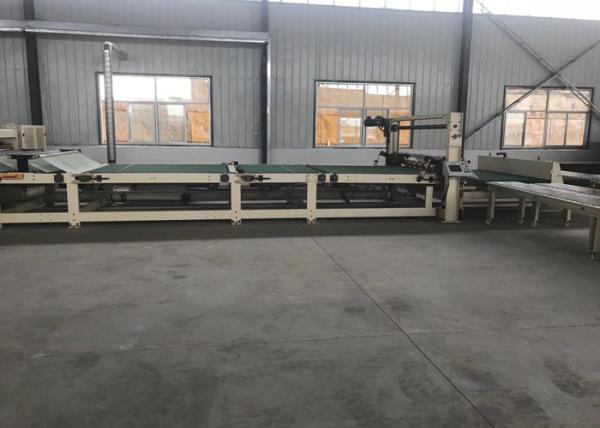

Corrugated Stacker Machine In Production Line For Wide Belt Conveyor

Main Features

1. Simple structure in linear type ,easy in installation and maintation.

2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3. Running in a high automatization and intellectualization,no pollution

Details

1. Working width: 1600-2500 mm, maximum working speed: 200 m/min-250 m/min

2. Maximum stacking length 3000mm, minimum stacking length 500mm, maximum stacking height 1700mm (stacking height must not exceed 3 times the width of cardboard)

3. Automatic stacking of cardboard, horizontal output.

4. Single-layer hanging basket structure and double-layer hanging basket structure.

5. Servo control lifting basket, stable and fast, safe and reliable.

6. Integral wide belt conveyor, smooth and tidy paper conveyor.

7. PLC controls the automatic tracking of production line speed, discharging cardboard, controlling the rise and fall of hanging basket, and controlling the position of baffle to realize automatic batch.

8. Use multiple groups of fiberglass press paper to brush and press paper, and adjust the press condition according to the length of the cardboard.

9. AC variable frequency motor drives the conveyor section, which can automatically track the speed of the production line and make the paperboard stack neatly and smoothly.

10. It can automatically change orders with the support of the birth control system.

11. Stacking control adopts man-machine interface display, which can set relevant data on man-machine interface, and the operation is simple and fast.

12. Baffle automatic positioning, automatic horizontal row.

Wide Belt Conveying Automatic Stacking Machine For Corrugated Carton Packaging
