Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
Specifications
Brand Name :
JCS
Model Number :
JCS-PL-1400
Certification :
CE Certification
Place of Origin :
Made In China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
10 work days
Packaging Details :
Wrapped With Film
Driven Type :
Electric
Keywords :
Mill roll stand
Power :
3KW
Warranty :
1 Year
Condition :
New
Description

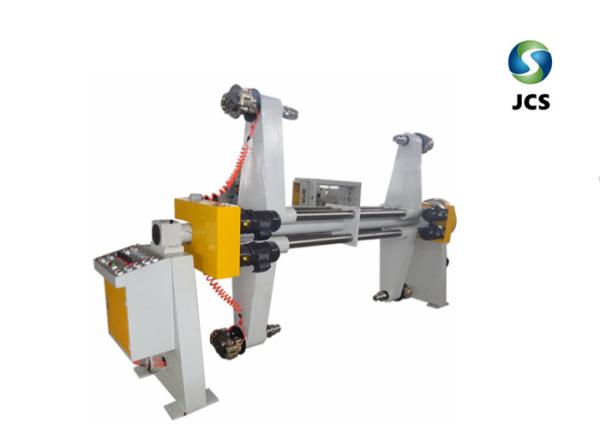

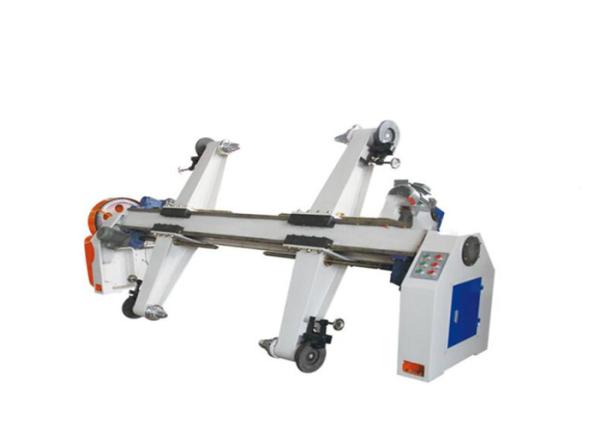

Corrugated Paper Box Shaft Less Mill Roll Stander Making Machine

Product Feature

1. The machine can carry two kraft paper at one time,which can work without brake.
2. reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.feeding kraft / reel paper quickly.
3. brake: pneumatic brake

Spec of stand


1. reel Stand driven by electric
2. kraft paper range:

3. pneumatic Source Pressure(Mpa): 0.4---0.8Mpa
4. power: 380V 50Hz

Spec of electric motor


1 . reel Paper Nipping Motor Power: 500W*4pcs

nominal voltage:380V 50Hz Short Time(S2) Working Type
2. lifting Motor Woking Power: 1.5KW 380 V 50 Hz

Data

max. width

1600mm

min. width

800mm

diameter

max. Φ1500mm

max. weight

2000Kg(one side)

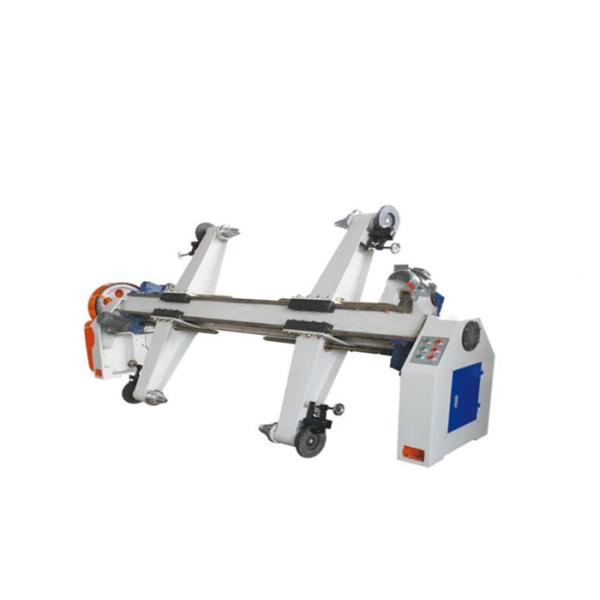

Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification
