High Effiency Machine Spare Parts , Single Facer Equipment Spare Parts
High Effiency Machine Spare Parts , Single Facer Equipment Spare Parts
High Effiency Machine Spare Parts , Single Facer Equipment Spare Parts
High Effiency Machine Spare Parts , Single Facer Equipment Spare Parts
Specifications
Brand Name :
JCS
Model Number :
#320
Certification :
ISO
Place of Origin :
Made In China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 PCS/Month
Delivery Time :
7 Days
Packaging Details :
Wrapped With Film
Condition :
New
Warranty :
1 Year
Function :
For Corrugated Cardboard Making
Feature :
High Effiency
Product Name :
Tungsten Carbide Corrugated Roller
Flute Type :
A / B / C / E / F
Description

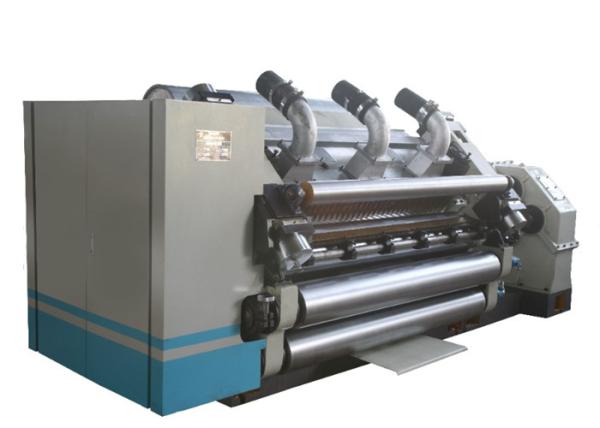

Tungsten Carbide Corrugated Flute Roller For Single Facer Machine Spare Parts

Product Description

1. Vacuum suction paper leading features perfect flute formation.

2. The individual oil-bathed driving box, universal joint drive, which is separated from dynamics oscillating, improves running stability.Frequency-changing motor main drive and vacuum suction blower type wind machine.

3. Individual applicator roll clean up device and electrical glue pan dams.Auto-circulating glue feeding system. The drive motor separately runs.

4. The flute forming unit and glue application unit are designed particle structure.Which simplifies maintenance cleaning assembling and disassembling of corrugating roll.

5. The whole machine is controlled by PLC. The touch screen show running date.

6. Main bearings are all lubricated by high temperature. Lubricating pease.

Specifications

Speed

Φ320:80-100 m/min

Φ380:100-150 m/min

Width of Paper

1400,1600,1800,2000,2200mm

Diameter of Corrugated Roller

Φ320mm /380mm Optional

Material of upper-lower Corrugating roller

48CrMo high quality alloy steel,rigidity HRC58°-60°

Processing

The surface of upper-lower roller is whetted and plating chrome, annealing

Style of Transmit cardboard

Vacuum adsorbable style, with wind control Adjusting

Transmission

Gimbal Drive Type

Style of Control Roller

Pneumatic control the upper roller, pressure rollerand glue roller

Lubrication

Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears

Type of Corrugated Roller

(U/V) ACBEF

Power

11 kw

About gear

Close style gear transmission oiliness lubricated, long use life of gear

Style of adjusting glue quantity

Electrically adjust the figure show quantity or manually adjust

Glue roller and upper roller are designed to groups guideway slipage, load-unload is convenient and swift
