Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Low Noise Thin Blade Slitter Scorer Machine 2400 Max. Cut Width Reliable Performance
Specifications
Brand Name :
JCS
Certification :
CE Certification
Place of Origin :
Dongguang County, Cangzhou City, Hebei Province
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C , T/T
Delivery Time :
10 days
Packaging Details :
Wrapped With Film
Model Number :
JCS-BD-
Speed :
180 m/min
Voltage :
380V
Automatic grade :
Semi-Automatic
No.s of slitting scoring :
Four blades six lines
Operation mode :
Electric type
Genre :
Thin blade slitter scorer
Description

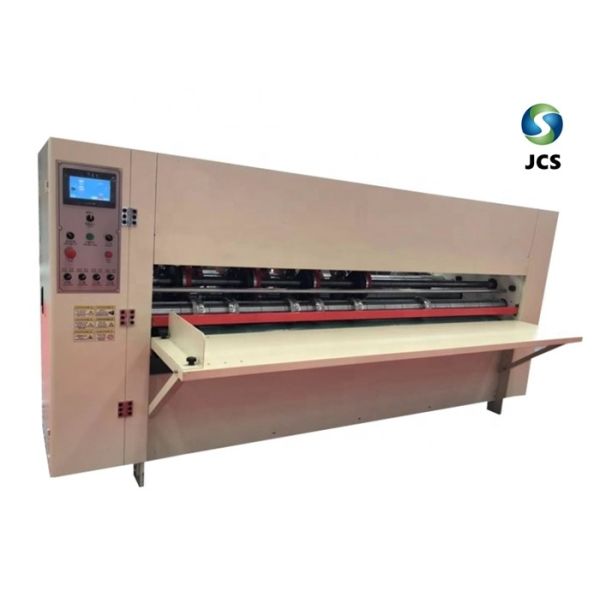

Thin Blade Slitter Scorer Machine 2400 Max. Cut Width 120 Min Cut Width

Function introduction

1 . paper feeding can be configured with manual or automatic paper feeding table
2 . pre-pressing wheel and wire-pressing wheel can be adjusted independently and automatically
3 . has manual / automatic sharpening
4 . manual adjustment of cardboard height and pressure

Features

◆ slitting section : using high-quality tungsten steel alloy blades, long service life, the cut-out cardboard cuts are neat without fracturing and burrs.
◆ electrical appliances adopt domestic brands or imported products with reliable performance.
◆ better adapt to all kinds of cardboard, and the paper feeding is stable and accurate.

Main specification

Model JCS-BD-2200

No.s of slitting scoring

four blades six lines

max.production speed

 20-40 PCS/min

max.feeding width

 one-blade and two-blade maximum cutting 2000mm

max.slitting width

 2000mm

min.slitting width

 70/250/70mm
130/130/130mm

min.feeding length

 380mm

min.scoring distance

 40/70/40mm

gap adjustment

manual

main motor power

 5.5KW-4

dimension (l*w*h)

 800*3100*1400mm

overall weight

 1400kg
