High Efficiency Corrugated Box Printing Machine With Auto Feeder Energy Saving
High Efficiency Corrugated Box Printing Machine With Auto Feeder Energy Saving
High Efficiency Corrugated Box Printing Machine With Auto Feeder Energy Saving
High Efficiency Corrugated Box Printing Machine With Auto Feeder Energy Saving
High Efficiency Corrugated Box Printing Machine With Auto Feeder Energy Saving
High Efficiency Corrugated Box Printing Machine With Auto Feeder Energy Saving
Specifications
Brand Name :
JCS
Model Number :
JCS-TB-2000
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets/Month
Delivery Time :
30 Working Days
Packaging Details :
Wrapped With Film
Automatic Grade :
Full-automatic
Type :
Carton Printer Slotter Die Cutter Machine
Voltage :
220V/380V/440V
Plate Type :
Letterpress
Function :
High Efficiency
Printing Material :
Corrugated Cardboard
Description

Energy Saving Corrugated Express Box Printing Electric Rotary Die Cutting Machine

Summarize

The machine composed with paper feeding ,printer,die-cutter,can finish the 3 / 5ply corrugated paper printing and slotting procedures in one time.


Detail

Lead edge feeder unit


1. Automatic light pressure paper feeding has the proprietary technology,no damage to corrugated line,easy to paper feeding,more precise.(can also choose free pressure as customers requirement.)
2. It Can process hard thinner sheet include 3ply E flute board
3. Auto feeder with suction device ,can adjust the blast capacity as per different paper curve condition ,ensure smooth feeder paper.

Printing part


Printing roller


1. High quality steel plate material, surface grinding and hardness .
2. Optional: (Full format plate groove, gear fixed test paper plate , for 9mm hanging plate,)
3. Fast loading and unloading printing plate, foot switch electric control positive and negative.)
4. Anilox roller and printing roller manual adjustment of gaps dial,adjustment range is 1-8mm

Phase adjustment


1. Planet is a gear mechanism
2. The printing phase is adjusted by electric digital input type 360, and the machine can be adjusted byrunning or stopping.

Die-cutter unit

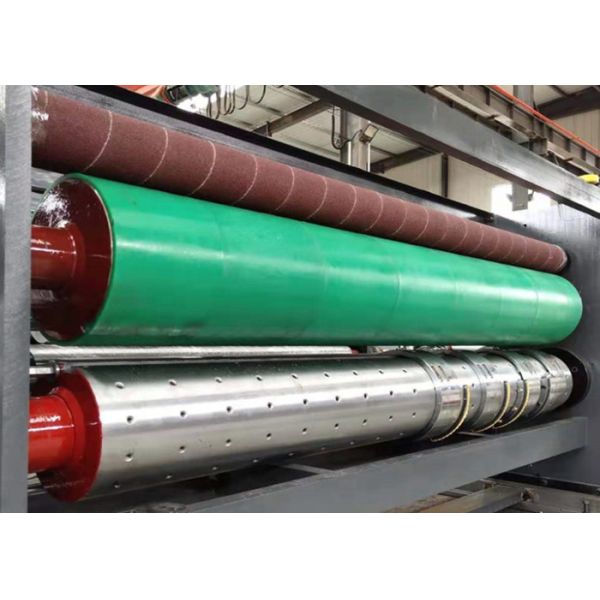

1. Rubber roller and die-cutter roller use quality steel with surface grinding, hard chrome plated.
2. Match the automatic lifting up and down device of the pressure-type rubber roller of the paper feeding system. (The rubber cushion roller will fall when feeding paper, and will rise when the paper feeding is stopped, to ensure correctly die-cutter each cardboard.
3. Mechanical transverse movement device, range is 40mm.
4. Phase adjustment device,planet is a gear mechanism.

Data

Machine design speed 180pcs/min.
Economic speed 160pcs/min.
Max. feeding size 920x2000mm
Min. feeding size 210x500mm
Skip feeding size 1145x2000mm
Max. printing size 920x1900mm
Wallboard thickness 40mm
Wallboard inner width 2200mm
Printing roller size Ф288x2000mm
Min. carton height 50mm
Max. carton height 460mm
Single knife length 225mm
Upper slotter knife size

60 degree with angle x L 153mm

30 degree without angle x L 72mm
Positive slotter knives direction L 85 x W85 x H50mm
Negative slotter knives direction L160 x W60 x H50mm
Overprinting precision ≤±0.75

Slotting and diecutting precision

 ≤±1.5

Standard printing plate thickness

 6mm
