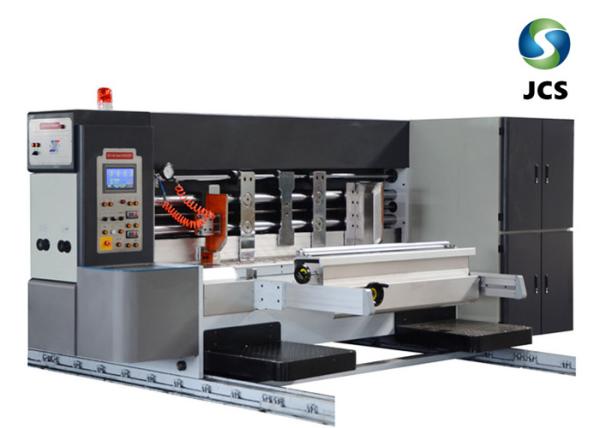

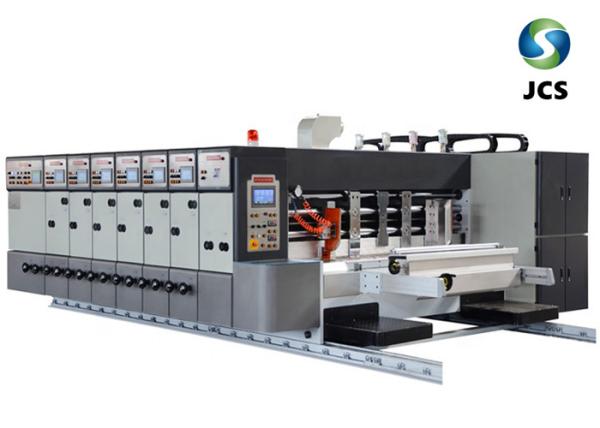

Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
Specifications
Brand Name :
JCS
Certification :
CE
Place of Origin :
Dongguang County, Cangzhou City, Hebei Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
10 days
Packaging Details :
Wrapped With Film
Voltage :
380V
Type :
Printing Machine
After-sales service provided :
Free spare parts
Warranty :
1 year
Description

Corrugated Box Printing Machine Automatic Printer Machine For Cardboard

Main Features

The whole machine is adopted international famous brand appliances and computer software,the quality is stable and
reliable.Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can be stored 999 orders in advance)There is lack of ink alarm device and the real-time monitoring for the ink working condition system .

Main Specifications

model unit 2400 2600 2600 2800
roller diameter mm φ 305 φ 405 φ 480 φ 530
max. feeding size mm 900 * 2300 1200 * 2500 1400 * 2500 1600 * 2300
max. printing area mm 900 * 2100 1200 * 2300 1400 * 2300 1600 * 2500
feeding paper by partition mm 950 * 2300 1250 * 2500 1470 * 2500 1650 * 2700
min. feeding size mm 260 * 650 350 * 650 400 * 650 500 * 650
feeding thickness mm 2 - 11 2 - 11 2 - 11 2 - 11
print plate thickness mm 7.2 7.2 7.2 7.2
max. machinery speed pcs / min 220 200 180 150
economic printing speed pcs / min 200 180 160 130

Edge- Leader feeding Unit

1.Equipped with advanced feed system
2.Draught fan can regulate wind power. It suits all kinds of paperboards.
3.Left and right baffles can adjust.
4.Dust pelletizing system can clean dust quickly.
5.Rubber roller use quick release so as to change quickly.
6.Machine with locks move and install overload protection.

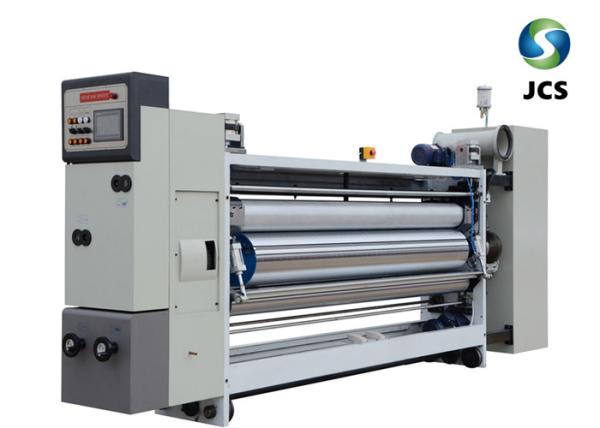

Printing Unit

1.Printing wheel (printing plate form wheel) phase position adjust by planetwheel, twirl 360°adjust electrically, itcan stop at
operation or stop. PLC control system, setups are return to zero,scrape form memory, automatic reset and phase position adjust after enteringvalues.
2.Printing roller can move from left to right, by ±5MM. printing surface with scale mark make hang form and distancemeasurement
easily.
3.Install foot pedal control roller rorate. It is easy to change form,scrape form and pull switch so as to ensure staff safety.
4.Anilox roller use “ Haili” to ensure ink distribution effect and printingquality.
Rubber shaft use Dongjun, waist drum type, good ink distribution effectand good printing quality.
5.Optional: high reticle ceramic anilox roller with doctor blades, single scrapetype, closed scraper cavity. They can save more
ink and ensure .

Slotting Unit

1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions, it makes slotting moreconvenience and high efficiency.
2.Synchronous tool apron is made ofhigh-precision screw with a linear slide rail, which can move left and rightstably and precisely so that the slotting cutter can be adjusted smoothly.
3.The copper folk of cutter is designed forautomatically compensating gap device, which prolongs the service life ofcopper fork.
4.Multiple-spacing device is installed in case ofknife collision.
5.Automatic inflatable paper-carving knife.1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions.
Die cutting Unit

1.Using servo speed to make rubber mat speed and knife tool speed same, toensure paperboards die-cutter size exactly, to increase
die-cutting quality andlengthen rubber mat lifetime.
2.Rubber mat moves from left to right. It can adjust main machine operationspeed.
3.Lengthen rubber mat lifetime.
4.Die-cutting roller surface have stainless steel dental crown to fix knifetool.

Corrugated Box Flexographic Printing Machine , Automatic Printing Machine For Cardboard
