4 / 6 Points Carton Folding Gluing Machine Full Automatic Type Simple Operation
4 / 6 Points Carton Folding Gluing Machine Full Automatic Type Simple Operation
4 / 6 Points Carton Folding Gluing Machine Full Automatic Type Simple Operation
4 / 6 Points Carton Folding Gluing Machine Full Automatic Type Simple Operation
Specifications
Brand Name :
JCS
Model Number :
JCS-ZX-A1450
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
One Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets/Month
Delivery Time :
20 Days
Packaging Details :
Wrapped With Film
Driven Type :
Electric
Condition :
New
Type :
Gluing Machine
Min. Paper Size :
135*60mm
Warranty :
1 Year
Automatic Grade :
Automatic
Paper Material :
200-800 gsm / cardboard 200-800 gsm
Voltage :
220V/380V/440V
Description

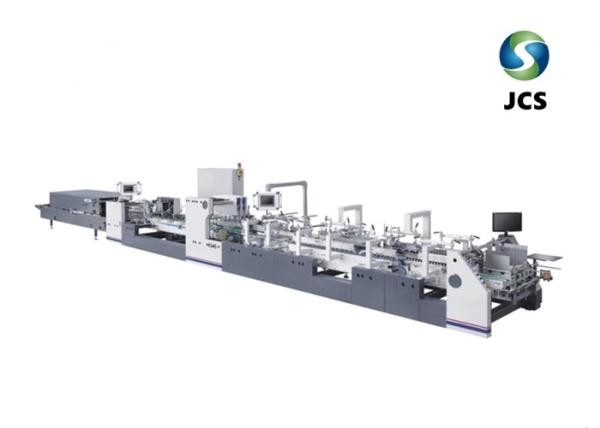

Full Automatic 4 / 6 Points Carton Folding Gluing Packaging Machine

Brief description

JCS-ZX-A series Box Gluing & Folding Machine is high speed box making machine, widely used for package box/cartons for food, medicine, health care products, cosmetics, alcohol, light industrial products such as the box, are basically using the gluer machine for paste box processing.

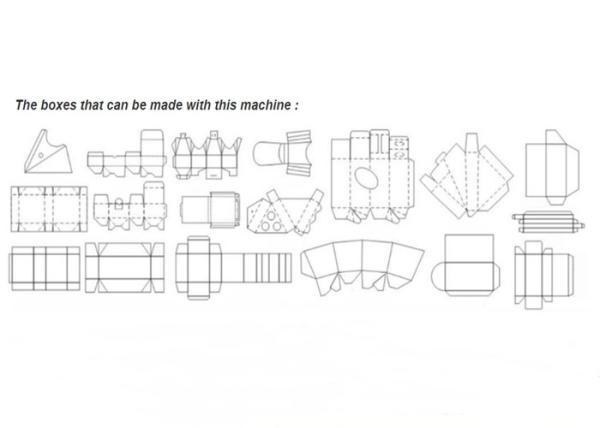

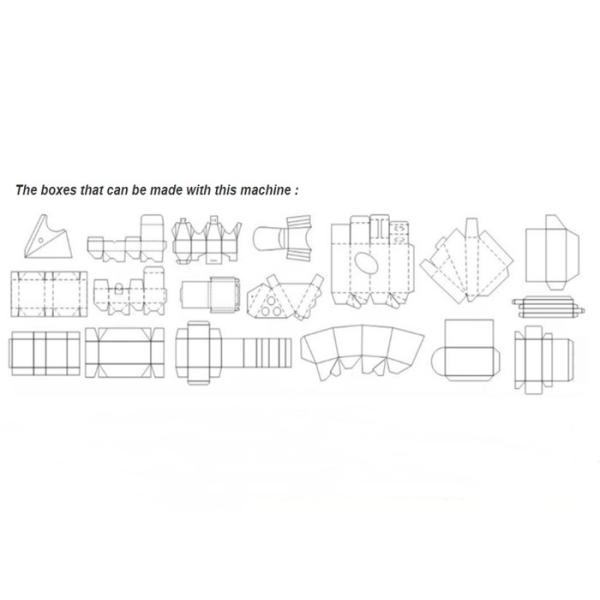

PHH box gluing and folding machine absorb the latest technology and experience at home and abroad, using modular design and the latest processing technology, electrical adopt PLC control, simple operation, the host motor frequency control speed, output controlled by servo motor, the whole structure is reliable.This type machine focus on making 4-corner box, 6-cornerbox, also for straight line box, hook(bottom lock) box, side glue box, box inside box, mini box, CD box, four corner box, six corner box, and other special (irregular) box.

Data

Model

JCS-ZX-A800

JCS-ZX-A1100

JCS-ZX-A1450

Paper Material:

Cardboard 200~800 gsm, corrugated board reach E-flute & B-flute.

200-800g/m²E,B

Glue

Cold Water Glue

(W*L)

Max Paper Size:

800*900 mm

1100*1000 mm

1450*1000 mm

Min Paper Size:

135*60

270*60

270*60

85*60

135*60

135*60

Max Belt Speed:

375m/minute

375m/minute

300m/min

Power Source:

3-Phase 380V 50HZ

Total Power:

15KW (4-times fold bottom lock box, 4 or 6-corner box,)

11KW(Twice fold bottom lock box, )

11KW(twice fold one side glue box)

4-corner or 6-corner box,

4-times fold bottom lock box,

10Ton

10.5Ton

11Ton

Twice fold & bottom lock box,

8.5Ton

9Ton

9.5Ton

twice fold one side glue box,

7.5Ton

8Ton

8.5Ton
