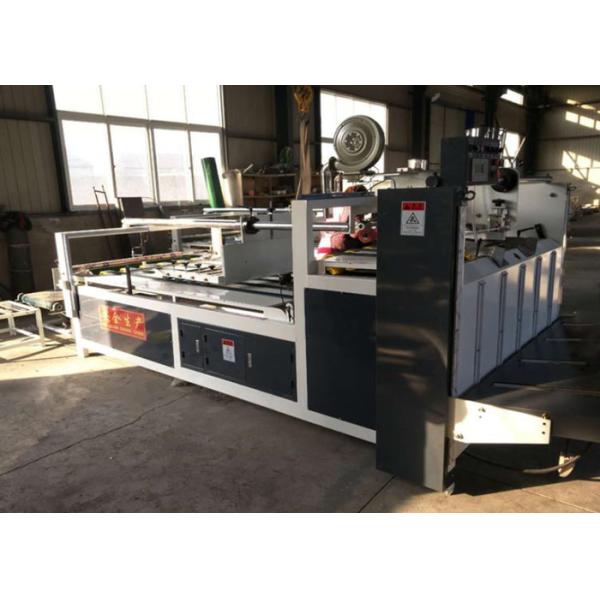

Cast Iron Automatic Folder Gluer Machine High Effieciency Reliable Operation
Cast Iron Automatic Folder Gluer Machine High Effieciency Reliable Operation
Cast Iron Automatic Folder Gluer Machine High Effieciency Reliable Operation
Cast Iron Automatic Folder Gluer Machine High Effieciency Reliable Operation
Cast Iron Automatic Folder Gluer Machine High Effieciency Reliable Operation
Cast Iron Automatic Folder Gluer Machine High Effieciency Reliable Operation
Specifications
Brand Name :
JCS
Model Number :
JCS-ZX-S2800
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
1 Ser
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Set/Month
Delivery Time :
10 Days
Packaging Details :
Wrapped With Film
Application :
Carton Box Forming Machine
Voltage :
220V/380V/415~440V
Automatic grade :
Semi-Automatic
Warranty :
1 Year
Function :
High Effieciency
Material :
cast iron
Description

Semi Automatic Corrugated Box Folding And Gluing Machine With Copper Glue Box

Main Detail


The semi-automatic glue box machine is a new type of environmental protection equipment for carton production in recent years. It is mainly used for carton bonding and abandoning the traditional copper nail binding method, which improves production efficiency and good product quality.Main frame structure: frame, lifting workbench, front section conveying device, front section correction device, middle section conveying device, middle section pressing device, finished side output device.


Characteristics


1. Simple and reliable operating system.
2. Novel and smooth overall design.
3. Fast size conversion.
4. Can automatically count, package settings.
5.The width of the carton plus the minimum can be about 240mm.

Product Structure


2800 semi-automatic glue box machine is made of excellent processing technology and high-quality steel processing. The mechanical efficiency is 40 pieces per minute. The intelligent double digital display counter is used to automatically stack the side output.The paper feeding table can be lifted automatically or pedaled, which is convenient and quick to improve production efficiency.After the glue is glued, it is pressed and dried by the fan. After the calibration, the electronic sensor automatically outputs to the interrupted press. After pressing, it is controlled by photoelectric calculation. After setting the required number of finished products, it is automatically output horizontally.The automatic correction unit adopts a 180-degree pen-hold to effectively correct the scissors difference caused by the inaccurate paper. Automatically counts and stacks neatly.

Data

Model
JCS-ZX-S2800
MAX. L
2800mm
Min. L
600mm
Max. H
1500mm
Min. H
260mm
Min a=b
150mm
High of feeder
900mm
Use Power
3kw
Machinery speed
60 m /min
