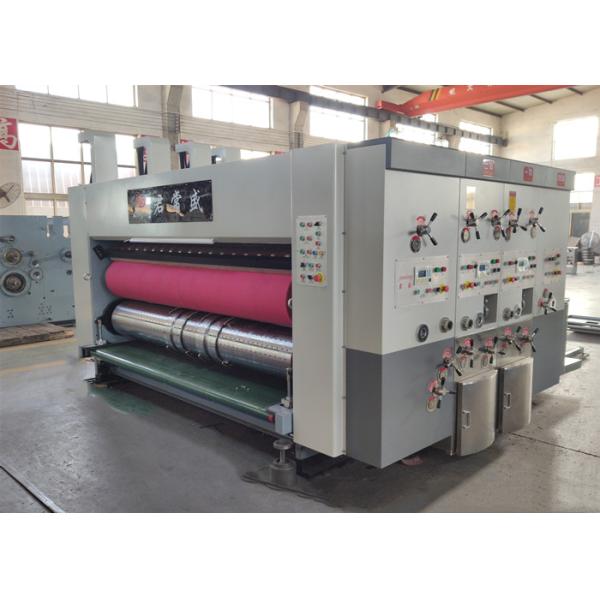

Digital Corrugated Flexo 4 Colors Printing Slotting Rotary Die Cutting Machine

Summarize

The machine for printing words and images. Modern presses are usually made up of plates, ink, embossing, and paper feeding (including folding). The principle of it is to make the printed text and image printed on the printing press, and then apply the ink to the printing plate with words and images, and then directly or indirectly to the paper or other printed materials (such as textiles, metal plates, plastic, leather, wood, glass, and ceramics). In order to reproduce the same print as the printing plate. The invention and development of printing machines play an important role in the transmission of human civilization and culture.

Main Feature

High precision bevel gear,adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear,transmission gear of high strength, good wear resistance, low noise, longtime ensure the machine rotation precision.Lubrication adopt closed type spray lubrication system, to ensure transmission accuracy and use-life

Detail

Automatic front edge paper feeder (China Brand)

1. Leading edge paper feeder mechanism can reduce the blocking phenomenon greatly in the process of cardboard feeding.

2. Main motor is controlled by variable frequency converter, power saving, low noise.

3. Suction fan auxiliary feeding, to ensure smooth into curved board, air volume can be adjusted according to the size of board on each section, guarantee the ability of vacuum force, make the cardboard more accurate.

4. After stop using manual adjustment, baffle, baffle around electric clearance adjustment.

Printing department(4 groups)

1. Printing roller

1. Outer diameter: Ø408.4(incl. edition),seamless steel pipe, with surface grinding, hard chrome plating.

2. Printing roller made of high quality steel, with surface grinding and hard chrome plating.

3. Dynamic balancing correction, stable operation.

4. Automatic locking on adjustment of pressing roller space, adjust scope is 0-11mm.

2. Anilox roller : Ø216mm(as per customer required)

1. With surface grinding on the steel pipe,pressing checkered, chrome plating.

2. Dynamic balancing correction, stable operation.

3. Matched with surpass clutch, distribute and clean the ink more easily.

3. Rubber roller

1. Outer diameter: Ø208mm.

2. Wrapped with wear-resisting rubber on the steel pipe surface.

3. Paper feeding roller adopt auto locking mechanism, scope is 0-11mm.

4 Colors Printing Slotting Rotary Die Cutting Machine.
