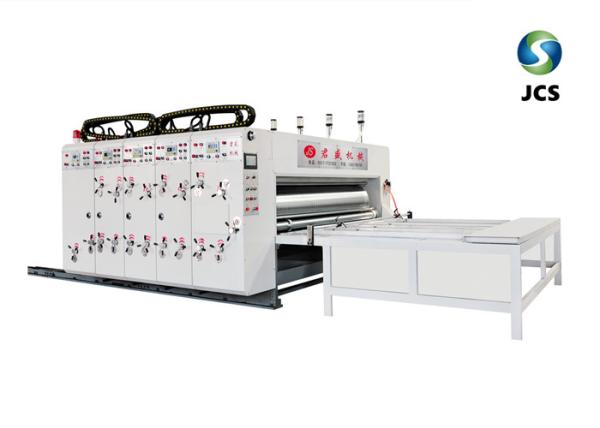

Semi Automatic Flexo Printing Machine For Corrugated Carton 220v 380v 440v
Semi Automatic Flexo Printing Machine For Corrugated Carton 220v 380v 440v
Semi Automatic Flexo Printing Machine For Corrugated Carton 220v 380v 440v
Semi Automatic Flexo Printing Machine For Corrugated Carton 220v 380v 440v
Specifications
Brand Name :
JCS
Model Number :
JCS-LT-1224
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Wrapped with film, 3 Sets In One 20ft GP
Type :
Carton Printer Slotter Die Cutter Machine
Automatic grade :
Semi-Automatic
Voltage :
220V/380V/440V
Usage :
Paper Printer
Warranty :
1 Year
Application :
Carton Box Printing
Description

Semi Automatic Corrugated Box Printing Slotting For Making Machine

Machine configuration

1. The machine composed with printer, slotter parts, can process 1-10mm cardboard printing creasing slotting etc. procedures.

2. Wall board material is casting iron, thickness 40mm, will not be out of shape. Spot facing work adopt high precision display processing, center distance of holes can reach ±0.01mm.

3. Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears.

4. Adopt the planetary gears phase for the printer slotter driving structure, precise and durable. Phase adjustment adopt Taiwan motor and high quality sensor control, precision is ±0.1mm, exact and reliable.

5. Ink guiding system adopt high precision anilox roller with independent motor for ink distribution, high quality diaphragm pump supply ink, can adjust the ink volume randomly, improved the ink supplying more average.

Service

Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers.

Index Data

Model max. paper
feeding size		 effective printing
size		 the thickness
of the plate		 slotting width*
Max.slotting depth		 working
speed		 Min.paper
feeding size		 roller
diameter
JCS-LT-2000 1900*900mm 1700*900mm 4-7mm 7*220mm 80 300*600mm 300
JCS-LT-2200 2100*900mm 1900*900mm 4-7mm 7*220mm 80 300*600mm 300
JCS-LT-2400 2300*1250mm 2100*1250mm 4-7mm 7*300mm 60 350*600mm 405
JCS-LT-2600 2500*1250mm 2300*1250mm 4-7mm 7*300mm 60 350*600mm 405
JCS-LT-2600 2500*1470mm 2300*1470mm 4-7mm 7*350mm 60 400*600mm 480
JCS-LT-2800 2700*1470mm 2500*1470mm 4-7mm 7*350mm 60 400*600mm 480
JCS-LT-2800 2700*1600mm 2500*1600mm 4-7mm 7*400mm 60 400*600mm 530
JCS-LT-3000 2900*1600mm 2700*1600mm 4-7mm 7*400mm 60 400*600mm 530
JCS-LT-3000 2900*1800mm 2700*1800mm 4-7mm 7*450mm 50 450*600mm 600
JCS-LT-3300 3200*1800mm 3000*1800mm 4-7mm 7*450mm 50 450*600mm

600
